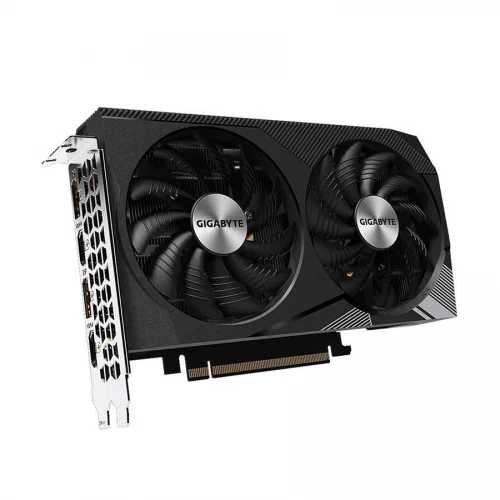

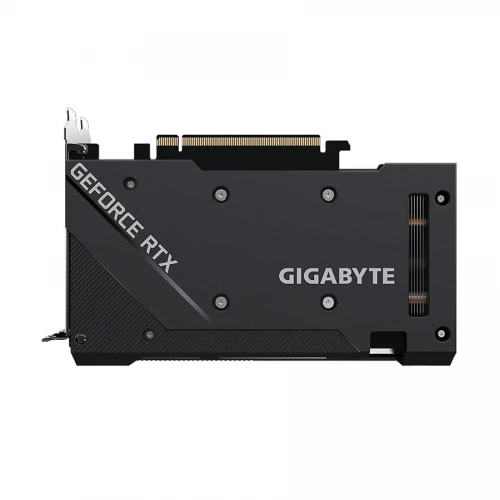

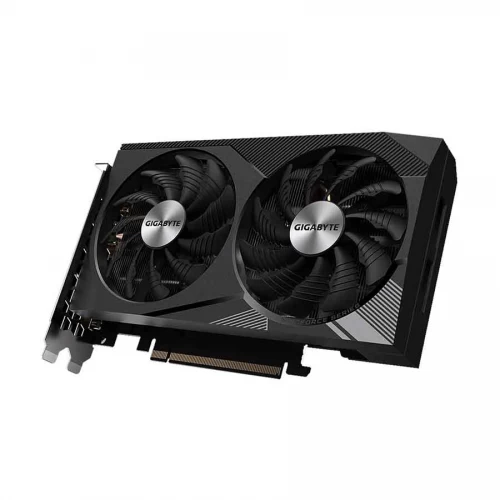

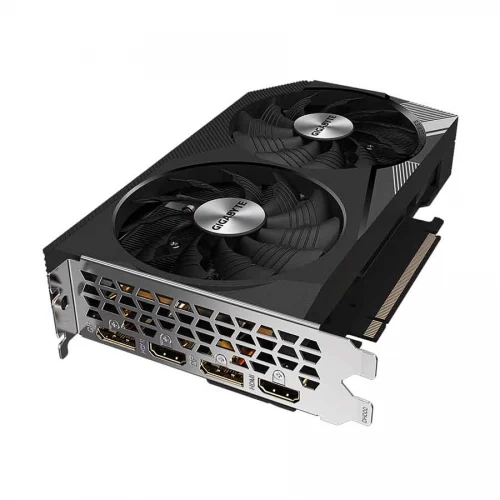

Gigabyte GeForce RTX 3060 GAMING OC 8G 8GB GDDR6 Graphics Card

Brand

Gigabyte

Chipset

NVIDIA GeForce

Chipset Model

GeForce RTX 3060

Model

Gigabyte GeForce RTX 3060 GAMING OC 8G

Part No

GV-N3060GAMING OC-8GD

CUDA Core / Stream Processors

3584 ( Cuda)

Engine Clock

1807 MHz

Base Engine Clock Speed

Not Specified

Boost Engine Clock Speed

Not Specified

Memory Clock

15000 MHz

Capacity (GB/TB)

8GB

Memory Bus

128 Bit

Memory Bandwidth

240 GB/s

Memory Type

GDDR6

Interface(s)

PCI-E 4.0

Interface Bus

Not Specified

DirectX Support

12 Ultimate

OpenGL Support

4.6

HDCP Support

Not Specified

Supported Operating System

Windows 10

Graphics Resolution Max.

7680 x 4320

Multi Display Capability

Quad Display

VGA Port

No

DVI Port

No

HDMI Port

2

Display Port

2

Power Consumption

Not Specified

Recommended PSU

550W

Power Connectors

1 x 8-Pin

Card Dimension

198 x 121 x 39mm

Cooler Type

Not Specified

Cooling Fan

Dual

PCB Form

ATX

Lighting

No

RGB Effects

No

Package Contents

Not Specified

Warranty Details

2 year

Series

RTX 3000

Others

The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The GIGABYTE Alternate Spinning is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

Specialty

NVIDIA Ampere Streaming Multiprocessors, 2nd Generation RT Cores, 3rd Generation Tensor Cores, Powered by GeForce RTX 3060, Integrated with 8GB GDDR6 128-bit memory interface, WINDFORCE 2X Cooling System with alternate spinning fans Screen cooling,200 mm compact card size

Warranty

2 Year

Country Of Origin

Taiwan

Made in/ Assemble

China

Features of Gigabyte GeForce RTX 3060 GAMING OC 8G Graphics Card In Bangladesh

Brand - Gigabyte, Chipset Vendor - NVIDIA GeForce, Series - RTX 3000, Chipset Model - GeForce RTX 3060, Model - Gigabyte GeForce RTX 3060 GAMING OC 8G, CUDA Core / Stream Processors - 3584 ( Cuda), Engine Clock - 1807 MHz, Base Engine Clock Speed - Not Specified, Boost Engine Clock Speed - Not Specified, Memory Clock - 15000 MHz, Memory Size - 8GB, Memory Bus - 128 Bit, Memory Bandwidth - 240 GB/s, Memory Type - GDDR6, Interface - PCI-E 4.0, Digital Max Resolution - 7680 x 4320, DirectX - 12 Ultimate, OpenGL - 4.6, VGA Port - No, DVI Port - No, HDMI Port - 2, Displayport - 2, Power Consumption - Not Specified, Recommended PSU - 550W, Power Connectors - 1 x 8-Pin, Multi Display Capability - Quad Display, Card Dimension - 198 x 121 x 39mm, HDCP Support - Not Specified, Cooler Type - Not Specified, Cooling Fan - Dual Fan, PCB Form - ATX, Lighting - No, RGB Effects - No, Supported OS - Windows 10, Others - The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation. The GIGABYTE Alternate Spinning is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure., Specialty - NVIDIA Ampere Streaming Multiprocessors, 2nd Generation RT Cores, 3rd Generation Tensor Cores, Powered by GeForce RTX 3060, Integrated with 8GB GDDR6 128-bit memory interface, WINDFORCE 2X Cooling System with alternate spinning fans Screen cooling,200 mm compact card size, Part No - GV-N3060GAMING OC-8GD, Package Contains - Not Specified, Warranty - 2 Year, Country of Origin - Taiwan, Made in/ Assemble - China
