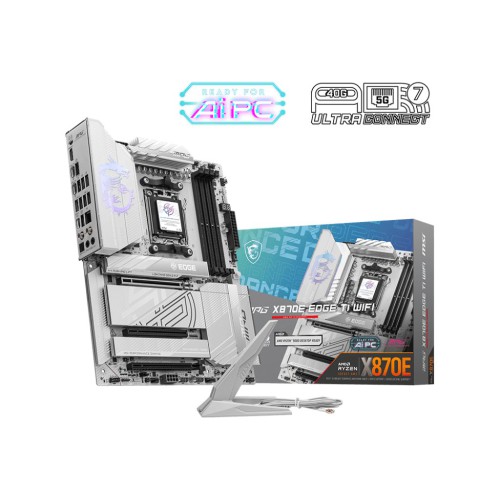

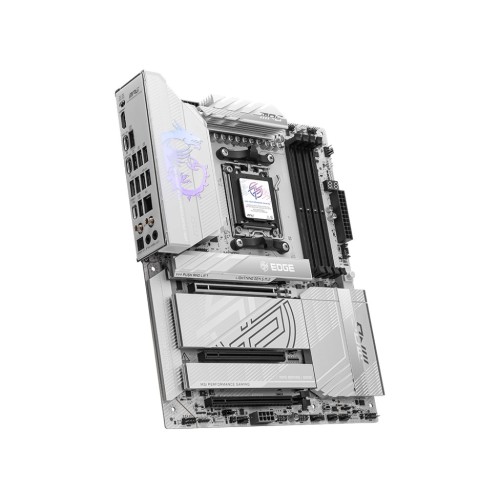

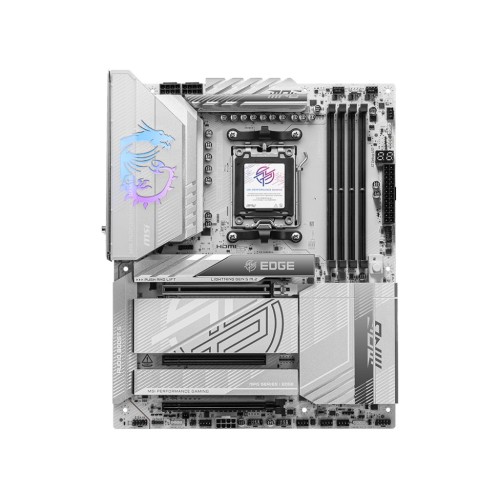

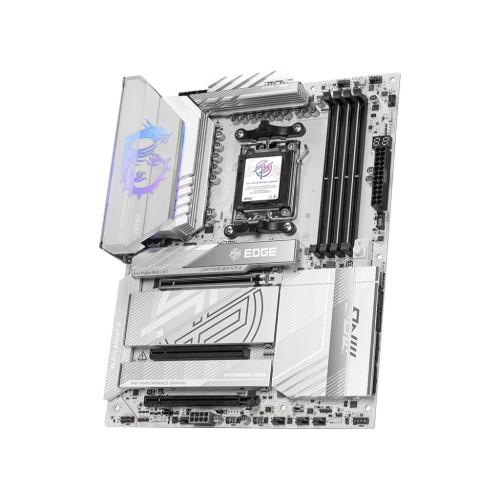

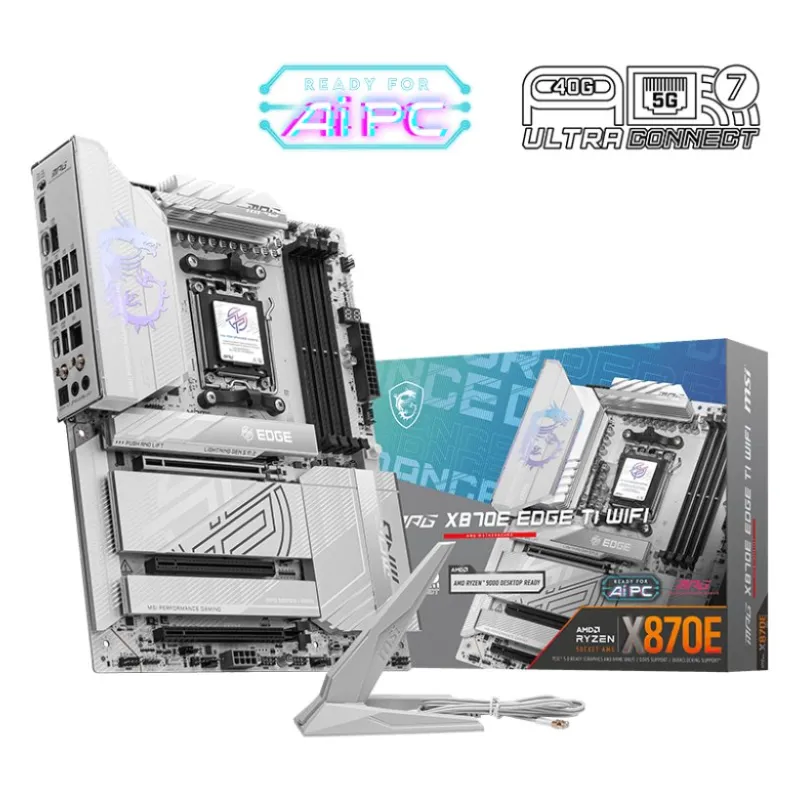

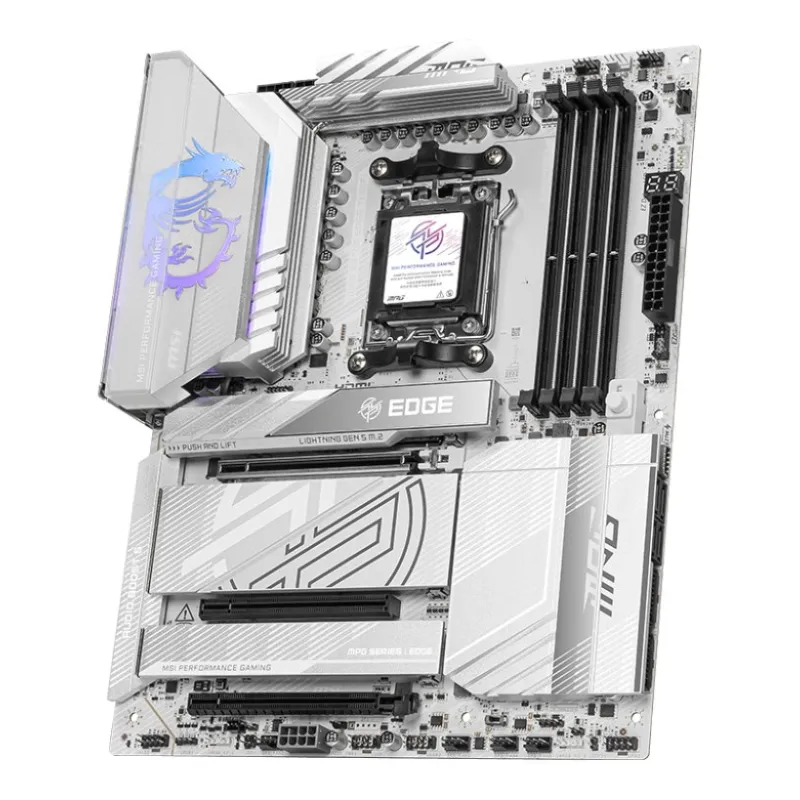

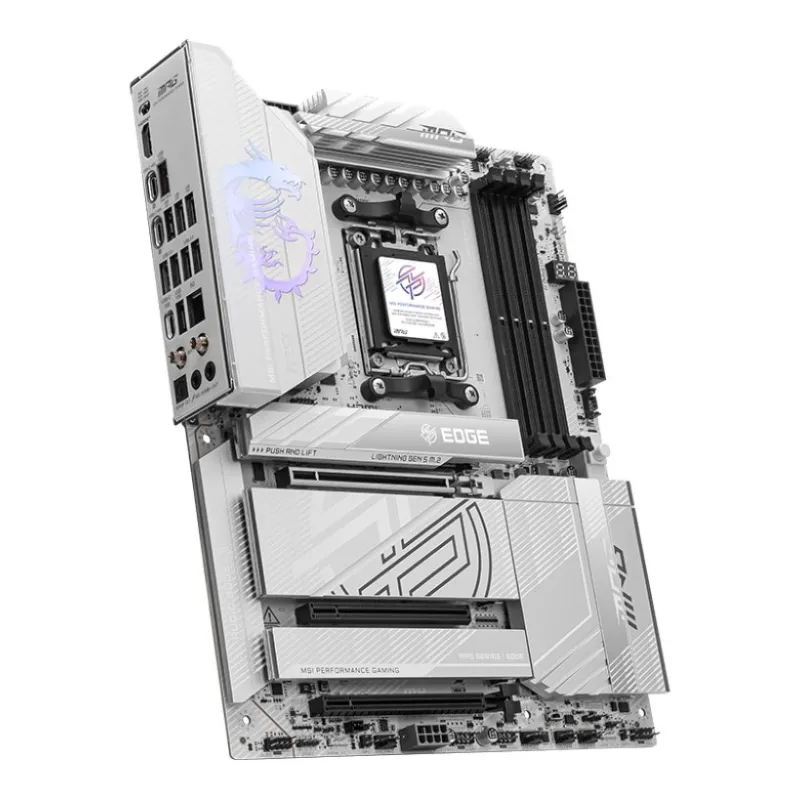

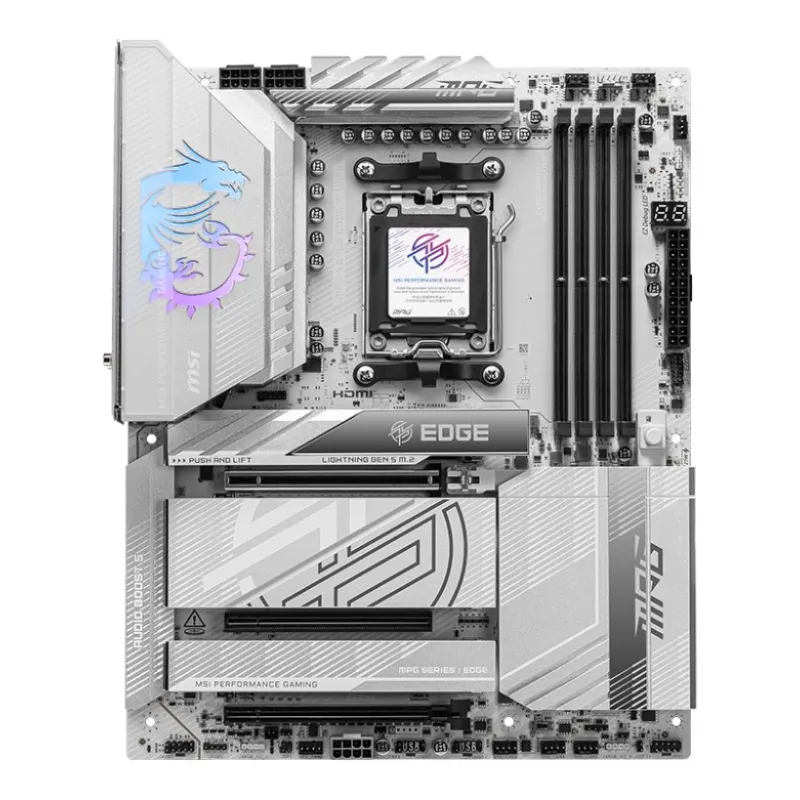

MSI MPG X870E EDGE TI WIFI DDR5 AMD AM5 ATX Motherboard

Up Coming

MSI MPG X870E EDGE TI WIFI DDR5 AMD AM5 ATX Motherboard

0 reviews - Write a review

Price:

Regular Price: 0৳

Stock : Up Coming

Brand: MSI

Model: MPG X870E EDGE TI WIFI

Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors
Supported RAM: 4x DDR5, 8400+MT/s (OC), Max 256GB
Graphics Output: 2x Type-C DisplayPort, 1x HDMI,
Features: 1x Realtek 8126 5G LAN, Wi-Fi 7 Solution

0৳

Cash Discount Price

Online / Cash Payment

0৳/month

Regular Price: 0৳

EMI Starting from 0৳/month.
Click here to check EMI Policy

Qty

Up Coming

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Brand & Model
Brand	MSI
Model	MPG X870E EDGE TI WIFI
Supported CPU
CPU Type	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipsets
Chipset	AMD X870E
Memory
Memory Type	DDR5
Number of Memory Slots	4
Supported Memory	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory	256GB
Graphics
Graphics	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Expansion Slots
Expansion Slots	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Storage
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID	•Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Network
LAN	1x Realtek® 8126 5G LAN
Wireless Module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth	Supports Bluetooth® 5.4**, MLO, 4KQAM
Ports & Connectors

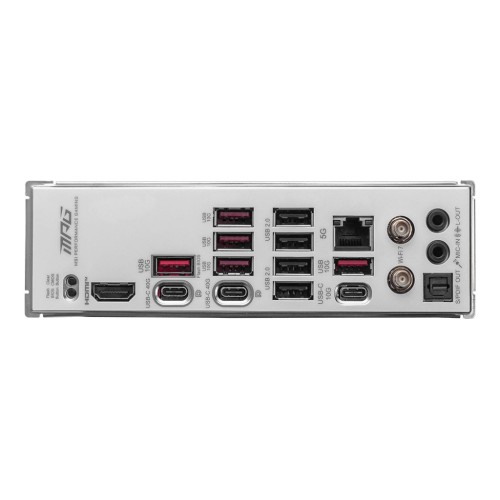

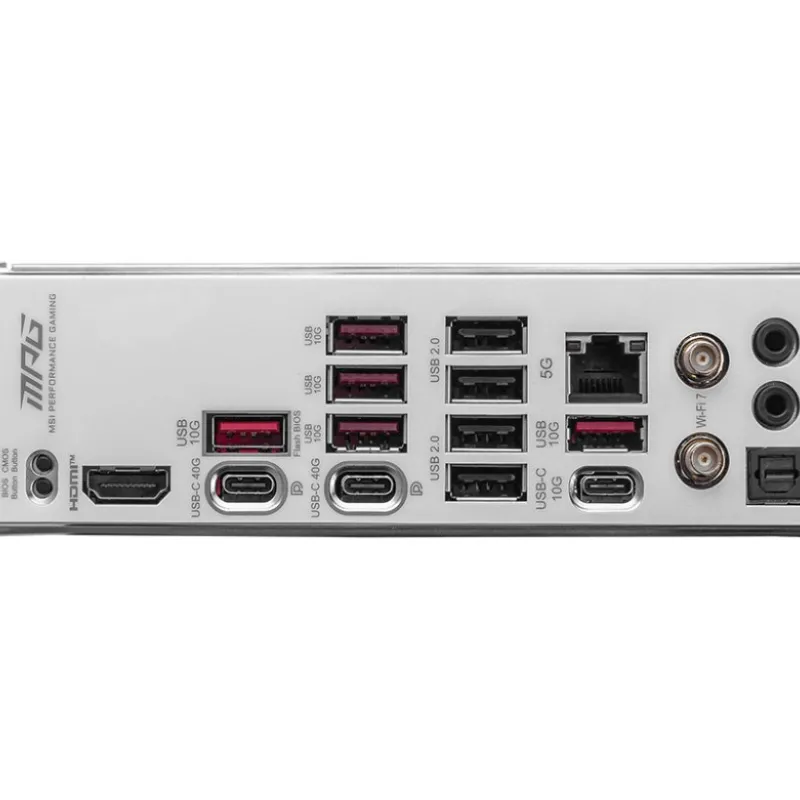

USB Ports	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Form Factor
Form Factor	ATX 243.84mmx304.8mm
Others
Bundled Software	Support for Windows® 11 64-bit
Unique Feature	4x EZ Debug LED 1x EZ Digi-Debug LED
Warranty
Warranty	3 years

MSI MPG X870E EDGE TI WIFI DDR5 AMD AM5 ATX Motherboard

The MSI MPG X870E Edge Ti WiFi is a high-performance motherboard designed for gamers and PC enthusiasts. It supports AMD Ryzen 9000, 8000, and 7000 series desktop processors with the AM5 socket. The motherboard features four DDR5 memory slots, supporting up to 192GB of RAM with speeds up to 8400+ MHz (OC). It includes multiple expansion slots, including PCIe 5.0 x16 and PCIe 4.0 x16, as well as four M.2 slots for versatile storage options. Connectivity is robust with 5G LAN, Wi-Fi 7, and multiple USB ports. Advanced cooling solutions like the extended heatsink and M.2 Shield Frozr ensure stable performance, making it an excellent choice for building a powerful and reliable gaming rig.
