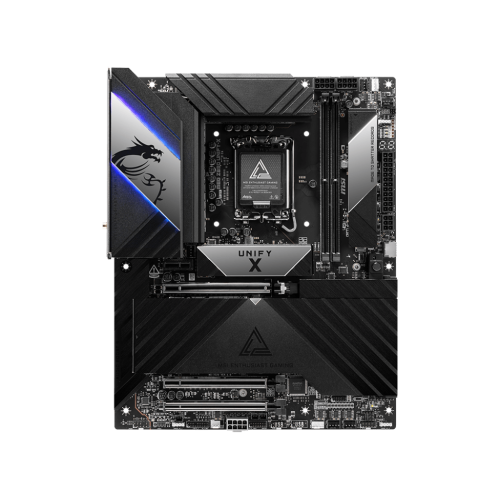

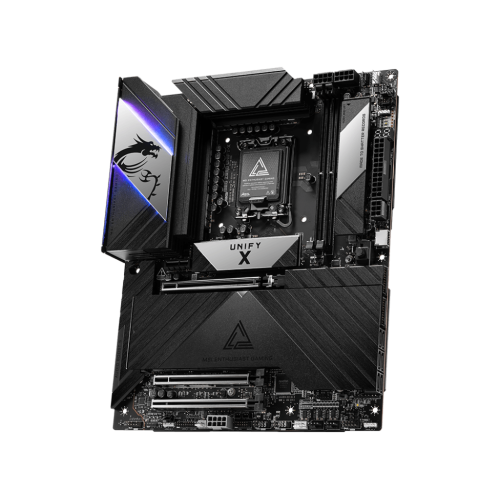

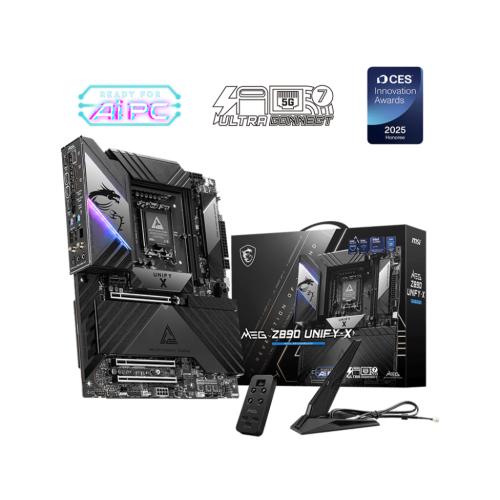

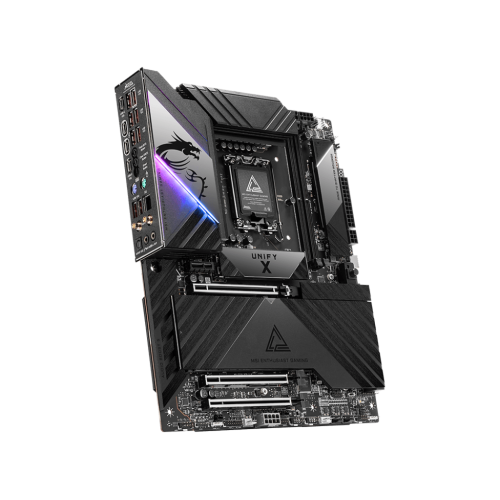

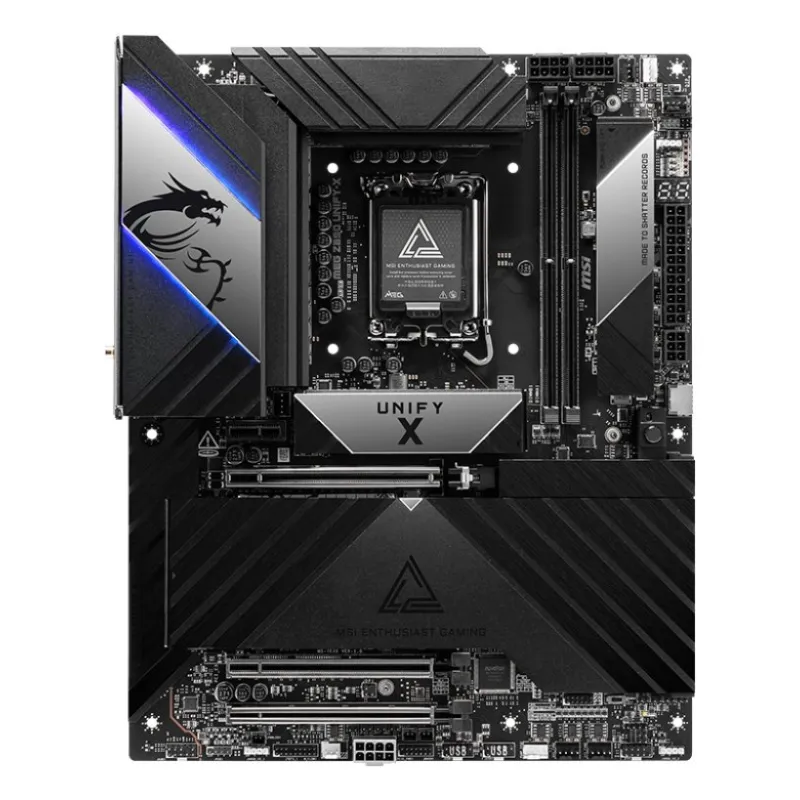

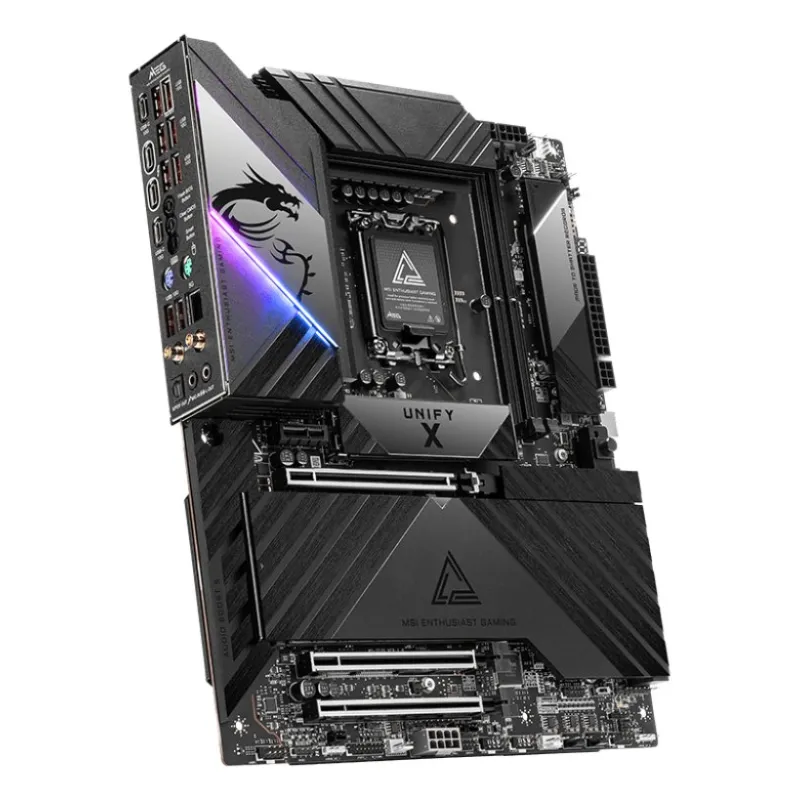

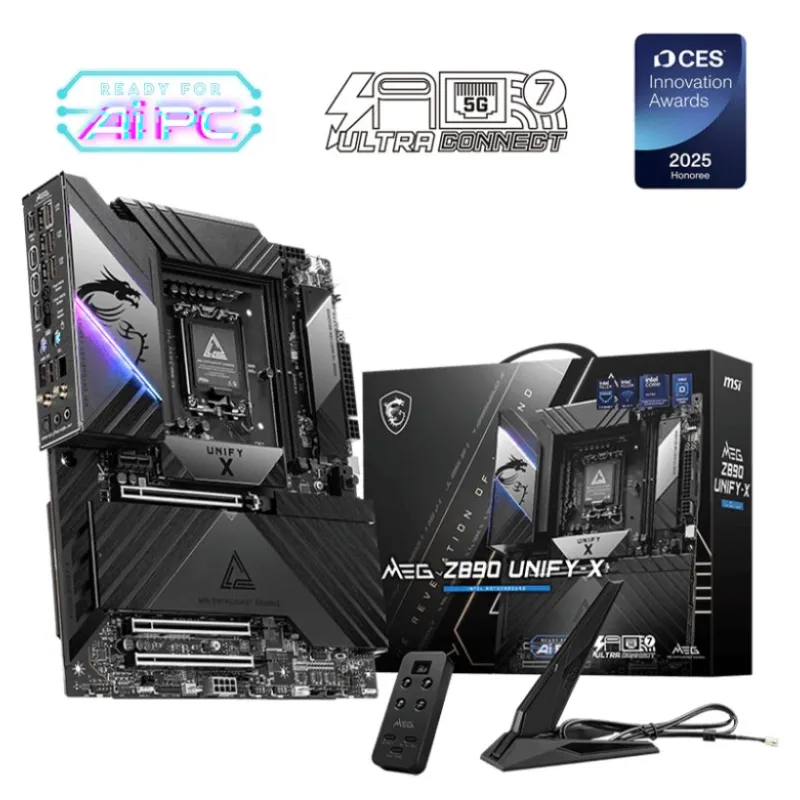

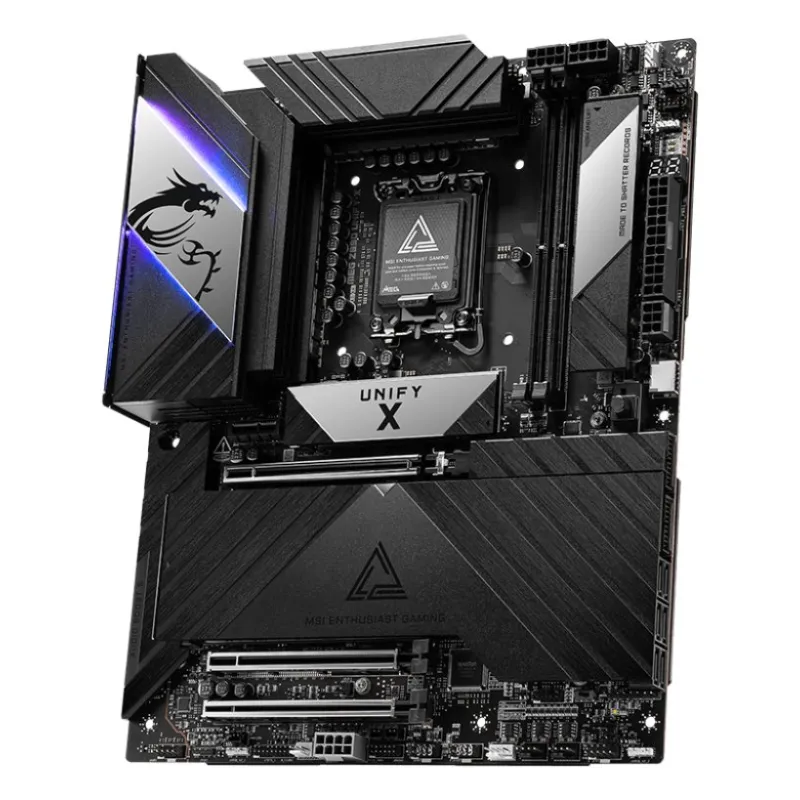

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

Save: 0৳

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

0 reviews - Write a review

Price: 86,500৳

Regular Price: 0৳

Stock : In Stock

Brand: MSI

Model: MEG Z890 UNIFY-X

Model: MEG Z890 UNIFY-X
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 2x DDR5, Max 128GB 9600 - 6400 (OC) MT/s
Graphics Output: 2x Type-C DisplayPort

86,500৳

Cash Discount Price

Online / Cash Payment

0৳/month

Regular Price: 0৳

EMI Starting from 0৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2)
Chipset	INTEL Z890
Form Factor	ATX (243.84mmx304.8mm)
Audio	Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot. ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.
M.2 Socket	6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. * Please refer to the manual for M.2 SSD heatsink restrictions.
Memory
Type	DDR5
Slots	2x DDR5 UDIMM, Maximum Memory
Supported Memory	Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s
Maximum Memory	128GB
Graphics
Graphics	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

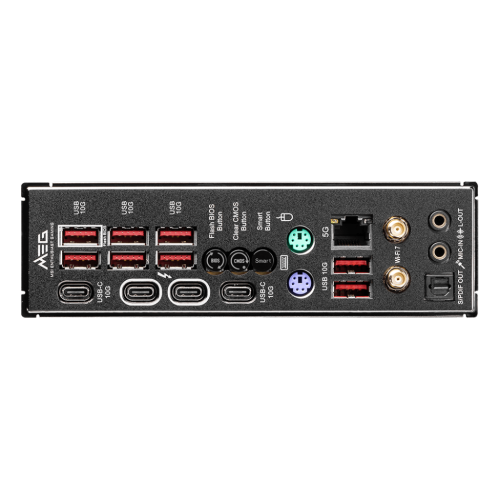

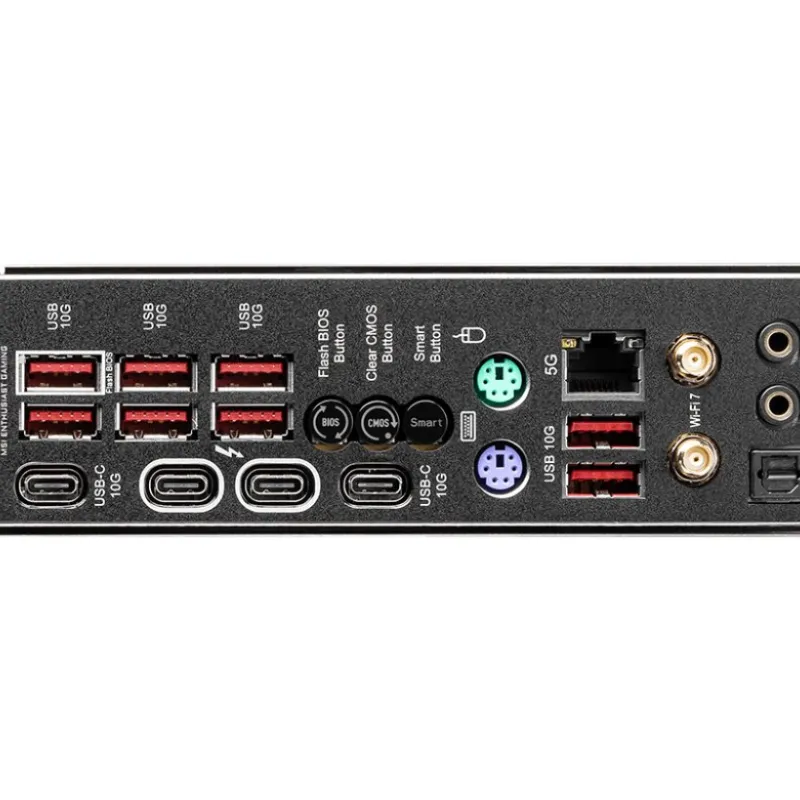

Connector & Ports
Display Port (s)	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
USB (s)	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN Port (s)	1x Intel® Killer E5000B 5G LAN
Wireless Communication module	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Supported Storage	6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 6x SATA 6G * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. * Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Manufacturing Warranty	3 year warranty

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

The MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard is a high-performance motherboard that supports Intel Core Ultra CPUs (Series 2) and features an Intel Z890 chipset. As one of the most powerful MSI MEG Z890 UNIFY-X ATX Motherboards, it supports DDR5 memory with a maximum capacity of 128GB and boasts memory speeds ranging from 9600 MT/s (OC) to 6400 MT/s (JEDEC). The MSI MEG Z890 UNIFY-X Motherboard features dual-channel, non-ECC, unbuffered memory and supports Intel XMP 3.0 and memory overclocking. This MSI MEG Z890 UNIFY-X motherboard has several PCIe slots, including three PCIe x16 slots (Gen 5.0 and Gen 4.0), one PCIe x1, and six M.2 slots that enable PCIe 5.0 x4 for lightning-fast storage choices. Furthermore, the MSI MEG Z890 UNIFY-X motherboard has six SATA 6G ports, providing enough storage space. It has two Type-C DisplayPort with Thunderbolt 4 connectors, which allow 8K monitors and high-resolution output at up to 120Hz. The connectivity choices are extensive, with two Thunderbolt 4 connections capable of transferring data at up to 40Gbps and various USB interfaces, including 10Gbps Type-A and Type-C. The MSI Motherboard also has an Intel Killer E5000B 5G LAN and a pre-installed Intel Killer BE1750x Wi-Fi 7 module, which can offer rates of up to 5.8 Gbps. The Realtek ALC4080 Codec supports 7.1-channel USB High-Performance Audio at 32-bit/384 kHz. With RAID support for both SATA and M.2 NVMe devices, this motherboard is ideal for high-end gaming, multimedia production, and professional applications. The MSI MEG Z890 UNIFY-X Motherboard is compatible with Windows 11 64-bit, making it an excellent choice for power users.

Reviews

What is the price of MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard in Bangladesh?

The latest price of MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard in Bangladesh is 86,500৳ You can buy the MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard at best price from our website or visit any of our showrooms.
