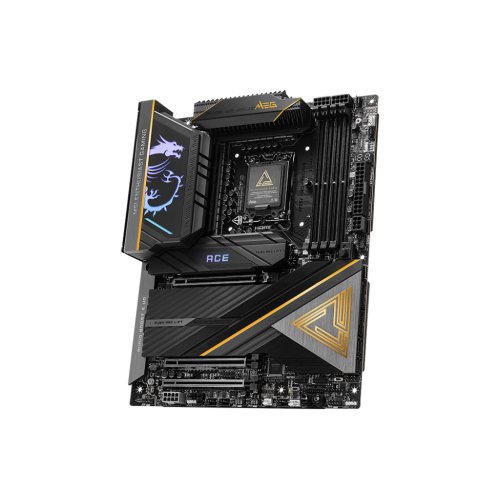

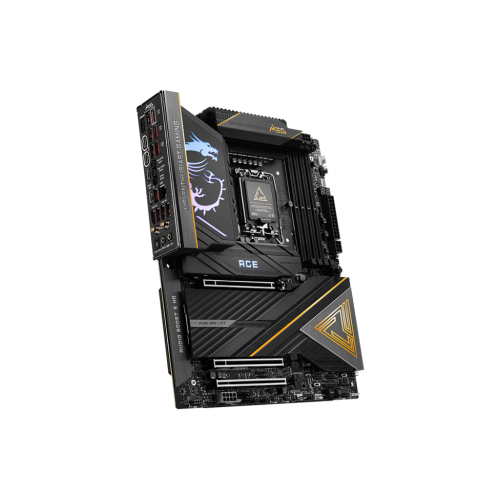

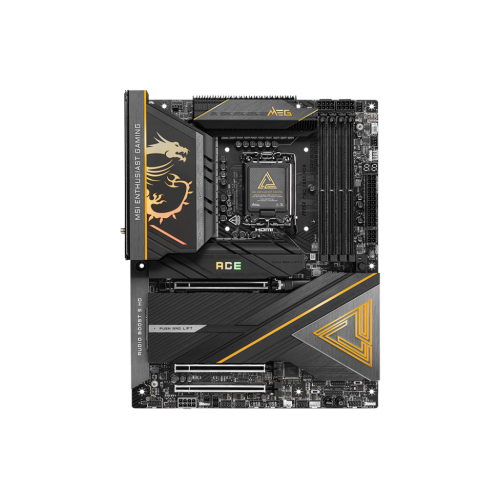

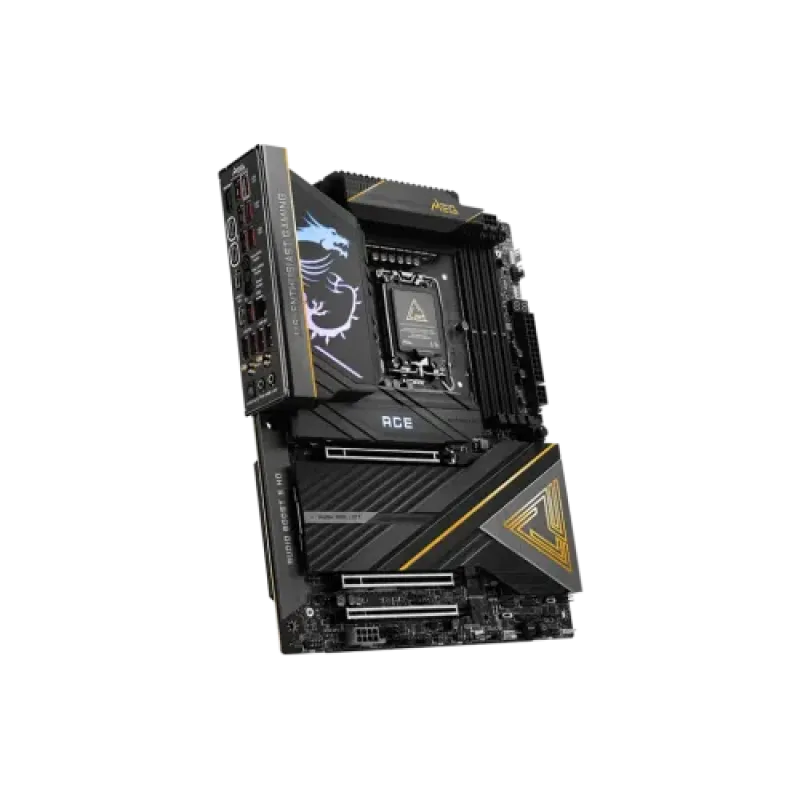

MSI MEG Z890 ACE LGA 1851 ATX Motherboard

MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
Out Of Stock
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
MSI MEG Z890 ACE LGA 1851 ATX Motherboard
0 reviews - Write a review
  • Price: 103,900৳
  • Regular Price: 108,500৳
  • Stock : Out Of Stock
  • Brand: MSI
  • Model: MEG Z890 ACE

    • Key Features

    • Model: MEG Z890 ACE
    • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
    • Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
    • Graphics Output: 1x HDMI, 2x Type-C DisplayPort
    • Features: 5x M.2, Intel Wi-Fi 7
    Out Of Stock
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU Supports Intel Core Ultra Processors (Series 2)
    Chipset INTEL Z890
    Form Factor ATX (243.84mmx304.8mm)
    Audio Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA
    7.1-Channel USB High-Performance Audio
    Supports S/PDIF output
    Supports up to 32-Bit/384 kHz playback on front panel
    Expansion Slots
    PCI 3x PCI-E x16 slot
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

    • PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
    • PCI_E2 support manual BIOS adjustment to X4+X4

    * PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device.
    ** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot.
    M.2 Socket 5x M.2
    Memory
    Type DDR5
    Slots 4x DDR5 UDIMM, Maximum Memory
    Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 9200+ MT/s
    • 1DPC 2R Max speed up to 7200+ MT/s
    • 2DPC 1R Max speed up to 4800+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s
    Maximum Memory 256GB
    Graphics
    Graphics 1x HDMI™
    Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
    2x Type-C DisplayPort
    Thundebolt™ 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*

    * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

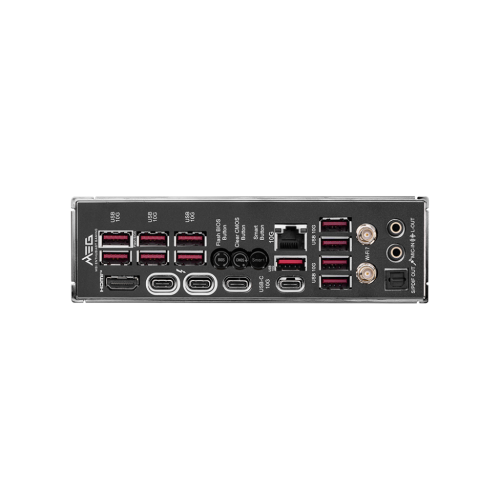

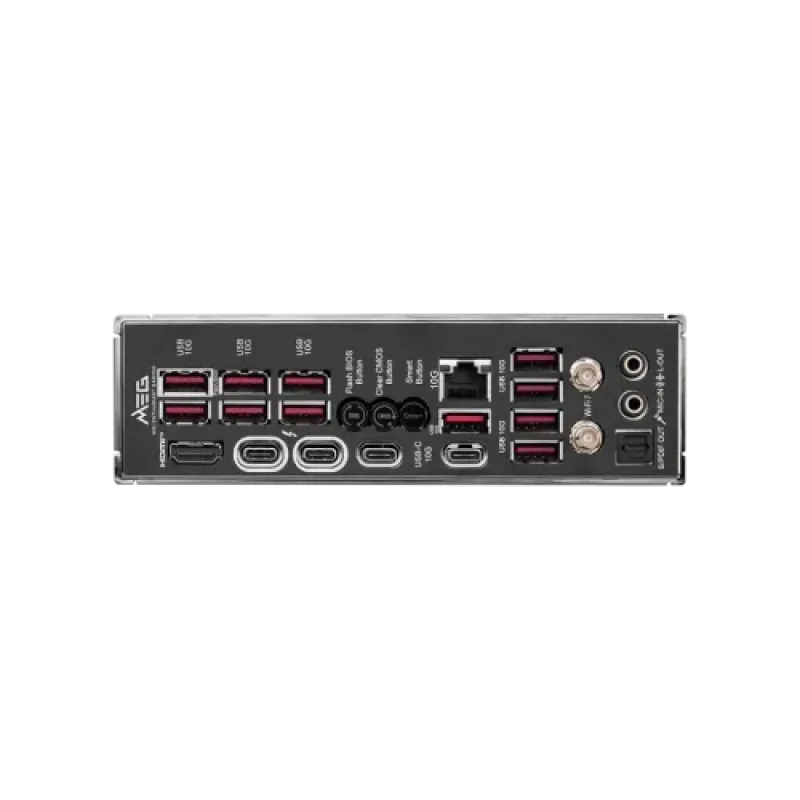

    Connector & Ports
    HDMI 1x HDMI 21
    Display Port (s) 2x Type-C DisplayPort
    Thundebolt 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*
    USB (s) 4x USB 2.0 (Front)
    4x USB 5Gbps Type A (Front)
    11x USB 10Gbps Type A (Rear)
    2x USB 10Gbps Type C (Rear)
    1x USB 20Gbps Type C (Front)
    * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
    LAN Port (s) 1x Marvell® AQC113CS 10Gbps LAN
    Wireless Communication module Intel Killer BE1750x Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Supports Bluetooth 5.4**, MLO, 4KQAM
    Supported Storage 5x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
    4x SATA 6G

    * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
    ** Please refer to the manual for M.2 SSD heatsink restrictions.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    Audio 1x Front Audio (JAUD)
    Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x Front Type-C Quick Charge Connector(PD_PWR1)
    1x CPU Fan
    2x Combo Fan (Pump_Sys Fan)
    5x System Fan
    1x EZ Conn-header (JAF_2)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Water Flow connector
    1x Slow Mode Booting Jumper(JSLOW)
    1x Front Audio (JAUD)
    2x Thermal Sensor connectors(T_SEN)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    V-check point
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 20Gbps Type C ports
    TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
    Others
    Special Features LED FEATURE
    4x EZ Debug LED
    1x EZ Digit Debug LED
    1x EZ LED Control switch
    Warranty Information
    Manufacturing Warranty 3 year warranty


    MSI MEG Z890 ACE LGA 1851 ATX Motherboard

    The MSI MEG Z890 ACE LGA 1851 ATX Motherboard is a powerhouse designed to unleash the full potential of your gaming and AI PC builds. It supports the latest Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket and cutting-edge DDR5 memory, offering dual-channel speeds of up to 9200+ MT/s (OC) for unparalleled performance. Equipped with a 24+2+1+1 Duet Rail Power System and 110A SPS, it ensures stable and efficient power delivery, perfect for overclocking enthusiasts. Advanced connectivity options include ultra-fast Wi-Fi 7, 5G LAN, and high-speed Thunderbolt ports, along with multiple USB 3.2 Gen 1 & 2 ports for versatile connectivity. The motherboard is future-ready with support for PCIe 5.0 and M.2 Gen5 slots, accommodating the latest and future generations of GPUs and storage devices. Built with an 8-layer PCB made of 2oz thickened copper and server-grade materials, the MEG Z890 ACE offers durability and reliability for long-term use. Its advanced cooling solution, featuring multiple heatsinks and fan headers, keeps your system running cool even under heavy loads. Designed with user-friendly features like pre-installed I/O shielding and debug LEDs, it makes the building process easier and more efficient. Whether you're a gamer, content creator, or AI enthusiast, the MSI MEG Z890 ACE LGA 1851 ATX Motherboard provides the ultimate platform for your high-performance PC needs.


    Cutting-Edge LGA 1851 Socket and Versatile Ports

    The MSI MEG Z890 ACE features the latest LGA 1851 socket, designed to support Intel® Core™ Ultra Processors (Series 2). This new socket ensures compatibility with the most advanced CPUs, providing exceptional performance and efficiency. The motherboard is equipped with a variety of ports, including multiple USB 3.2 Gen 1 & 2 ports, Thunderbolt 4, and 5G LAN, ensuring ultra-fast data transfer and connectivity. Additionally, it supports up to 256GB of DDR5 memory across four DIMM slots, allowing for exceptional multitasking capabilities and future-proofing your system.


    Unmatched Speed and Advanced Technology

    Embracing the latest technology, the MEG Z890 ACE offers unparalleled speed and performance. It supports DDR5 memory with dual-channel speeds of up to 9200+ MT/s (OC), ensuring blistering performance for gaming and AI applications. The motherboard also features PCIe 5.0 and M.2 Gen5 slots, ready to accommodate the latest GPUs and storage devices. With advanced cooling solutions, including multiple heatsinks and fan headers, the MEG Z890 ACE keeps your system running cool even under heavy loads. The inclusion of Wi-Fi 7 and 10G Super LAN further enhances connectivity, making this motherboard a top choice for high-performance PC builds.

    Write a review

    Please login or register to review

    What is the price of MSI MEG Z890 ACE LGA 1851 ATX Motherboard in Bangladesh?

    The latest price of MSI MEG Z890 ACE LGA 1851 ATX Motherboard in Bangladesh is 103,900৳ You can buy the MSI MEG Z890 ACE LGA 1851 ATX Motherboard at best price from our website or visit any of our showrooms.
