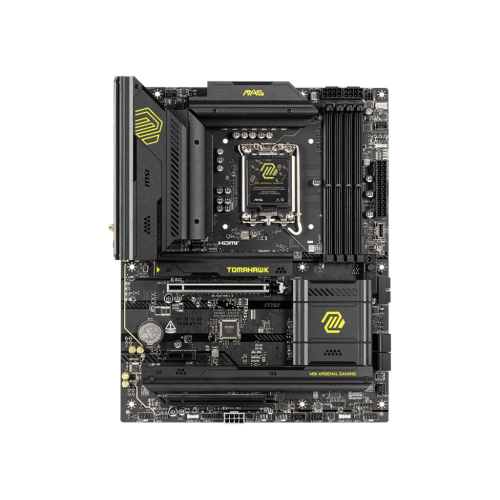

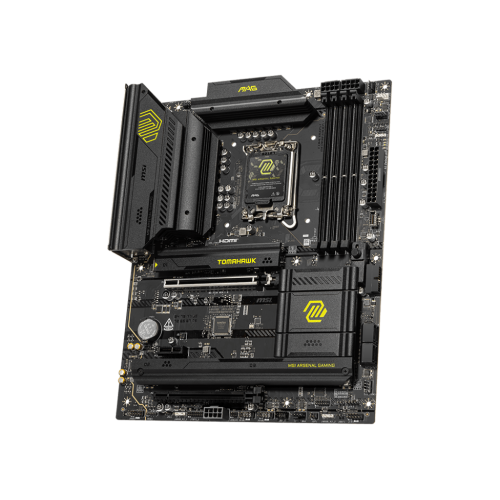

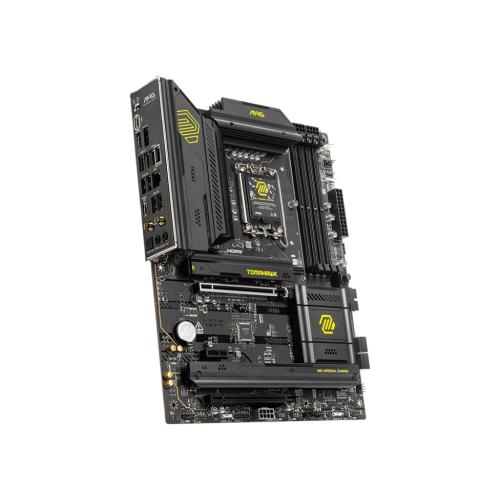

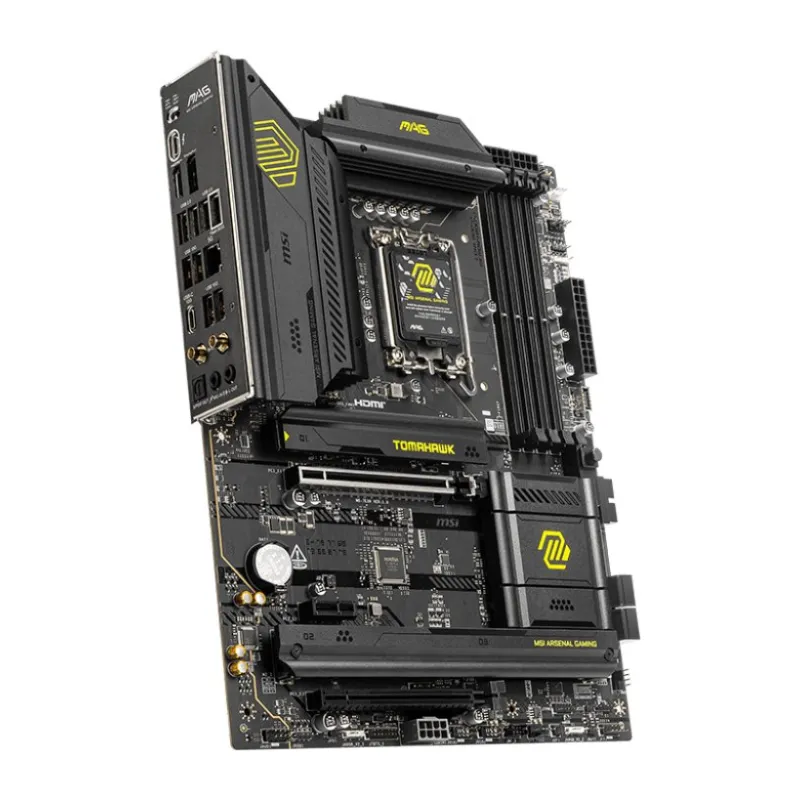

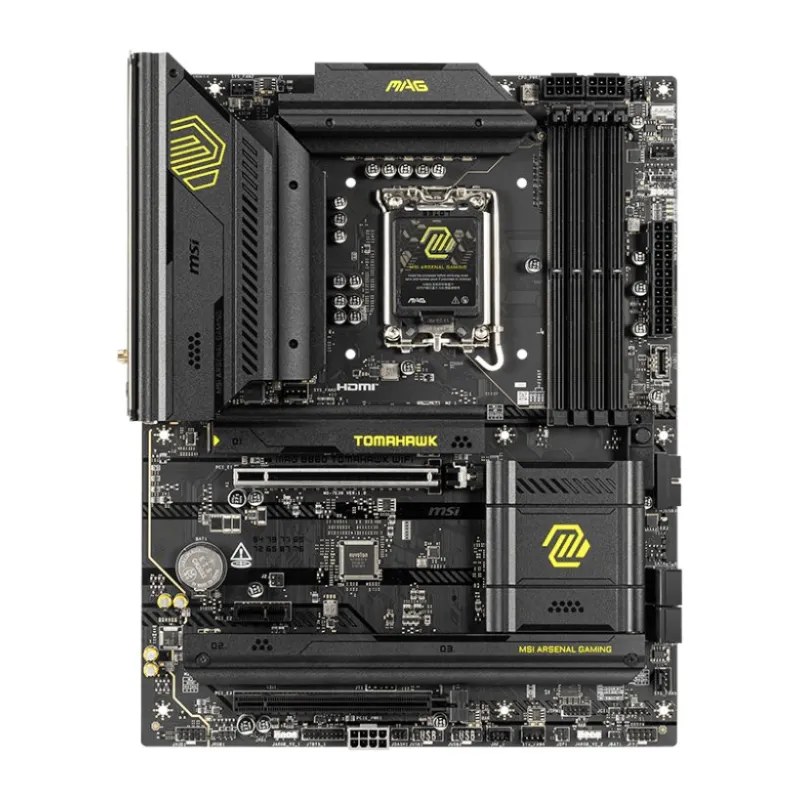

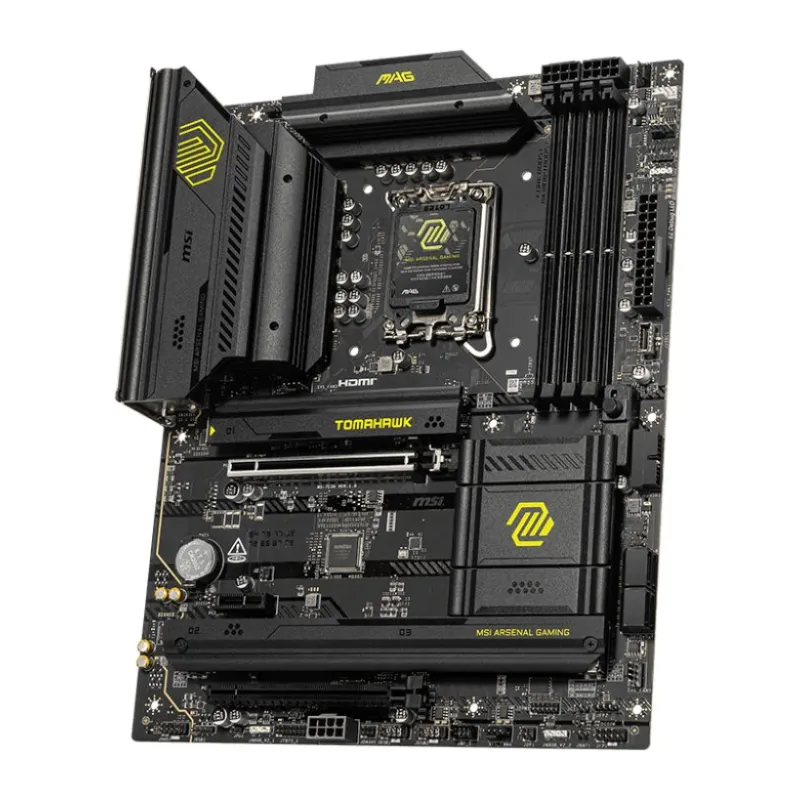

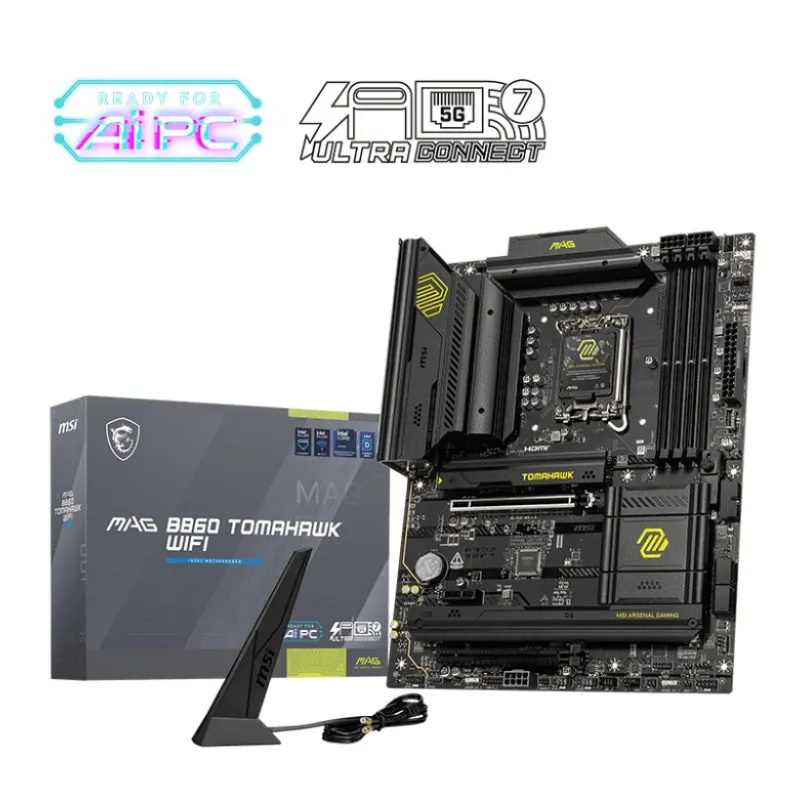

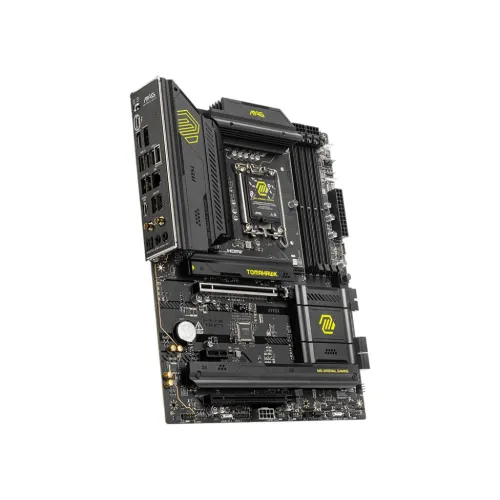

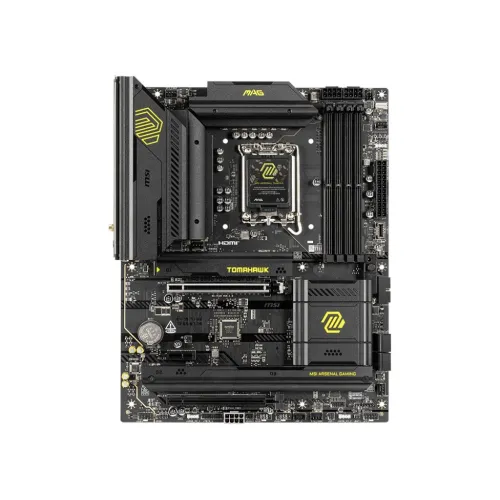

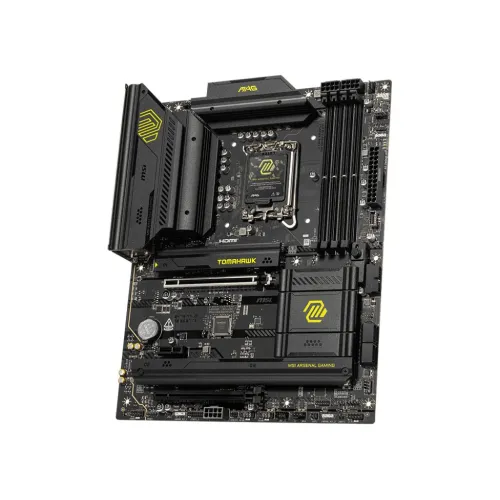

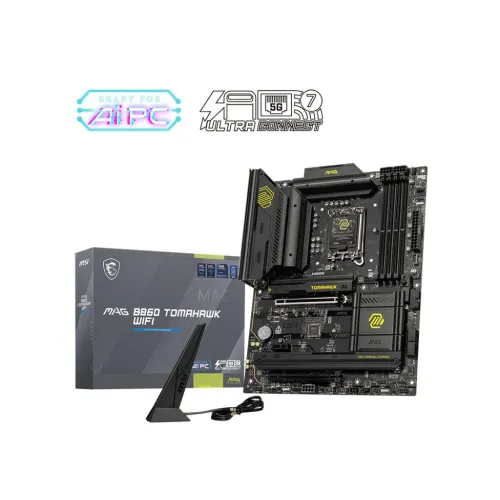

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

Save: 4,300৳

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

0 reviews - Write a review

Price: 34,200৳

Regular Price: 38,500৳

Stock : In Stock

Brand: MSI

Model: MAG B860 TOMAHAWK WIFI

Model: MAG B860 TOMAHAWK WIFI
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort

34,200৳

Cash Discount Price

Online / Cash Payment

7,404৳/month

Regular Price: 38,500৳

EMI Starting from 7,404৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset	INTEL B860
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Memory
Type	DDR5
Slots	4x UDIMM
Supported Memory	Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory	256GB
Graphics
Graphics	1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

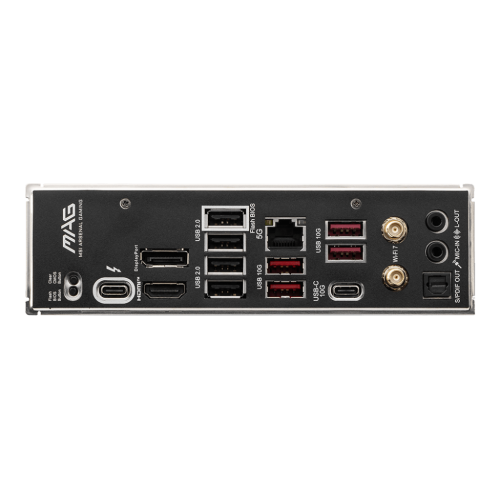

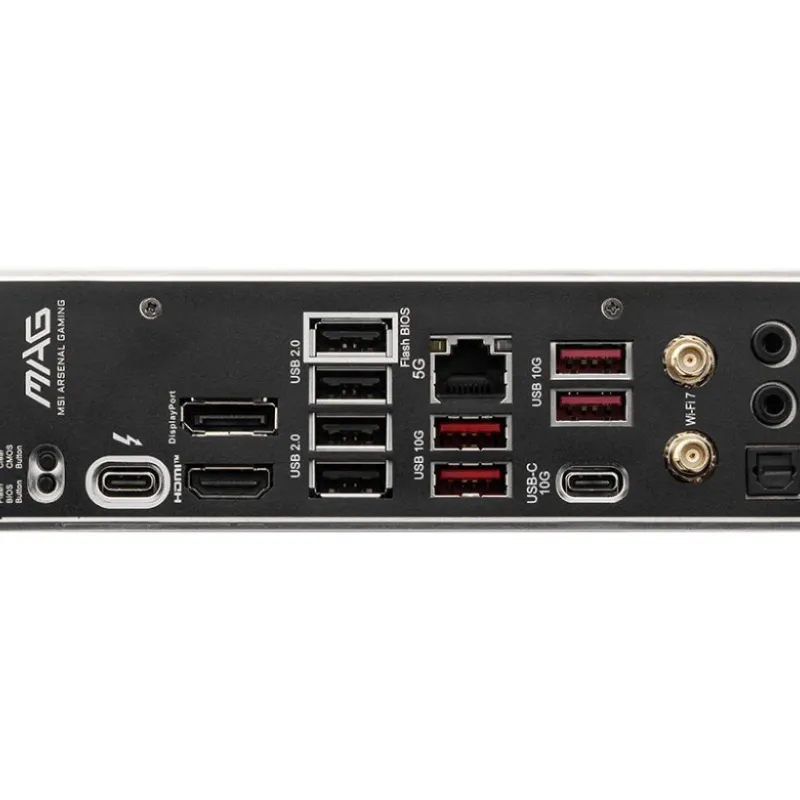

Connector & Ports
HDMI	1x HDMI 2.1 with FRL
Display Port (s)	1x DisplayPort 1.4 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

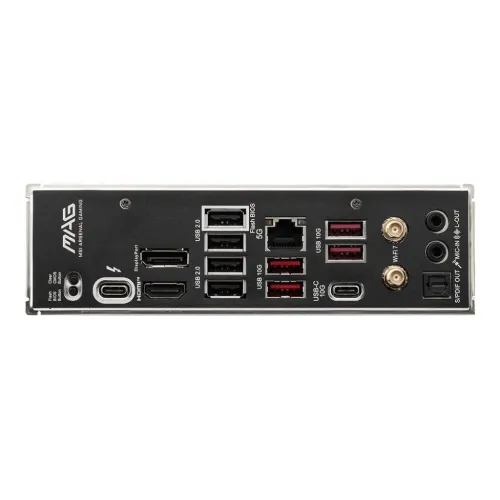

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 40Gbps Type C (Rear)
LAN Port (s)	Intel Killer E5000 5Gbps LAN
Wireless Communication module	Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty	3 Year

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard

The MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX motherboard is a high-performance option that supports Intel Core Ultra Processors (Series 2) with LGA 1851 sockets. It has a maximum capacity of 256GB and supports DDR5 memory with dual-channel speeds of up to 9200+ MT/s (overclocked). The sturdy 12+1+1+1 Duet Rail Power System of the MSI Intel Core Ultra Series motherboard, which is backed by two 8-pin CPU power connectors, Core Boost, Memory Boost, and a 6-layer PCB composed of server-grade materials, provides outstanding stability. The Frozr Guard system, which consists of an expanded heatsink, premium thermal pads, and the EZ M.2 Shield Frozr II, ensures improved thermal performance for this MSI MAG B860 TOMAHAWK WIFI DDR5 motherboard. User-friendly features like EZ PCIe Release, EZ M.2 Clip II, and an EZ Antenna are incorporated for easy do-it-yourself construction. With a PCIe 5.0 slot, compatibility for Lightning Gen 5 x4 M.2, and ultra-connectivity through Thunderbolt 4 ports, Intel Killer 5G LAN, and Wi-Fi 7, the MSI MAG B860 TOMAHAWK WIFI LGA1851 motherboard provides an unmatched networking and data transfer speed for gaming. Immersive, studio-caliber sound quality is made possible by Audio Boost technology. With several onboard graphics options, including as HDMI 2.1, DisplayPort 1.4, and Thunderbolt-enabled Type-C DisplayPort, this MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX motherboard can support resolutions up to 8K at 60Hz or 4K at 120Hz. With three M.2 slots, four SATA 6G ports, and support for RAID 0, 1, 5, and 10, this MSI DDR5 motherboard provides a great deal of expandability. With front and rear USB ports, including 40Gbps USB Type-C, this MSI ATX motherboard also has extensive USB connectivity, guaranteeing quick and flexible communications. Modern wireless performance is guaranteed by its Bluetooth 5.4 and Intel Killer Wi-Fi 7. For gamers, producers, and professionals looking for great performance and dependability, the MSI MAG B860 TOMAHAWK WIFI Motherboard is a flexible and strong option that is compatible with Windows 11.

Reviews

What is the price of MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard in Bangladesh?

The latest price of MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard in Bangladesh is 34,200৳ You can buy the MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard at best price from our website or visit any of our showrooms.
