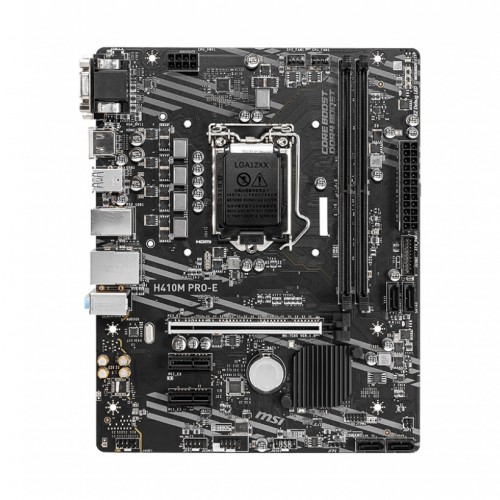

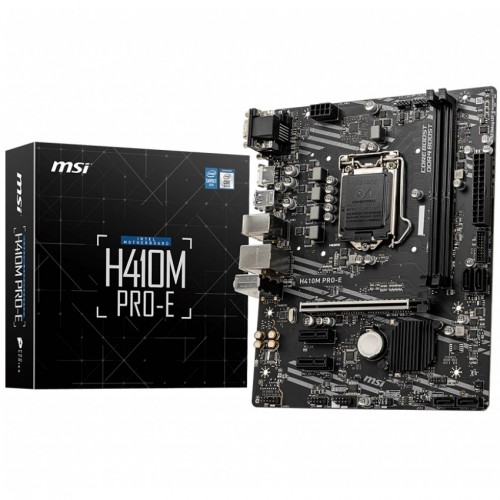

MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard

MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard

Specification:

Supported CPU	Supports 10th Gen Intel Core and Pentium Gold/ Celeron processors for LGA 1200 socket
Chipset	Intel H410 Chipset
Memory	Type: Non-ECC, Un-Buffered Memory Slots: 2x DDR4 memory slots Supported Memory : Intel Core i7/ i9: Supports up to DDR4 2933 MHz Intel Core i5 and below: Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports Intel Extreme Memory Profile (XMP) Maximum Mamory 64GB
Graphics	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
Slots	1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) 2x DDR4 memory slots
Supported Storage	Intel H410 Chipset 4x SATA 6Gb/s ports
LAN	1x Realtek R1111H Gigabit LAN controller
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
USB Port	Intel H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
DIMENSIONS	9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Form Factor	Mirco-ATX
HDMI	1x HDMI 1.4 port (Resolution of 4096x2160 @30Hz)
Warranty	03 Years

Description:

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.
