MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard

Save: 4,000৳

MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard

0 reviews - Write a review

Price: 26,800৳

Regular Price: 30,800৳

Stock : In Stock

Brand: MSI

Model: MSI B860M GAMING PLUS WIFI

Model: MSI B860M GAMING PLUS WIFI
Supports Intel® Core™ Ultra Processors
Up to DDR5 8600+ MT/s (OC)
5G LAN & Wi-Fi 7

26,800৳

Cash Discount Price

Online / Cash Payment

5,923৳/month

Regular Price: 30,800৳

EMI Starting from 5,923৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Motherboard Specification
Chipset	INTEL B860
Form Factor	Micro ATX
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Socket	LGA 1851
Storage Specification
Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
Memory Specification
Memory Capacity	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Network & Wireless
Wi-Fi	Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
LAN	Realtek® 8126 5Gbps LAN
Supports
Supported CPU	Supports Intel® Core™ Ultra Processors (Series 2)
Connectors

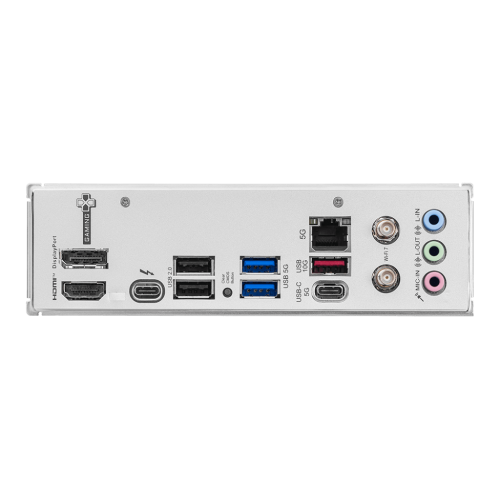

USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
HDMI	1x HDMI Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
Display Port	1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Ports & Slots
Slots	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
PCI-E	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Warranty Information
Warranty	3 Years

MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard

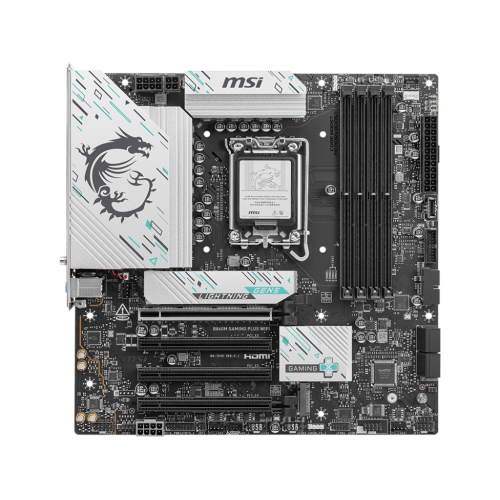

The MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard is an exceptional choice for gamers and PC builders seeking a compact yet powerful solution. Featuring the Intel B860 chipset and designed for Intel® Core™ Ultra processors (Series 2), this Micro ATX motherboard offers robust performance in a space-saving form factor. Its LGA 1851 socket and support for DDR5 memory allow up to 256GB of RAM with impressive overclocking speeds of up to 8600+ MT/s.

The motherboard includes three M.2 slots with PCIe 5.0 and PCIe 4.0 compatibility for high-speed storage and four SATA 6G ports for additional storage flexibility. Networking is cutting-edge, with Intel® Wi-Fi 7 providing speeds up to 5.8Gbps and Realtek® 8126 5Gbps LAN ensuring reliable and fast connectivity.

It supports multiple USB ports, including USB 10Gbps Type-A and Type-C, HDMI 2.1, and DisplayPort 1.4 for 4K 60Hz visuals. Additionally, Thunderbolt™ 4 enables resolutions up to 8K@60Hz, ensuring premium display output for creative and gaming needs. Equipped with Realtek® ALC897 Codec for immersive 7.1-channel audio and RGB customization options, this motherboard combines advanced features, durability, and a 3-year warranty, making it ideal for compact yet powerful builds.

Reviews

What is the price of MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard in Bangladesh?

The latest price of MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard in Bangladesh is 26,800৳ You can buy the MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
