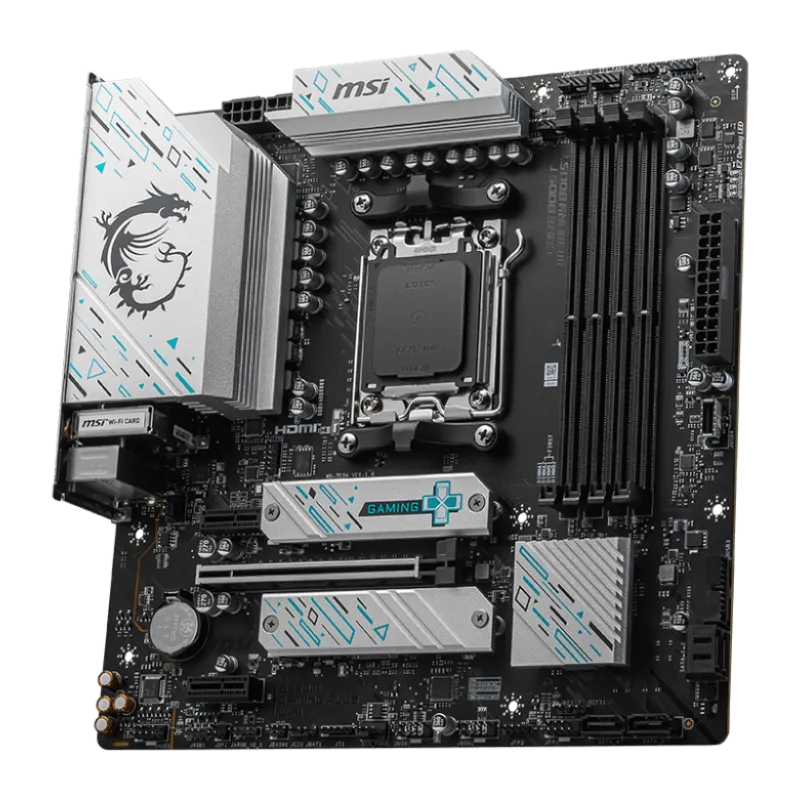

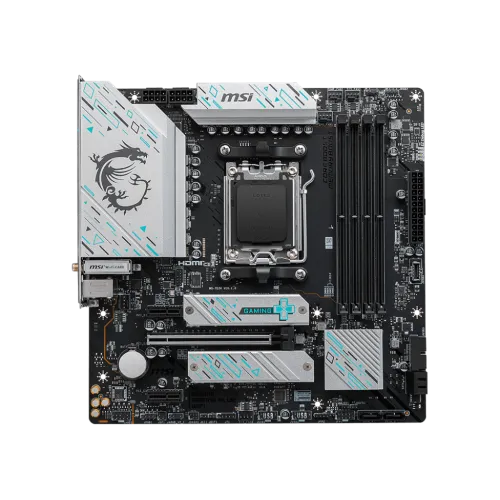

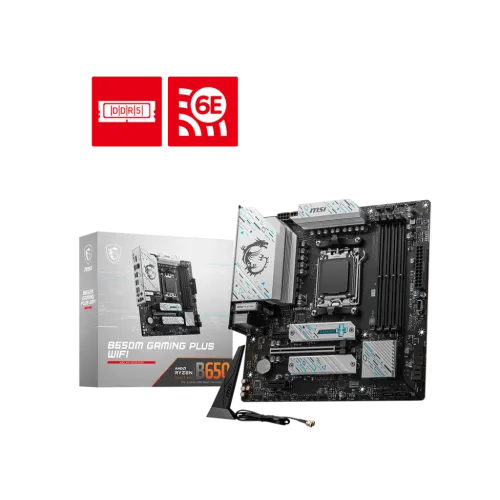

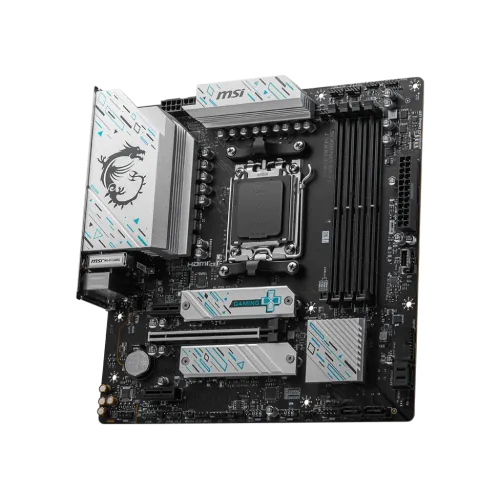

MSI B650M GAMING PLUS WIFI AM5 Motherboard

0 reviews - Write a review

Price: 22,000৳

Regular Price: 24,200৳

Stock : In Stock

Brand: MSI

Model: B650M GAMING PLUS WIFI

Key Features

Model: B650M GAMING PLUS WIFI
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5 7200+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: 2.5G LAN with Wi-Fi 6E Solution

22,000৳

Cash Discount Price

Online / Cash Payment

4,654৳/month

Regular Price: 24,200৳

EMI Starting from 4,654৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type	DDR5
Slots	4x UDIMM
Supported Memory	Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory	256GB
Graphics
Graphics	Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz

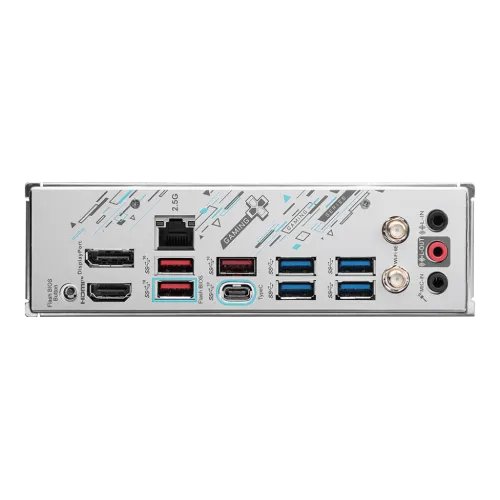

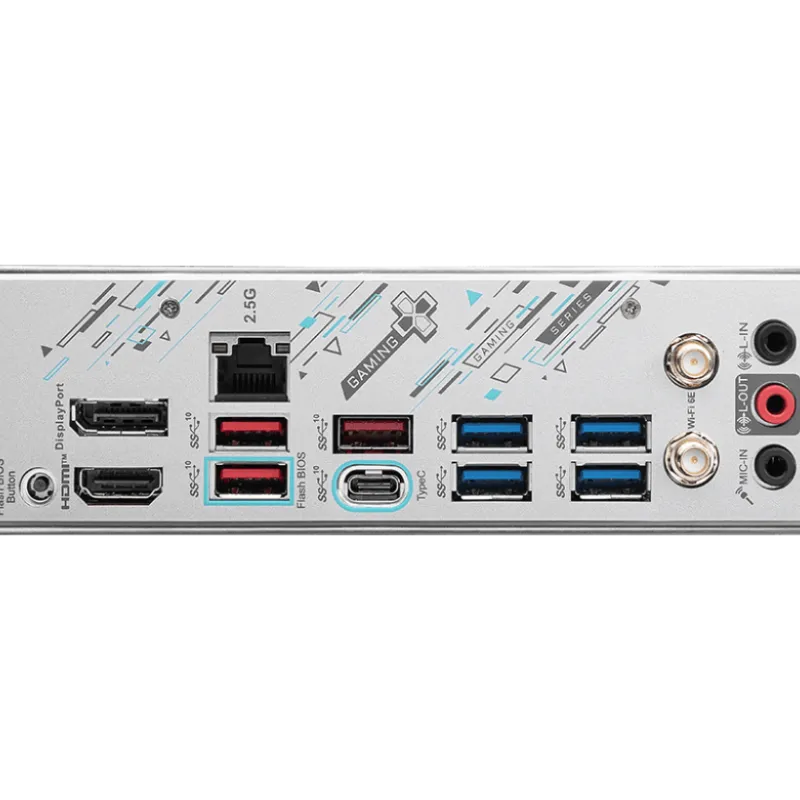

Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort

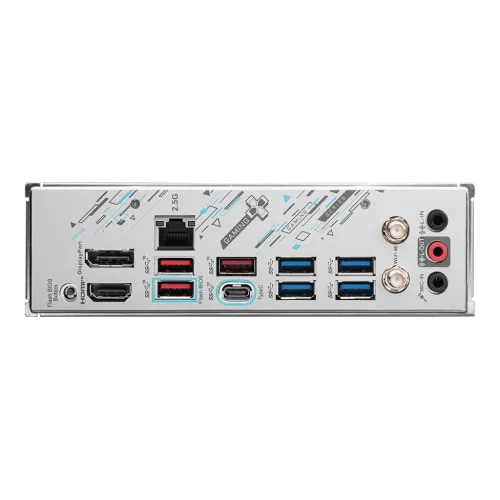

USB (s)	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 Years

MSI B650M GAMING PLUS WIFI AM5 Motherboard

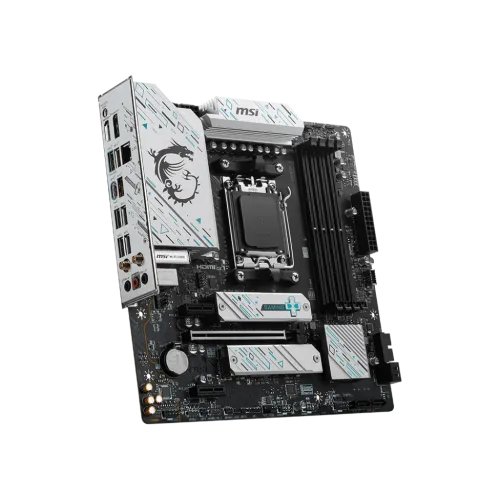

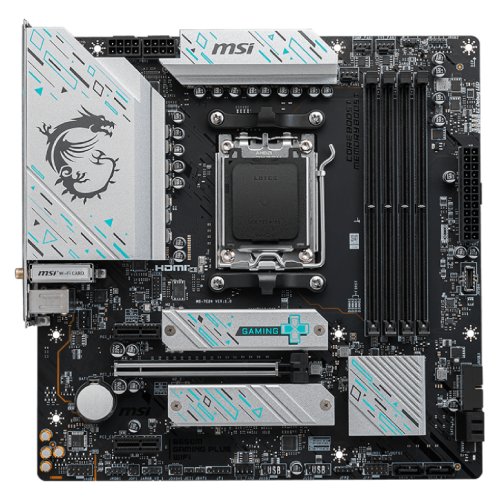

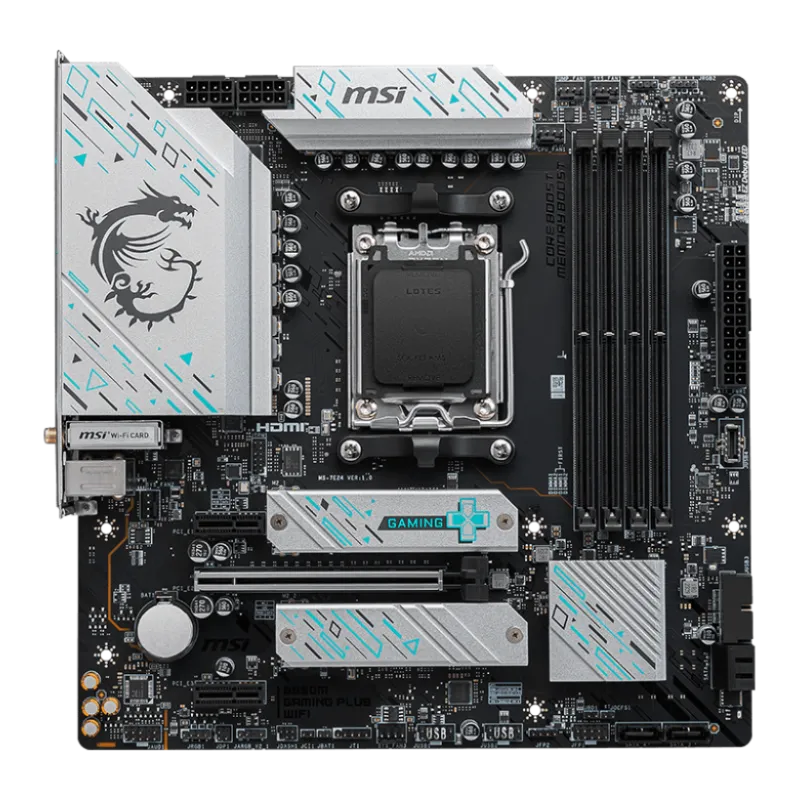

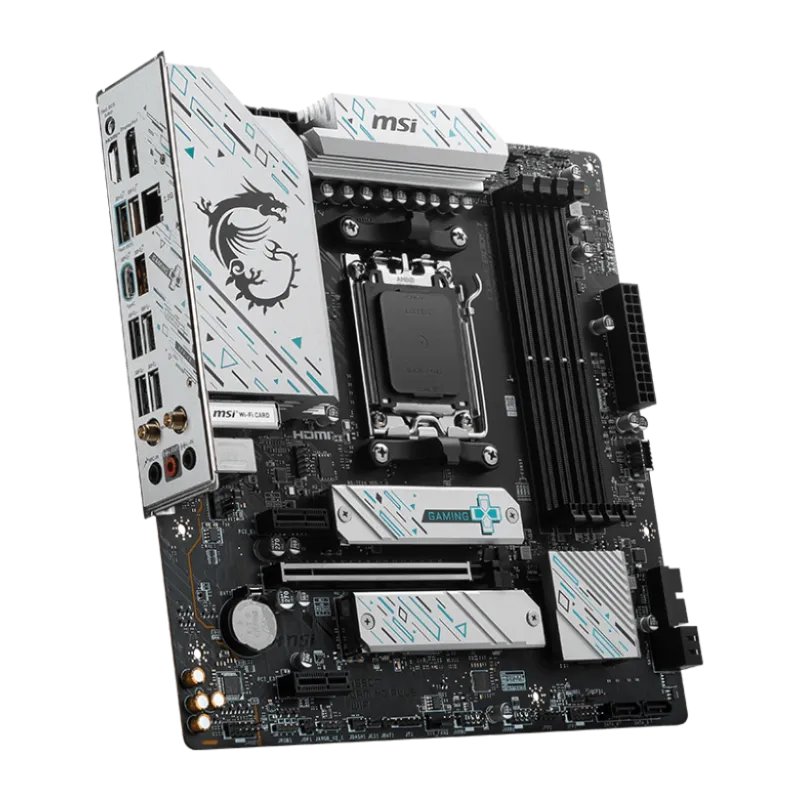

The MSI B650M GAMING PLUS WIFI AM5 motherboard is a robust and high-performance foundation for gaming and desktop computing. It supports AMD Ryzen 8000 and 7000 Series Desktop Processors, along with DDR5 memory, capable of reaching speeds up to 7200+(OC) MHz for enhanced performance. The motherboard features an advanced 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost to ensure stable and efficient power delivery. Designed for an exceptional gaming experience, it includes a PCIe 4.0 slot, Lightning Gen4 M.2, and USB 3.2 Gen 2, offering fast data transfer rates and a seamless gameplay environment. The premium thermal solution features an extended heatsink design and M.2 Shield Frozr, maintaining optimal temperatures for high performance and continuous operation. AUDIO BOOST technology provides studio-grade sound quality, enhancing the immersive gaming experience. The motherboard is constructed with a high-quality 6-layer PCB made with 2oz thickened copper, ensuring improved durability and performance.

Reviews

What is the price of MSI B650M GAMING PLUS WIFI AM5 Motherboard in Bangladesh?

The latest price of MSI B650M GAMING PLUS WIFI AM5 Motherboard in Bangladesh is 22,000৳ You can buy the MSI B650M GAMING PLUS WIFI AM5 Motherboard at best price from our website or visit any of our showrooms.
