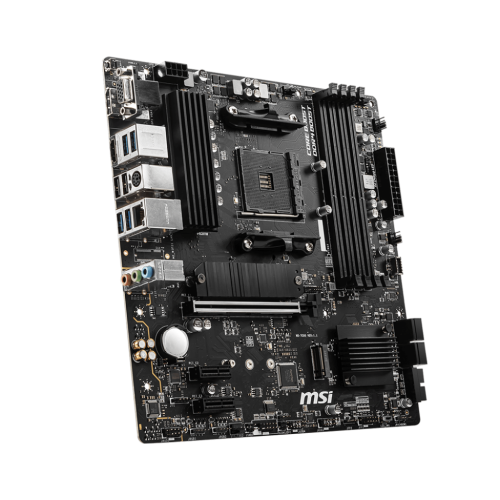

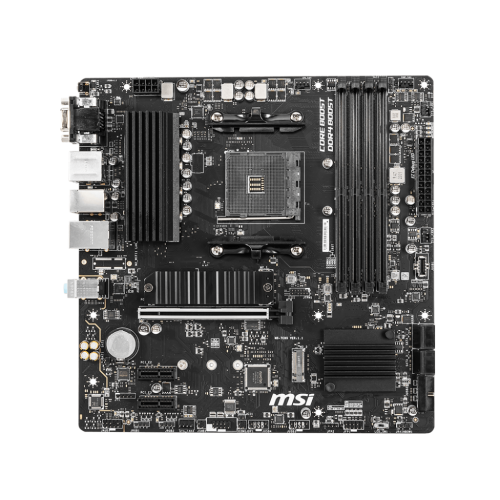

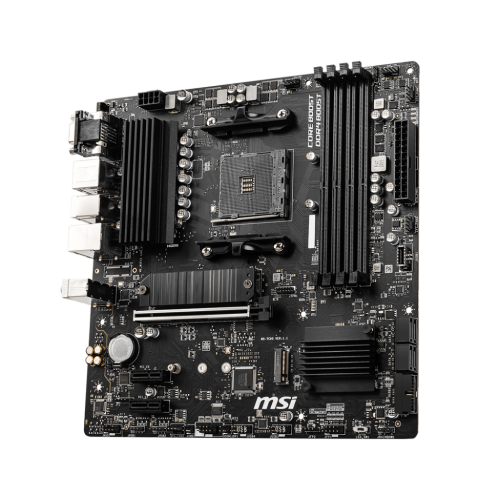

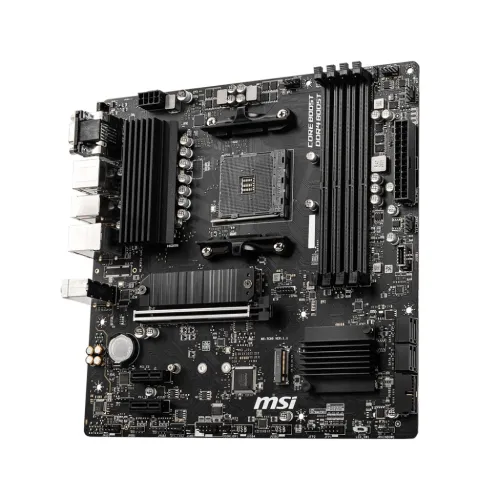

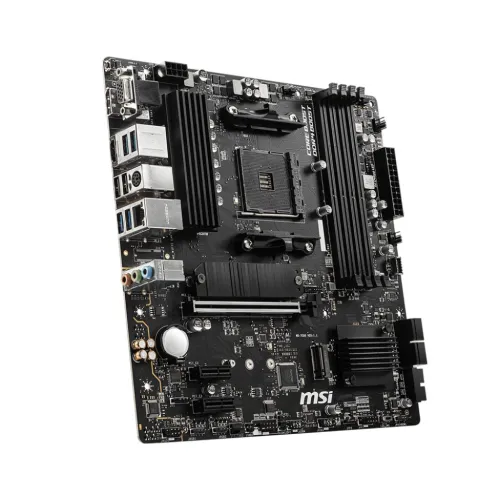

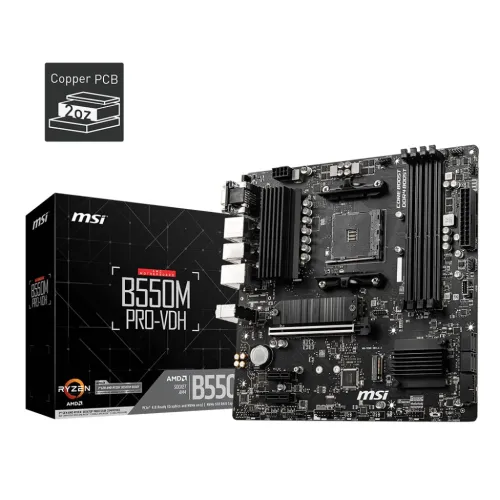

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

Save: 2,580৳

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

0 reviews - Write a review

Price: 14,400৳

Regular Price: 16,980৳

Stock : In Stock

Brand: MSI

Model: B550M Pro-VDH

Model: B550M Pro-VDH
Supports AMD Ryzen 5000 & 3000 Series Processors

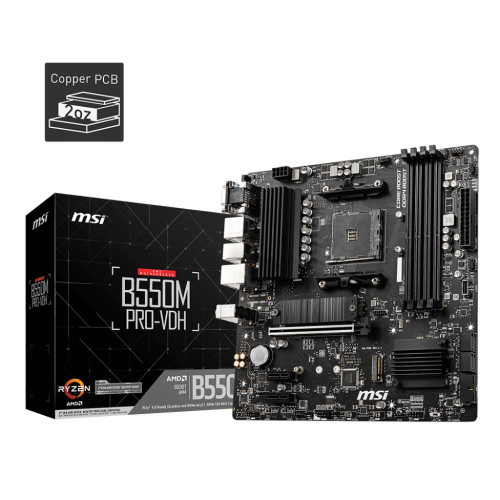

PCB with 2OZ Thickened Copper
Supports DDR4 Memory, up to 4400(OC) MHz

14,400৳

Cash Discount Price

Online / Cash Payment

3,265৳/month

Regular Price: 16,980৳

EMI Starting from 3,265৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Expansion Slots
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Memory
Type	Dual-channel memory architecture
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory	16GB

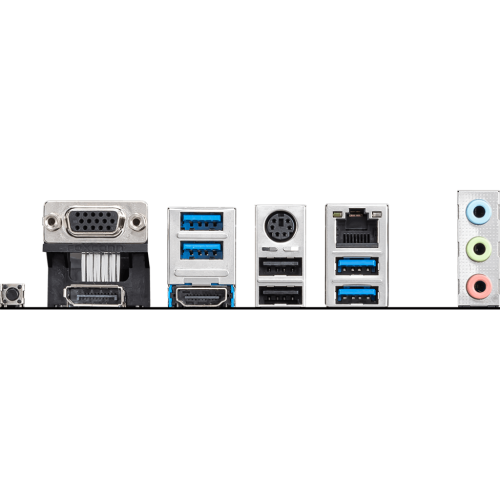

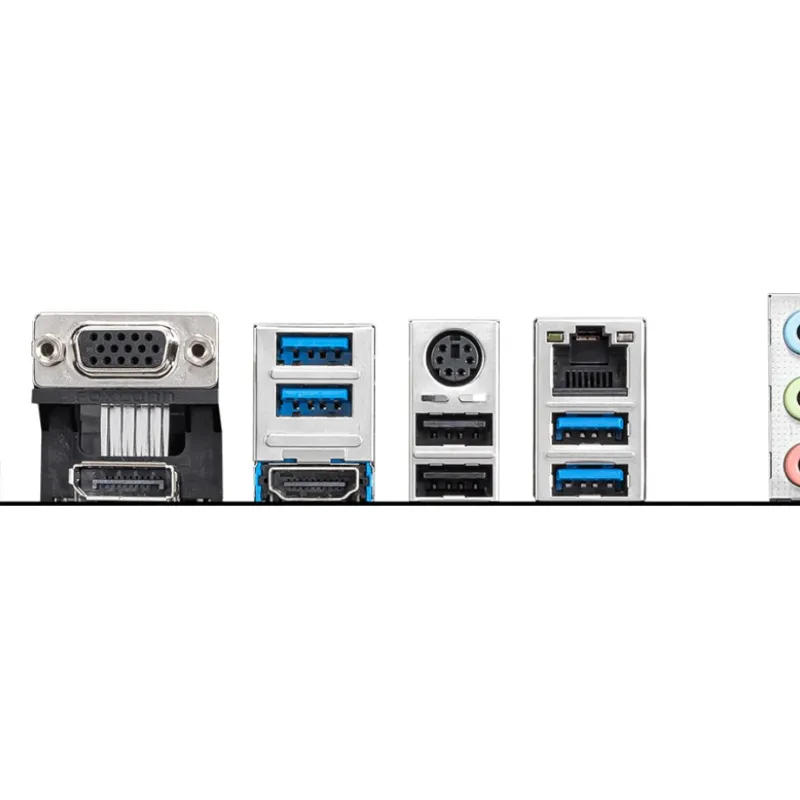

Connector & Ports
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)	1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek 8111HN Gigabit LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

The MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard is a powerful and adaptable option for anyone wishing to build a small but high-performance PC. It uses the AMD B550 chipset and supports AMD Ryzen processors with the AM4 socket, assuring compatibility with the most recent generation CPUs. The MSI AM4 Motherboard supports dual-channel DDR4 memory with a maximum capacity of 128GB, providing superior performance for multitasking and demanding workloads. Its excellent multi-display functionality allows for smooth connection to several monitors, with HDMI, VGA, DVI-D, and DisplayPort outputs to accommodate a wide range of display setups. The MSI B550M Pro-VDH features a number of slots and ports for expansion and high-speed connectivity. It has two M.2 slots for fast SSDs and supports PCI-Express Gen 4, 3, and 2, ensuring compatibility with latest graphics cards and storage devices. It has one PCI-Ex16 slot and two PCI-Ex1 slots for more expansion possibilities. The MSI B550M Pro-VDH AM4 Motherboard's front and rear USB ports offer comprehensive connectivity, with one USB 3.2 Gen 1 Type-C port, two USB 3.2 Gen 1 Type-A ports on the front, four USB 3.2 Gen 1 Type-A ports on the back, and six USB 2.0 ports on both sides. This Micro-ATX board is built to last and is equipped with a Gigabit LAN port for high-speed networking and several fan connectors to keep system temperatures at an ideal level. Its small form size makes it excellent for space-saving designs without sacrificing functionality. With its extensive feature set and dependable performance, the MSI B550M Pro-VDH AM4 DDR4 Micro-ATX Motherboard is an excellent choice for gamers, professionals, and DIY enthusiasts aiming to maximize their system's potential.

Reviews

What is the price of MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard in Bangladesh?

The latest price of MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard in Bangladesh is 14,400৳ You can buy the MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
