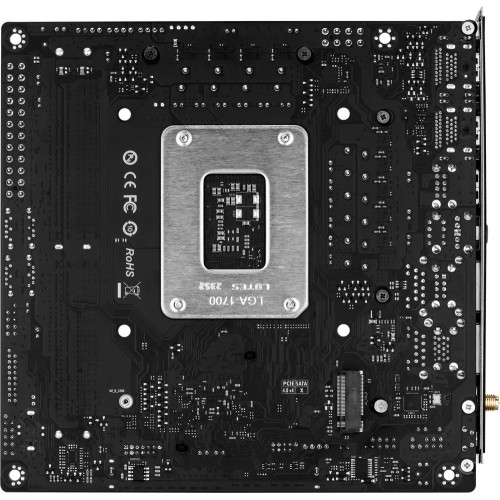

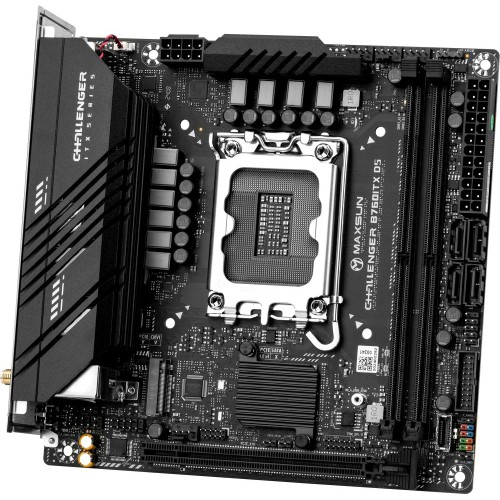

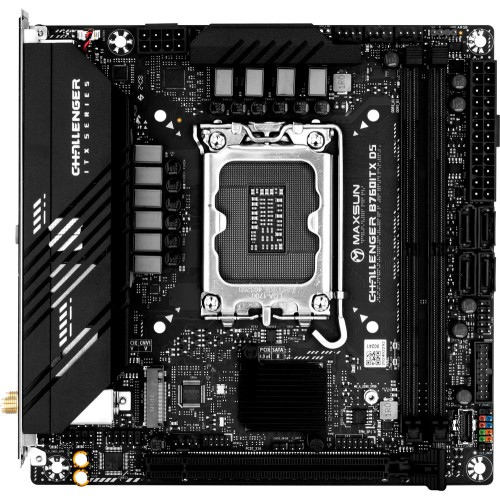

Maxsun Challenger B760ITX D5 WIFI Intel Motherboard

Features

• Intel B760 Chipset: Powered by the high-speed Intel B760 chipset for enhanced performance and stability.
• Supports Intel 12th/13th/14th Gen Processors: Compatible with the latest Intel® Core™, Pentium® Gold, and Celeron® processors.
• LGA 1700 Socket: Designed for the LGA 1700 socket, ensuring broad CPU compatibility.
• Dual DDR5 Memory Slots: Supports up to 96GB of DDR5 RAM with dual-channel architecture for maximum speed.
• XMP 2.0 Support: Optimized for Intel® XMP 2.0 for hassle-free memory overclocking.
• 4800 MHz Memory Frequency: Boost your system's speed with support for 4800 MHz memory and overclocking.
• Dual DisplayPort 1.4: Two DP 1.4 ports supporting 4K resolution at 60Hz for crystal-clear visuals.
• HDMI 2.0 Support: HDMI 2.0 output for up to 4096x2160 resolution at 60Hz for high-definition display support.
• PCIe 5.0 x16 Slot: Equipped with a PCIe 5.0 x16 slot for lightning-fast data transfer and next-gen graphics cards.
• Dual M.2 Slots: Features two Gen4 x4 M.2 SSD slots for ultra-fast storage options, both front and backside.
• Four SATA 3.0 Ports: Supports up to four SATA 3.0 ports for multiple storage device connectivity.
• Dual LAN Ports: Built-in 2.5Gb and 1Gb Ethernet ports for fast, reliable networking.
• Realtek ALC897 Audio Codec: High-quality sound powered by Realtek® ALC897 audio codec for immersive audio experiences.
• Compact ITX Form Factor: ITX form factor (170mm x 170mm) for compact builds, perfect for small form factor PCs.
• Supports Windows 10 & 11: Compatible with both Windows® 10 and Windows® 11 for a versatile system experience.
• 24-Pin and 8-Pin Power Connectors: Reliable power delivery with 24-pin ATX_PWR and 8-pin CPU_PWR connectors.
• Multiple Fan Headers: Includes one CPU fan header and three system fan headers for efficient cooling options.
• HDMI 1.4 for Legacy Support: Includes an HDMI 1.4 port supporting 4K at 30Hz for older display compatibility.
• Dual-Channel Memory Architecture: Dual-channel DDR5 memory support for faster performance in multitasking and gaming.
• Three-Year Warranty: Comes with a solid 3-year warranty for long-term peace of mind.
• Enhanced Internal I/O: Includes M.2 slot (Key-M), 4x SATA 6Gb/s ports, CLR_CMOS, front audio, and COM port support.

Maxsun Challenger B760ITX D5 WIFI Intel Motherboard

The Maxsun Challenger B760ITX D5 WIFI motherboard is designed to offer exceptional performance and versatility, making it a top choice for gamers, content creators, and PC builders alike. Powered by the latest Intel B760 chipset, this motherboard supports 12th, 13th, and 14th Gen Intel Core™, Pentium® Gold, and Celeron® processors, ensuring high compatibility and future-proofing for your system. Its compact ITX form factor (170mm x 170mm) makes it ideal for small form factor builds, delivering powerful performance in a space-efficient design.

Equipped with dual DDR5 memory slots, this motherboard supports up to 96GB of RAM, with memory speeds up to 4800 MHz and Intel® XMP 2.0 for effortless overclocking. The PCIe 5.0 x16 slot provides cutting-edge support for the latest graphics cards, ensuring smooth gameplay and efficient multitasking for demanding applications.

For storage, the Maxsun Challenger B760ITX D5 WIFI offers dual M.2 Gen4 x4 SSD slots, one on the front and one on the backside, as well as four SATA 3.0 ports for maximum storage flexibility. Onboard graphics include dual DisplayPort 1.4 and HDMI 2.0, supporting 4K resolution at 60Hz for immersive visuals, alongside an HDMI 1.4 port for legacy display compatibility.

This motherboard also features dual LAN ports (2.5Gb and 1Gb) for fast and reliable networking, while the Realtek ALC897 audio codec delivers high-quality sound. With a range of internal I/O ports, fan connectors, and expansion options, this motherboard is perfect for those who demand versatility and power from their PC setup.

Backed by a three-year warranty, the Maxsun Challenger B760ITX D5 WIFI offers premium performance, future-proof technology, and durability for an enhanced computing experience.
