MaxGreen MG12-65 12V 65Ah UPS Battery

Specification

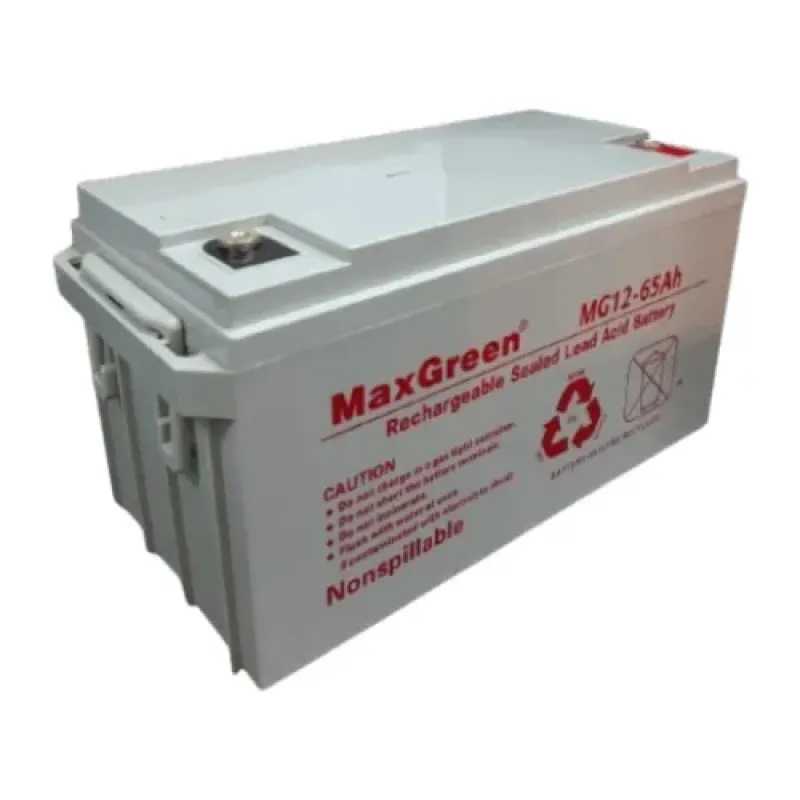

MaxGreen MG12-65 12V 65Ah UPS Battery

The MaxGreen MG12-65 is a powerful 12V UPS battery with a 65Ah capacity, engineered for long-lasting performance. It has copper T5/T9 terminal types, which provide effective conductivity. The battery is appropriate for high-demand applications since it can withstand a maximum discharge current of 700A for five seconds. It guarantees durability with a planned floating life of 10 to 15 years. The battery has the following dimensions: it is 348±2 mm long, 167±2 mm wide, and 178±2 mm tall. It weighs around 17.5 kg ±4%. When completely charged at 25°C, the MaxGreen MG12-65 12V 65Ah UPS Battery has an internal resistance of roughly 6.5mΩ and can support a maximum charging current of 21A. Temperature has an impact on capacity; it maintains 102% at 40°C, 100% at 25°C, 85% at 0°C, and 65% at -15°C. 91% of the capacity remains after three months, 82% after six months, and 65% after a year at a self-discharge rate of 25°C. The operational temperature range for discharge is between -15°C and 50°C, for charging it is between -10°C and 50°C, and for storage it is between -20°C and 50°C. The nominal operating temperature is 25°C±3°C. The cyclic charging voltage of the MaxGreen MG12-65 12V 65Ah UPS Battery varies from 14.50 to 14.90V with a temperature adjustment of -30mV/°C, while the float charging voltage at 25°C ranges from 13.50 to 13.80V. With its extensive feature set, the MaxGreen MG12-65 is a dependable option for a range of UPS applications, guaranteeing continuous operation under a variety of environmental circumstances.
