Intel 12th Gen Core i9-12900K Alder Lake Processor

Intel 12th Gen Core i9-12900K Alder Lake Processor

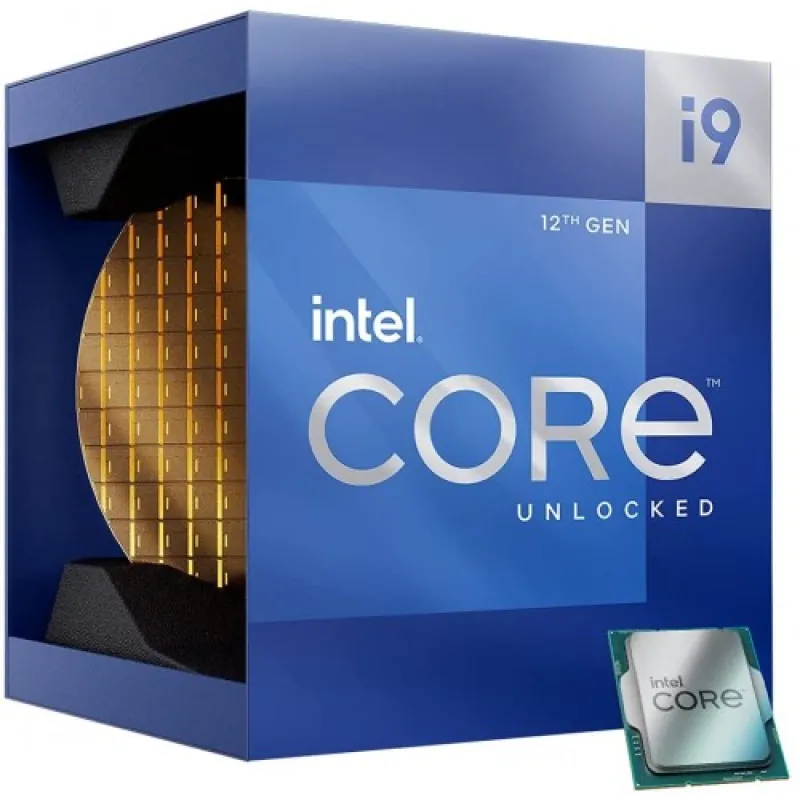

The Intel 12th Gen Core i9-12900K Alder Lake Processor comes with 3.70 GHz up to 5.20 GHz clock speed, 16 cores, and 24 threads. This new 12th gen Alder Lake Processor is manufactured with 10nm Lithography. The packaging on the Intel Core i9-12900K box is very fancy and chip. And also comes packed within two circular containers which resemble a CPU wafer and opening these up will reveal the chip itself inside its plastic clamshell case. Intel's Core i9-12900K processor is arranged in 8 P-Core (with 16 threads) and 8 E-Core (with 8 threads). Its 30 MB of L3 cache, arranged in 3 MB per core partitions on the P-Core (Golden Cove) and 3 MB per cluster on the E-Core (Gracemont)

Core Benefits of the Processor

Intel 10th Generation i9-12900K Processor featured with a base frequency of 3.70 GHz that can be reached as max turbo frequency at 5.20 GHz. It has the L3 SmartCache of 30 MB containing 16 cores and 24 threads. This 12th Gen Core i9 comes with Mobo Socket LGA 1700, 64 Bit Width, 2 Memory Channels with Maximum memory 256GB capacity, it has thermal design power (TDP) rating of 125W. This Core i9 12th Gen processor has few expansion options. This Intel Core i9 12900K 12th Gen Processor also supports DDR5 memory, but the exact memory configuration used in this leak is not clear.

Advanced Facilities from Corei9-12900K

This processor features a P-Core base and boost clocks of 3.2 GHz / 5.3 GHz and an E-Core base and boost clocks of 3.0 / 3.9 GHz. The boost clocks of this processor are for a single-core. The all-core boost frequencies are expected to be 5.0 GHz for the P-Core and 3.7 GHz for the E-Core. The upper speeds will be achieved only when TVB (Thermal Velocity Boost) has been activated so normal boost speeds might be a little lower. That's 8 P-Cores for 24 MB from the P-Cores and 6 MB from the two clusters comprising 4 E-Cores each. There's also 1.25 MB of L2 cache for a total of 12.5 MB on the entire chip. Intel's Alder Lake will feature both DDR5 and DDR4 memory controllers and 600-series motherboards will also come with DDR5/DDR4 specific options. High-end motherboards will retain DDR5 while the more mainstream offerings will open up DDR4 support also. The latest Intel 12th Gen Core i9-12900K Alder Lake Processor comes with 03 years warranty (No Warranty for Fan or Cooler).

Brand	Intel
Model	i9-12900K
Base Frequency	3.70 GHz
Maximum Turbo Frequency	5.20 GHz
Cache	30MB
Cores	16
Threads	24
Default TDP	125W
Maximum Size	256GB
Type	DDR4 / DDR5
Max Number of Channels	2
Processor Graphics	Intel UHD Graphics 770
Manufacturing Warranty	03 years warranty (No Warranty for Fan or Cooler)
