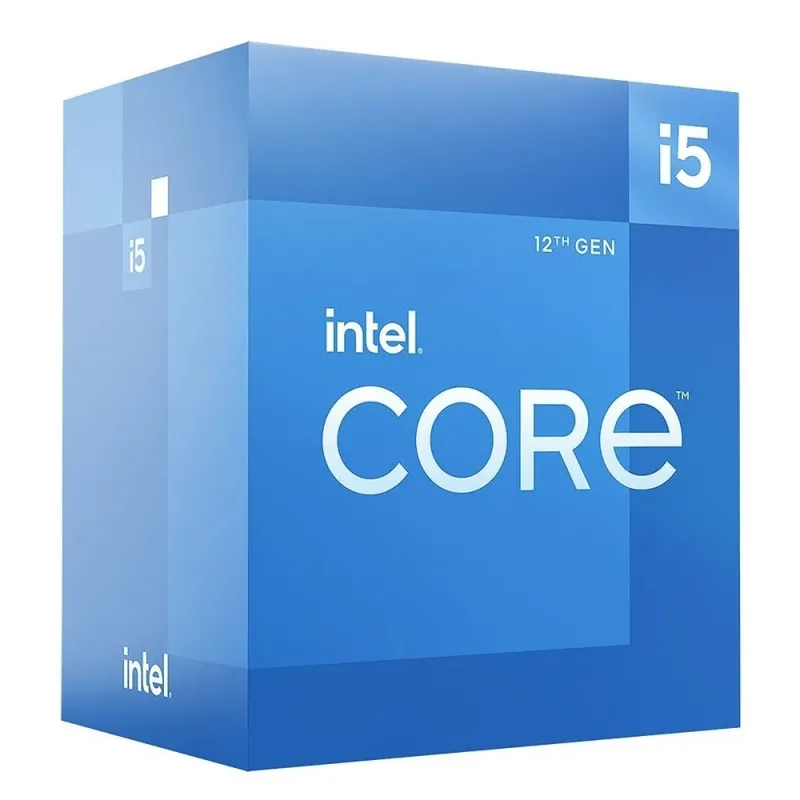

Intel 12th Gen Core i5-12500 Alder Lake Processor

Intel 12th Gen Core i5-12500 Alder Lake Processor

Intel 12th Gen Core i5-12500 Processor Overview

The latest Intel Core i5-12500 processor comes with 6 cores and 12 threads. It has a base frequency of 3.00 GHz and a maximum boost frequency of up to 4.60 GHz. The i5-12500 Alder Lake Processor comes with an 18 MB Intel Smart Cache and 7.5 MB of total L2 Cache. TDP values are maintained at 65 W. The Intel Core i5-12500 is supported with LGA1700 Sockets and the size of the CPU is 45.0 mm x 37.5 mm.

Core Benefits of the Processor

The Intel Core i5-12500 Alder Lake CPU supports both DDR5 and DDR4 memory controllers. High-end motherboards will retain DDR5 while the more mainstream offerings will open up DDR4 support too. It supports up to DDR5 4800 MT/s and up to DDR4 3200 MT/s. The max number of memory channels is 2 and they support 128 GB of maximum memory size in total. It features maximum bandwidth of 76.8 GB/s. The Processor also comes with Intel UHD Graphics 770 graphics that has a base frequency of 300 MHz and 1.45 GHz of maximum dynamic frequency. It supports eDP 1.4b, DP 1.4a, HDMI 2.1 graphics output options. The latest Intel 12th Gen Core i5-12500 comes with 03 years warranty (No Warranty for Fan or Cooler).

Basic Information
Base Frequency	3.00 GHz
Maximum Turbo Frequency	4.60 GHz
Cache	18 MB Intel Smart Cache
Cores	6
Threads	12
Default TDP	65W
Memory Specifications
Maximum Size	128 GB
Maximum Speed	76.8 GB/s
Type	Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max Number of Channels	2
Graphics Specifications
Processor Graphics	Intel UHD Graphics 770
Base Frequency	300 MHz
Max Dynamic Frequency	1.45 GHz
Max Resolution	HDMI: 4096 x 2160 @ 60Hz DP: 7680 x 4320 @ 60Hz eDP - Integrated Flat Panel: 5120 x 3200 @ 120Hz
Core Count	32
Warranty Information
Manufacturing Warranty	03 years warranty (No Warranty for Fan or Cooler)
