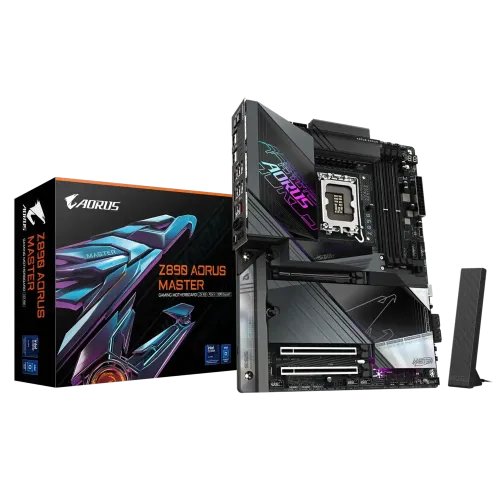

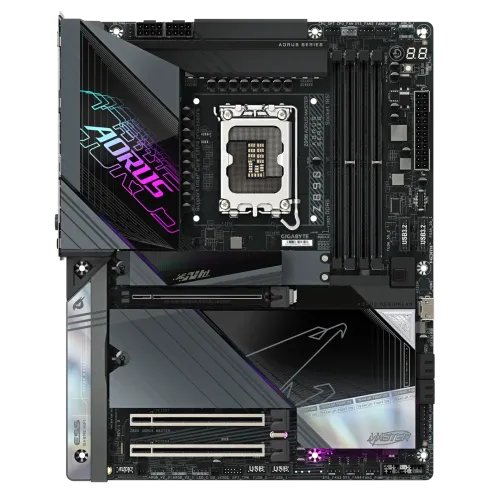

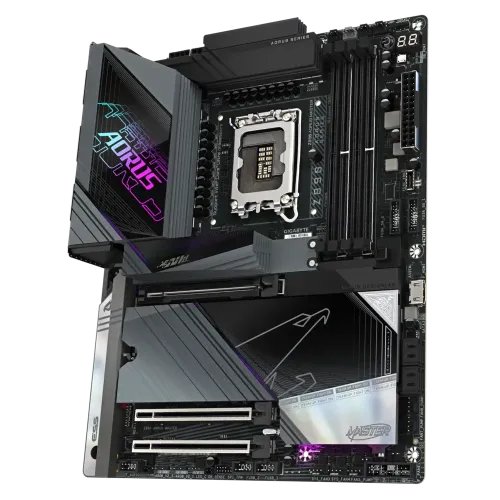

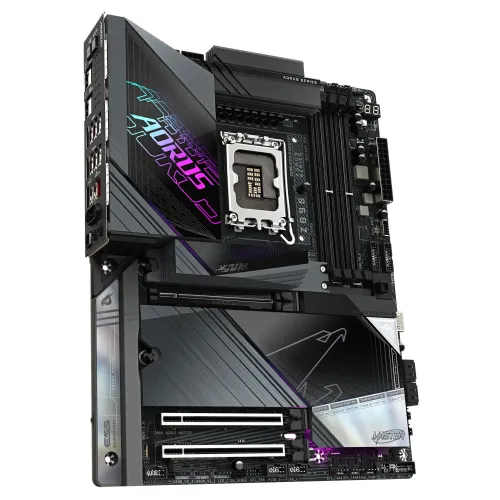

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
New
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
0 reviews - Write a review
  • Price: 81,000৳
  • Regular Price: 89,100৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: Z890 AORUS MASTER

    • Key Features

    • Model: Z890 AORUS MASTER
    • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
    • Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9500(O.C)
    • Graphics Output: 1x HDMI, 1x DisplayPort, 2 x (USB4 Type-C port Supports DisplayPort),
    • Features: 5x M.2, Intel Wi-Fi 7, Bluetooth 5.4
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU Intel Core Ultra Processors(Series 2)
    Chipset Intel Z890 Chipset
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    Audio Realtek® ALC1220 CODEC
    * The front panel line out jack supports DSD audio.


    ESS ES9118 DAC chip
    Support for DTS:X® Ultra
    High Definition Audio
    2/4/5.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    Expansion Slots
    PCI CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.


    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
    M.2 Socket CPU:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    Memory
    Type DDR5
    Slots 4 x DIMM
    Supported Memory Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

    Support for Extreme Memory Profile (XMP) memory modules
    Support CUDIMM memory module
    Maximum Memory 256GB (64 GB single DIMM capacity) of system memory
    Graphics
    Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    - 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
    When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
    When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 2.1 version and HDCP 2.3


    - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
    * Support for HDMI 1.4 version.

    (Graphics specifications may vary depending on CPU support.)

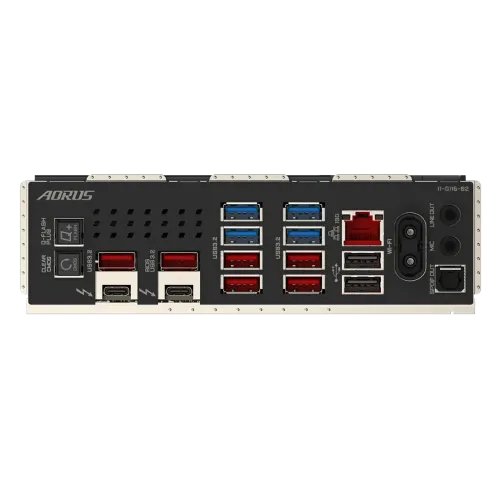

    Connector & Ports
    HDMI 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
    Display Port (s) 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
    When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
    When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
    LAN Port (s) Marvell® AQtion AQC113C 10GbE LAN chip
    (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module Intel® Wi-Fi 7 BE200NGW
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.4
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
    Supported Storage CPU:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio 1 x front panel audio header
    2 x audio jacks
    Internal I/O Ports 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    4 x system fan/water cooling pump headers
    4 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    5 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x HDMI port (Note)
    1 x power button
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    Voltage Measurement Points
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Bundled Software Norton® Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 Year Warranty


    Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

    The Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard is engineered to deliver top-tier performance and cutting-edge connectivity for the most demanding users. Featuring the latest LGA 1851 socket for Intel Arrow Lake-S processors, this Gigabyte motherboard supports DDR5 RAM, ensuring exceptional memory performance and faster data transfer rates. With five M.2 slots, including two PCIe 5.0 x4 slots, it offers ultra-fast storage solutions to keep your system running smoothly and efficiently. The Gigabyte motherboard also boasts Wi-Fi 7 and dual 10GbE LAN for seamless, high-speed networking, while enhanced thermal solutions like VRM Thermal Armor Advanced and M.2 Thermal Guard XL ensure your system stays cool under heavy loads. Additionally, it provides dual USB4 Type-C with DP-Alt mode and DisplayPort for versatile connectivity options and high-resolution audio with integrated ALC1220 and ESS SABRE Hi-Fi 9118 DAC for crystal-clear sound quality. Designed with DIY-friendly features like EZ-Latch Plus and EZ-Latch Click for quick, tool-less installation of PCIe and M.2 slots, this Gigabyte motherboard is the perfect choice for gamers, creators, and tech enthusiasts who demand the best in performance, connectivity, and reliability.


    Cutting-Edge Connectivity and Networking

    The Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard sets a new standard for connectivity and networking. With Wi-Fi 7, you can experience ultra-fast wireless speeds and reduced latency, perfect for online gaming and streaming high-definition content. The dual 10GbE LAN ports provide robust wired networking options, ensuring stable and high-speed internet connections for data-intensive tasks. This Gigabyte motherboard also features dual USB4 Type-C ports with DP-Alt mode and DisplayPort, offering versatile connectivity options for a wide range of peripherals and displays. Whether you're connecting multiple monitors, external storage devices, or other peripherals, this motherboard has you covered.


    Advanced Thermal Management and Superior Audio

    Keeping your system cool and your audio crystal clear, the Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard features advanced thermal management and superior audio components. The VRM Thermal Armor Advanced and M.2 Thermal Guard XL ensure that your components stay cool even under heavy loads, preventing overheating and maintaining optimal performance. On the audio front, the integrated ALC1220 and ESS SABRE Hi-Fi 9118 DAC deliver high-resolution sound quality, providing an immersive audio experience whether you're gaming, watching movies, or listening to music. This Gigabyte motherboard is designed to offer an exceptional computing experience, making it a top choice for any high-performance build.

    Write a review

    Please login or register to review

    What is the price of Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard in Bangladesh?

    The latest price of Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard in Bangladesh is 81,000৳ You can buy the Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard at best price from our website or visit any of our showrooms.
