Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Key Features
- Model: Z890 AORUS ELITE WIFI7 ICE
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
- Graphics Output: 1x HDMI, 1x DisplayPort, 1 x Intel Thunderbolt 4 connector (USB4 Type-C port),
- Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088
NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.
You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.
Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.
Specification
Basic Information | ||
Supported CPU | Intel Core Ultra Processors(Series 2) | |
Chipset | Intel Z890 Chipset | |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
Expansion Slots | ||
PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
|
M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) |
|
Memory | ||
Type | DDR5 | |
Slots | 4 x DIMM | |
Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. | |
Maximum Memory | 256GB | |
Graphics | ||
Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
Connector & Ports | ||
HDMI | 1 x HDMI | |
Display Port (s) | 1 x DisplayPort | |
USB (s) | CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel *Support up to 40Gbps with Thunderbolt devices *Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
Supported Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
|
RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
Audio | 1 x front panel audio header 2 x audio jacks |
|

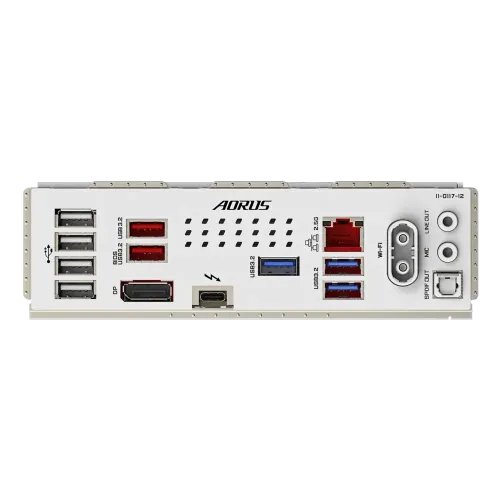

Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
Others | ||
Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
Warranty Information | ||
Manufacturing Warranty | 3 Year Warranty |
Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
The Gigabyte Z890 AORUS ELITE WIFI7 ICE is a powerhouse designed to redefine your computing experience, featuring the new LGA 1851 socket for Intel Arrow Lake-S processors. This Gigabyte motherboard supports DDR5 RAM, ensuring blazing-fast data transfer rates and enhanced system responsiveness. With four M.2 slots, including one PCIe 5.0 x4 slot, it offers ultra-fast storage solutions. The Gigabyte motherboard also boasts Wi-Fi 7 with a directional ultra-high gain antenna and 2.5GbE LAN for seamless, high-speed networking. Enhanced thermal solutions like VRM Thermal Armor and M.2 Thermal Guard keep your system cool under heavy loads. Additionally, it provides Thunderbolt™ 4 Type-C with DP-Alt mode and DisplayPort for versatile connectivity options, and high-resolution audio with integrated ALC1220 and WIMA audiophile-grade capacitors. The Gigabyte motherboard is designed with DIY-friendly features like EZ-Latch Plus and EZ-Latch Click for quick, tool-less installation of PCIe and M.2 slots, making it the perfect choice for gamers, creators, and tech enthusiasts who demand the best.
Exceptional Performance and Versatile Connectivity
The Gigabyte Z890 AORUS ELITE WIFI7 ICE is engineered to deliver exceptional performance and versatile connectivity. With support for the latest Intel processors and DDR5 RAM, this Gigabyte motherboard ensures your system runs at peak efficiency. The inclusion of multiple M.2 slots and PCIe 5.0 x4 slot provides ample room for high-speed storage, while Wi-Fi 7 and 2.5GbE LAN offer robust networking capabilities. Whether you're gaming, streaming, or creating content, this Gigabyte motherboard has you covered.
Advanced Cooling and Premium Audio
Keeping your system cool and your audio crystal clear, the Gigabyte Z890 AORUS ELITE WIFI7 ICE features advanced thermal solutions and high-resolution audio components. The VRM Thermal Armor and M.2 Thermal Guard ensure your components stay cool even under heavy loads, while the ALC1220 and WIMA audiophile-grade capacitors deliver superior sound quality. This Gigabyte motherboard is designed to provide an exceptional computing experience, making it a top choice for any high-performance build.
What is the price of Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard in Bangladesh?
The latest price of Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard in Bangladesh is 44,500৳ You can buy the Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard at best price from our website or visit any of our showrooms.
