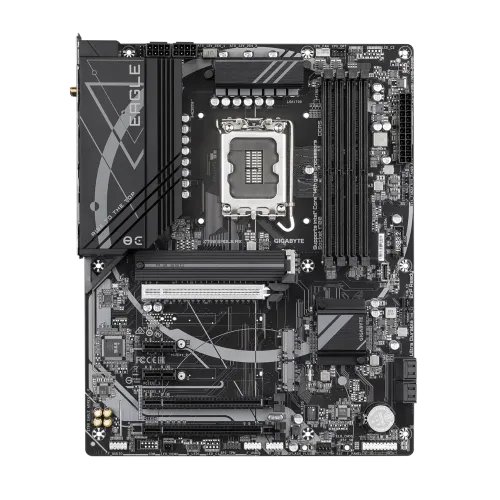

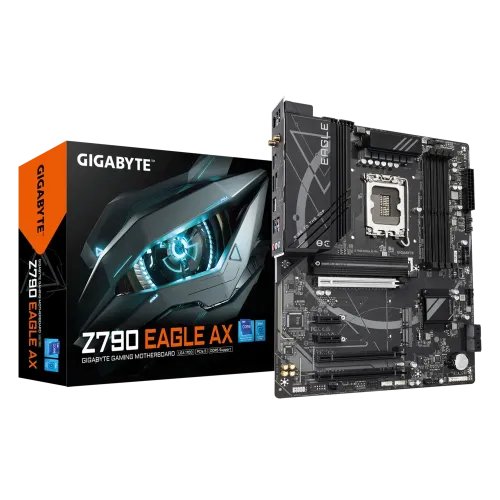

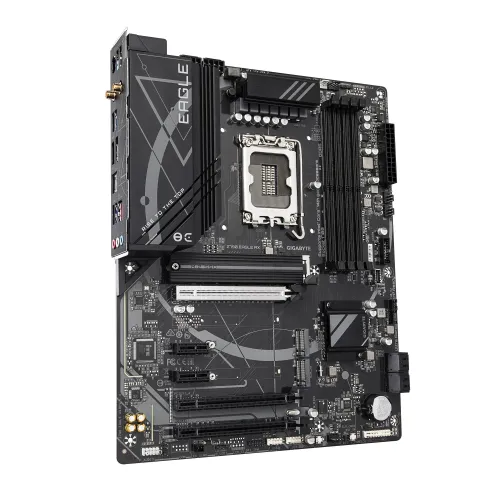

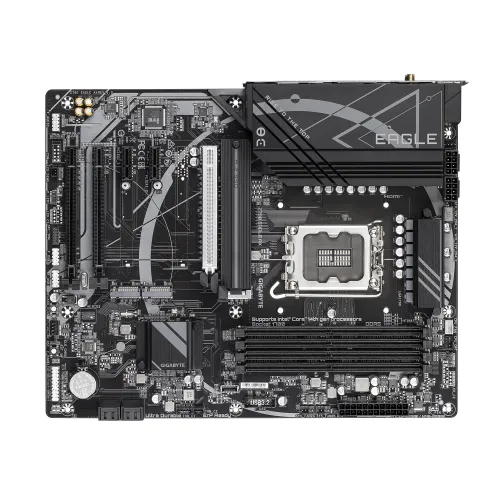

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
0 reviews - Write a review
  • Price: 31,900৳
  • Regular Price: 37,401৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: Z790 EAGLE AX

    • Key Features

    • Model: Z790 EAGLE AX
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
    Chipset Intel Z790 Express Chipset
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    Expansion Slots
    PCI CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
    Memory
    Type DDR5
    Slots 4 x DDR5 DIMM sockets
    Supported Memory 14th and 13th Generation Intel Core i9/i7 Pocessors:
    - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
    13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
    - Support for DDR5 4800/4400 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    Maximum Memory up to 192 GB (48 GB single DIMM capacity) of system memory
    Graphics
    Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
    Connector & Ports
    HDMI 1 x HDMI port
    Display Port (s) 1 x DisplayPort
    USB (s) Chipset:
    - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
    - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    - 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports, available through the internal USB headers
    LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1)
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    Supported Storage CPU:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio 3 x audio jacks
    Internal I/O Ports Internal I/O Connectors
    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt™ add-in card connectors
    1 x reset button
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

    Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x USB Type-C port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (1T1R)
    1 x HDMI port
    1 x DisplayPort
    1 x RJ-45 port
    3 x audio jacks
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 years


    GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

    The GIGABYTE Z790 EAGLE AX motherboard is a high-performance platform ideal for demanding applications like gaming and content production. It is designed to accommodate the latest 14th, 13th, and 12th Gen Intel CPUs using the LGA1700 socket. It provides fast and efficient performance for demanding tasks and multitasking, with four DIMM slots supporting up to 192GB of DDR5 memory and speeds up to 7600 MHz (overclocked). Its display connection options include DisplayPort and HDMI outputs. A strong Twin 12*+1+1 Phases Digital VRM Solution, which offers steady and dependable power delivery and is necessary to sustain performance under high loads, is one of the GIGABYTE Z790 EAGLE AX's key characteristics. Dual-channel DDR5 with XMP 3.0 Memory Modules is supported by the motherboard, enhancing memory performance and stability. With three PCIe 4.0 x4 M.2 connections, there are many storage options and fast data transmission and large storage capacity. In addition to preventing SSD overheating, the M.2 Thermal Guard and sophisticated thermal design guarantee VRM power stability. The quick-release design of the EZ-Latch PCIe 5.0 x16 slot facilitates installation simplicity and makes graphics card upgrades simple. Thanks to Intel Wi-Fi 6E (802.11ax) and Realtek 2.5GbE LAN, networking is dependable and quick. In addition, the motherboard offers a wide range of connectivity choices, such as DisplayPort, HDMI, and a rear USB-C connector that supports 10Gb/s data transmission. With its various temperature sensors and hybrid fan headers with FAN STOP technology, the Smart Fan 6 feature provides sophisticated cooling solutions that are specifically matched to the requirements of the system. The update procedure is made simpler by the Q-Flash Plus function, which enables BIOS upgrades without requiring the installation of the CPU, RAM, or graphics card. For those looking for a reliable and feature-rich motherboard that supports the newest Intel CPUs and cutting-edge technology and offers exceptional performance and dependability for any high-end computing demands, the GIGABYTE Z790 EAGLE AX is a great option.

    Write a review

    Please login or register to review

    What is the price of GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard in Bangladesh?

    The latest price of GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard in Bangladesh is 31,900৳ You can buy the GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard at best price from our website or visit any of our showrooms.
