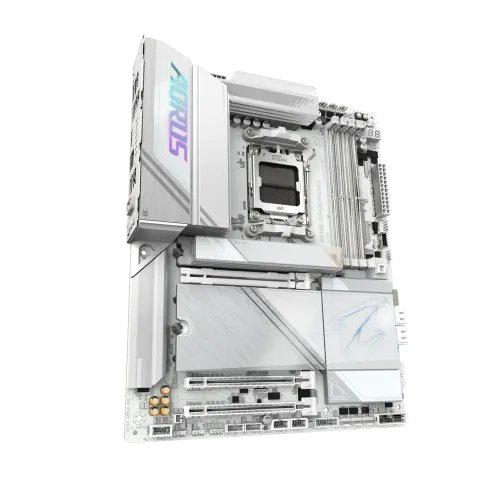

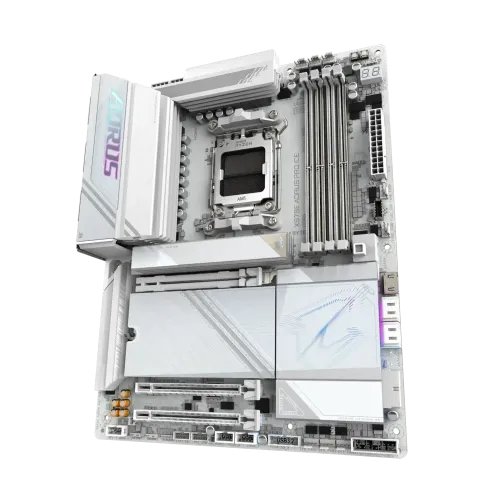

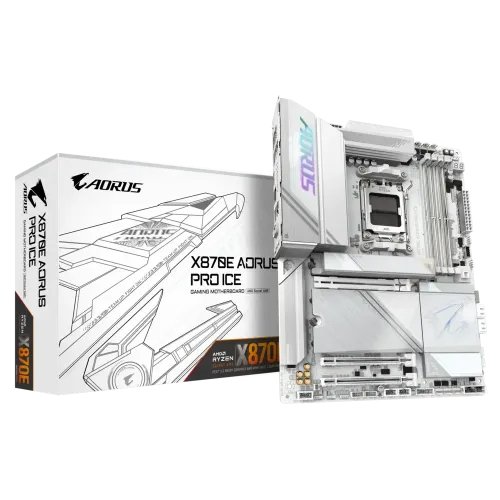

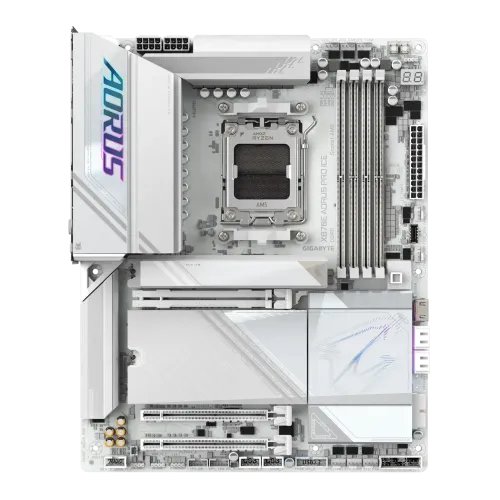

GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard

GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
New
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard
0 reviews - Write a review
  • Price: 54,500৳
  • Regular Price: 59,950৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: X870E AORUS PRO ICE

    • Key Features

    • Model: X870E AORUS PRO ICE
    • Supported CPU: Ryzen 9000 / 8000/ 7000 Series Processors for Socket AM5
    • Supported RAM: 4x DDR5, Max 256GB
    • Graphics Output: 2 x USB4 (Type-C) , 1 x HDMI, 1x HDMI (front)
    • Features: Realtek 2.5GbE LAN & Qualcomm Wi-Fi 7 QCNCM865
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU AMD Socket AM5, support for:
    AMD Ryzen 9000, 8000, 7000 Series Processors
    Chipset AMD X870
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    Audio Realtek ALC1220 CODEC
    * The back panel line out jack supports DSD audio.
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure
    7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    Expansion Slots
    PCI 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
    * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.


    When the M2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

    Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
    Memory
    Type DDR5
    Slots 4 DIMMs
    Supported Memory Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
    Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
    Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory
    Graphics
    Graphics Integrated Graphics Processor with AMD Radeon Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    * Support for native HDMI 2.1 TMDS compatible ports.

    - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
    * Support for HDMI 1.4 version
    (Graphics specifications may vary depending on CPU support.)
    Connector & Ports
    HDMI 1 x HDMI port
    USB (s) CPU+ASMedia USB4 controller:
    - 2 x USB4 USB Type-C ports on the back panel
    CPU:
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module Qualcomm Wi-Fi 7 QCNCM865
    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
    Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting
    Socket 3, M key, type 22110/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    * The M2B_CPU and M2C_CPU connectors will become unavailable when using the


    AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.
    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD
    storage devices
    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    Audio Realtek ALC1220 CODEC
    * The back panel line out jack supports DSD audio.
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure
    7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    Internal I/O Ports 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x SATA 6Gb/s connectors
    4 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x HDMI port (Note)
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
    1 x power button
    1 x reset button
    2 x temperature sensor headers
    1 x reset jumper
    1 x Clear CMOS jumper

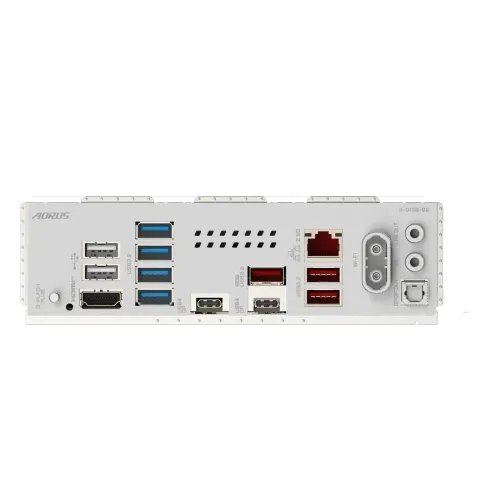

    Back Panel Connectors
    1 x Q-Flash Plus button
    2 x USB 2.0/1.1 ports
    1 x HDMI port (Note)
    4 x USB 3.2 Gen 1 ports
    2 x USB4® USB Type-C® port (DisplayPort (Note))
    3 x USB 3.2 Gen 2 Type-A ports (red)
    1 x RJ-45 port
    2 x antenna connectors (2T2R)
    1 x optical S/PDIF Out connector
    2 x audio jacks
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 Years


    GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard

    The GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard is a high-performance motherboard designed to support AMD Ryzen™ 9000, 8000, and 7000 Series processors, leveraging the power of the AMD Socket AM5 and advanced DDR5 memory technology. With four DIMM slots supporting dual-channel DDR5 memory and AMD EXPO™ Memory Module Support, it offers overclocking capabilities up to 8600MT/s, ensuring top-tier performance and compatibility. The motherboard features a robust digital twin 16+2+2 phases VRM solution, providing consistent and high-powered performance, ideal for overclocking and demanding applications. Efficient cooling solutions, such as the DDR Wind Blade for active cooling of memory modules and VRM Thermal Armor Advanced with I/O ZONE, keep your system cool under pressure. It also offers ultra-fast storage options with four M.2 slots, including three PCIe 5.0 x4 slots, for quick data access and transfer. Enhanced connectivity features such as 5GbE LAN, Wi-Fi 7, dual USB4 Type-C with DP-Alt, and HDMI provide versatile and high-speed networking options. The user-friendly design includes M.2 EZ-Match magnetic alignment, EZ-Latch Plus for PCIe and M.2 slots, and a friendly UI with multi-theme support, making installation and management a breeze. Additionally, the motherboard delivers superior audio quality with Realtek ALC1220 HD Audio and WIMA audiophile-grade capacitors, ensuring an immersive audio experience. Overall, the GIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard is the ultimate choice for those seeking to unleash the full potential of their system with advanced memory support, robust power delivery, efficient cooling solutions, and extensive connectivity options
