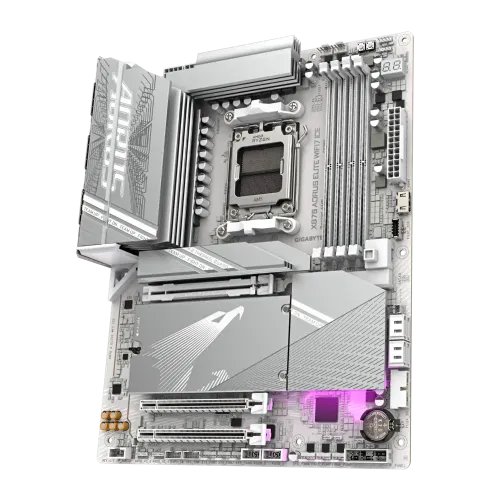

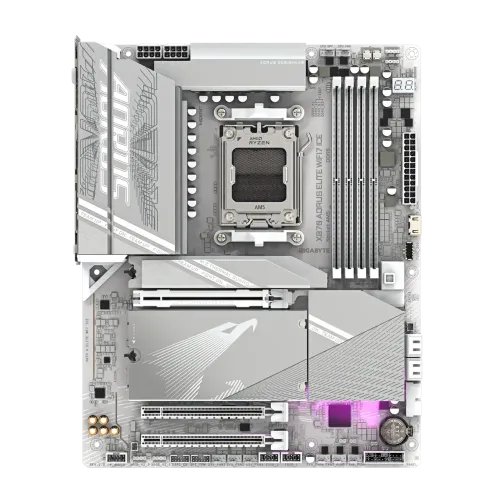

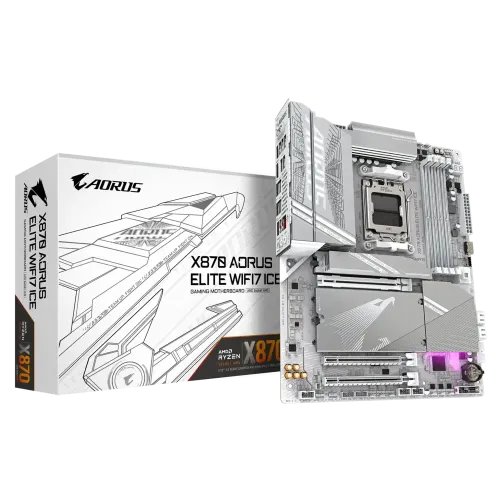

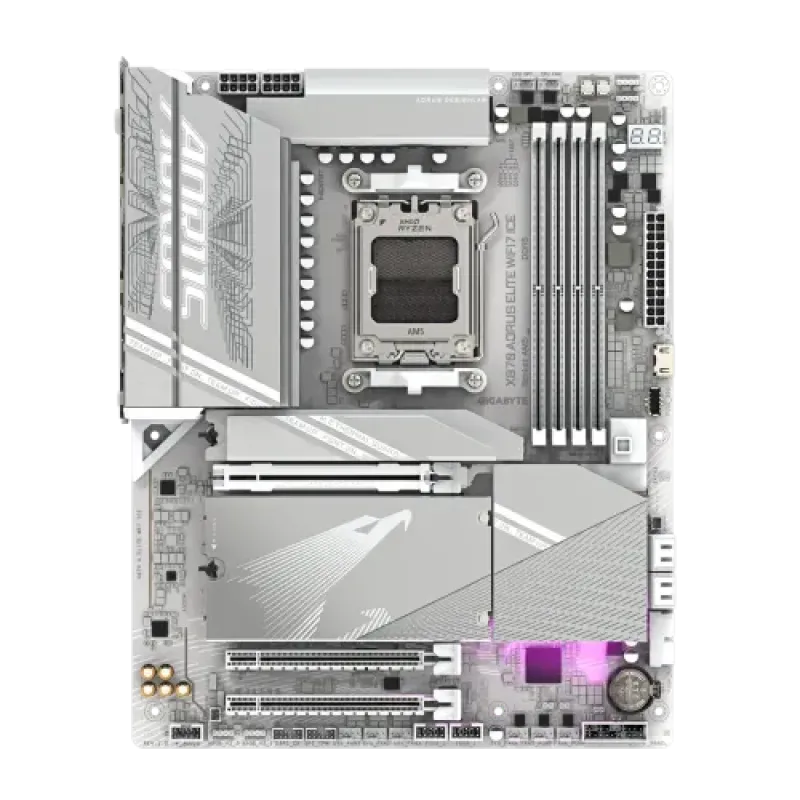

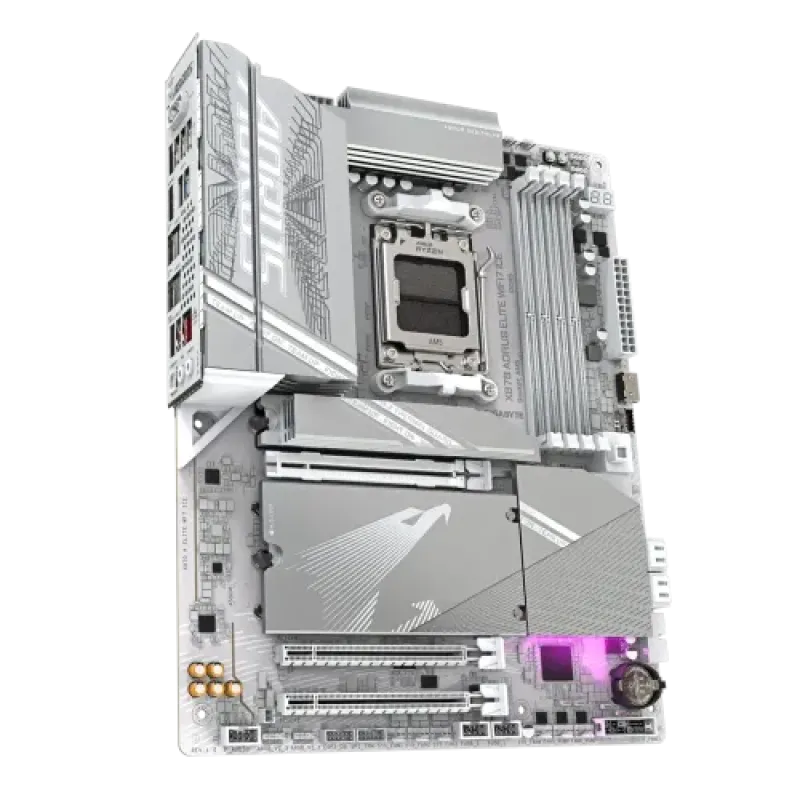

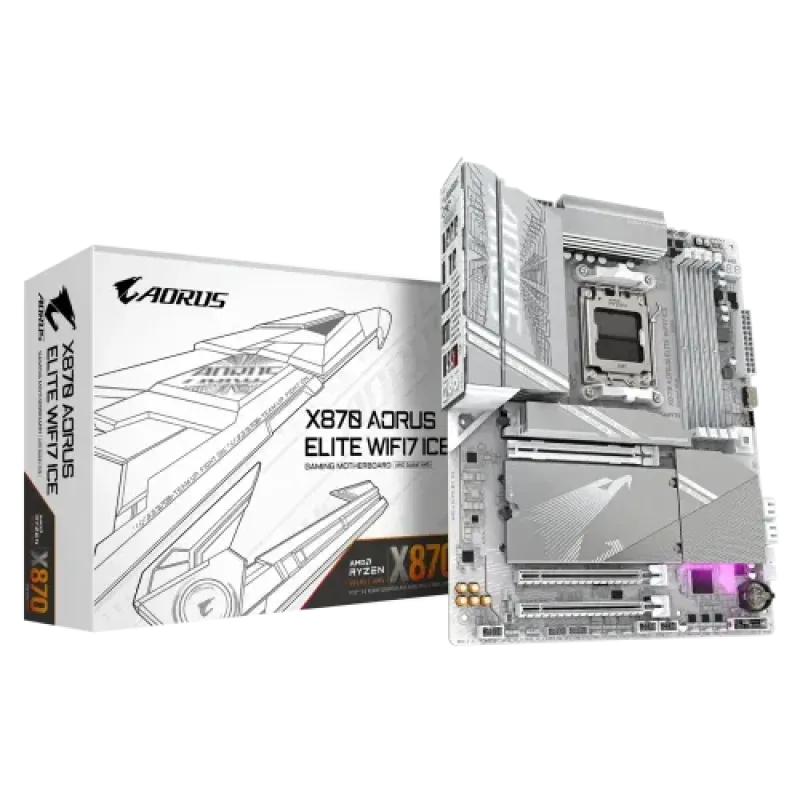

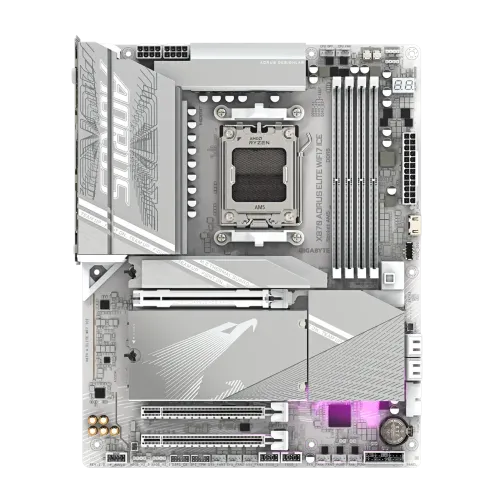

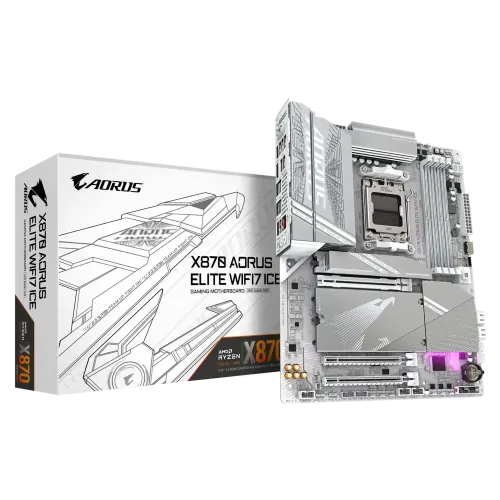

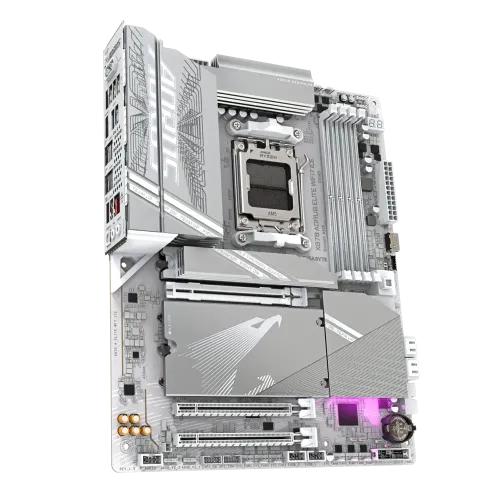

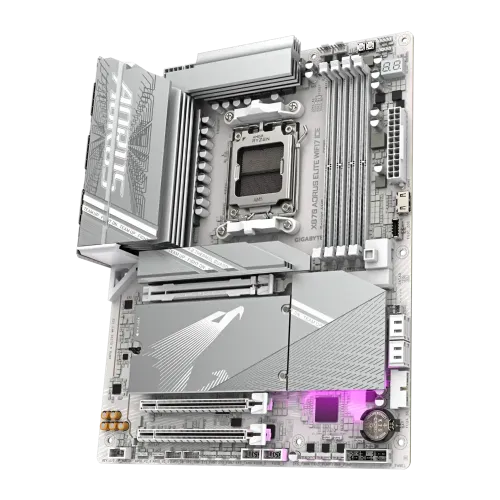

GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard

Name: GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard
Brand: Gigabyte
Availability: OutOfStock

Up Coming

GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard

0 reviews - Write a review

Price:

Regular Price: 0৳

Stock : Up Coming

Brand: Gigabyte

Model: X870 AORUS ELITE WIFI7 ICE

Key Features

Model: X870 AORUS ELITE WIFI7 ICE
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 256GB
Graphics Output: 2 x USB4 (Type-C), 1 x HDMI
Features: Realtek 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925

0৳

Cash Discount Price

Online / Cash Payment

0৳/month

Regular Price: 0৳

EMI Starting from 0৳/month.
Click here to check EMI Policy

Qty

Up Coming

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors
Chipset	AMD X870
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI	1 x HDMI port

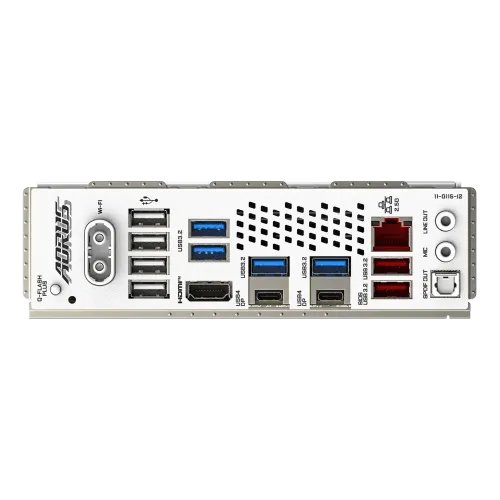

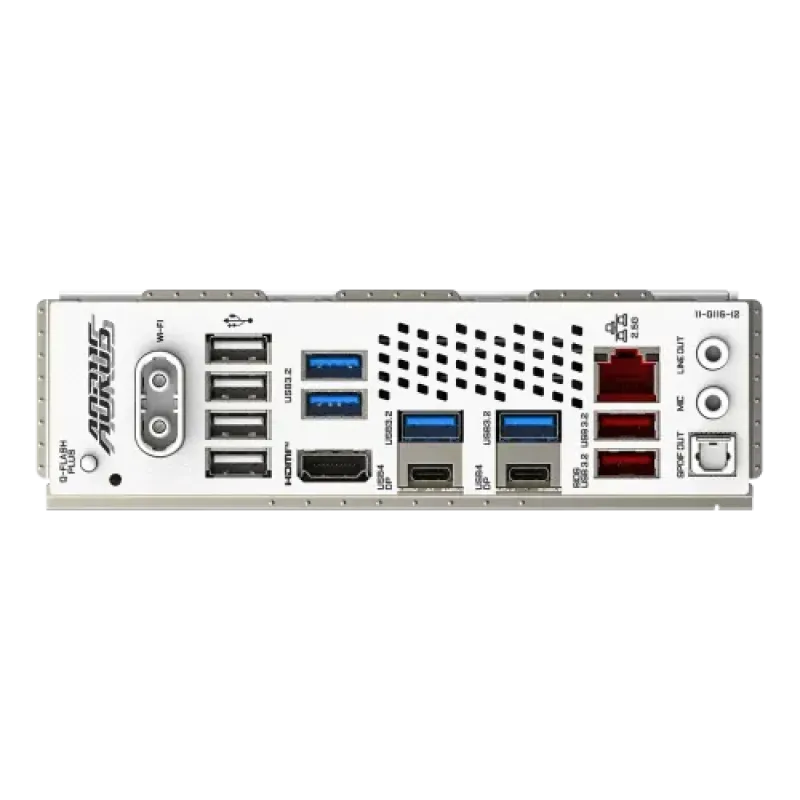

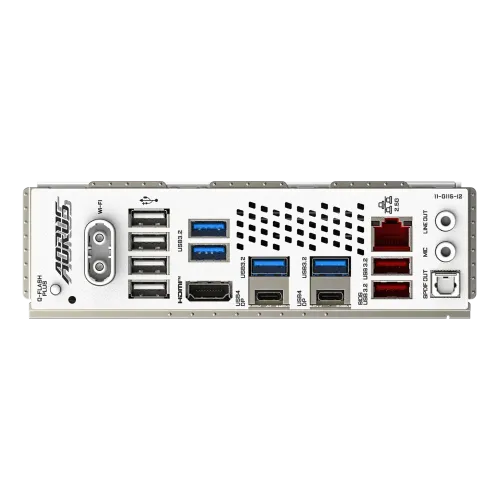

USB (s)	CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 1 port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support Smart Backup
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 Years

Features

AMD AM5 Socket Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series processors for top-tier performance.

Advanced DDR5 Memory Support: 4 DIMM slots supporting DDR5 memory up to 256 GB with speeds up to 8000MT/s for high-performance gaming and multitasking.

PCIe 5.0 x16 Slot: Provides the latest PCIe 5.0 support for cutting-edge GPUs, ensuring ultra-fast data transfer and performance.

Wi-Fi 7 and Bluetooth 5.4 Connectivity: Featuring MediaTek MT7925 for blazing fast wireless connections and advanced Bluetooth support.

Realtek ALC1220 HD Audio: Delivers premium audio quality with 7.1-channel surround sound and S/PDIF output for immersive audio experiences.

Four M.2 Slots for NVMe SSDs: Supports PCIe 5.0 x4 SSDs for ultra-fast storage, boosting boot times and data access speeds.

RAID Support: Offers RAID 0, 1, 5, and 10 for enhanced data redundancy and performance on NVMe and SATA storage devices.

2.5GbE LAN Port: Realtek 2.5GbE LAN ensures fast and stable wired internet connections for gaming, streaming, and downloads.

USB4 Type-C Ports: Dual USB4 ports offer faster data transfer and versatile connectivity, supporting DisplayPort functionality.

PCIe 4.0 & 3.0 Expansion Slots: Additional PCIe x16 slots for expansion cards, offering flexibility for future upgrades.

HDMI 2.1 Support: Integrated HDMI port supports 4K resolution at 60Hz for stunning visual clarity on external displays.

Dual Channel DDR5 Architecture: Optimizes memory bandwidth for increased data transfer efficiency and performance.

AMD EXPO and XMP Memory Profiles: Provides easy overclocking for supported memory modules, maximizing RAM speed and performance.

Robust 16+2+2 Phase VRM Design: Ensures consistent and reliable power delivery for overclocking and intensive tasks.

M.2 EZ-Latch Plus: Tool-less M.2 installation with magnetic alignment for easy SSD upgrades and installations.

EZ-Latch Plus PCIe Slots: Simplifies GPU installation with an easy-to-use latch system, perfect for quick upgrades.

RGB Gen2 LED Headers: Offers customizable lighting options with addressable RGB support for stunning aesthetics.

Q-Flash Plus Button: Allows users to update the BIOS without a CPU, ensuring easy system maintenance and updates.

Multiple USB 3.2 Gen 1 Ports: Offers versatile connectivity options with multiple high-speed USB ports for external devices.

Advanced Cooling Solutions: Features DDR Wind Blade and VRM Thermal Armor for active cooling, keeping your system cool under heavy loads.

Trusted Platform Module (TPM) Header: Enhances system security by supporting TPM for advanced data protection.

GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard

The GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard is a premium choice for users seeking top-notch performance and cutting-edge technology. Designed for AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard leverages the power of AMD Socket AM5 for ultimate efficiency and speed. It supports DDR5 memory with four DIMM slots, offering speeds of up to 8000MT/s, and a maximum capacity of 256 GB, perfect for gaming, content creation, and high-demand computing tasks.

Equipped with a PCIe 5.0 x16 slot, the motherboard ensures compatibility with the latest GPUs, delivering unmatched graphics performance. For storage, it includes four M.2 slots, with support for PCIe 5.0 and PCIe 4.0 SSDs, ensuring rapid data access and ultra-fast boot times. The addition of RAID 0, 1, 5, and 10 support provides enhanced data security and performance, catering to both NVMe and SATA storage devices.

Connectivity is future-proofed with Wi-Fi 7 and Bluetooth 5.4, along with dual USB4 Type-C ports for high-speed data transfer and HDMI 2.1 for 4K video output. The Realtek ALC1220 HD Audio system offers premium sound quality, with 7.1-channel surround sound and S/PDIF support for immersive gaming and media experiences.

Engineered with a 16+2+2 phase VRM power design, the motherboard ensures stable power delivery for overclocking and demanding tasks. It also features advanced cooling solutions such as DDR Wind Blade and VRM Thermal Armor to keep the system cool under pressure.

With RGB Gen2 headers, EZ-Latch Plus for easy component installation, and Q-Flash Plus for quick BIOS updates, the GIGABYTE X870 AORUS ELITE WIFI7 motherboard is built for performance, reliability, and ease of use.
