GIGABYTE INTEL H610M K DDR5 Micro ATX Motherboard

Features

• LGA1700 Socket Compatibility: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors.
• Intel® H610 Express Chipset: Delivers reliable performance and stability.
• DDR5 Memory Support: Compatible with DDR5 5600/5200/4800/4400 MT/s for high-speed memory.
• Dual Channel Memory Architecture: Enhances data transfer speeds and system responsiveness.
• Up to 128 GB RAM: Supports large memory capacities with 64 GB per DIMM slot.
• Extreme Memory Profile (XMP) Support: Optimizes memory performance with easy configuration.
• Integrated Intel® HD Graphics: Includes HDMI and DisplayPort for high-resolution display support.
• HDMI 2.1 and DisplayPort 1.2 Support: Ensures compatibility with the latest display technologies and HDCP 2.3.
• Realtek® High Definition Audio: Provides immersive 2/4/5.1/7.1-channel audio experiences.
• Realtek® GbE LAN: Offers reliable 1 Gbps/100 Mbps/10 Mbps network connectivity.
• PCIe 4.0 x16 Slot: Supports high-speed graphics cards and expansion cards.
• PCIe 3.0 x1 Slot: Ideal for additional peripherals and expansion.
• M.2 Connector for SSDs: Provides PCIe 3.0 x4/x2 support for fast storage options.
• Dual SATA 6Gb/s Connectors: Connects additional storage devices with high-speed data transfer.
• Four USB 3.2 Gen 1 Ports: Facilitates fast data transfers and peripheral connections.
• Six USB 2.0/1.1 Ports: Offers versatile connectivity for various USB devices.
• 24-pin ATX and 8-pin ATX 12V Power Connectors: Ensures stable power delivery to the motherboard.
• Multiple Fan Headers: Includes CPU and system fan headers for effective cooling solutions.
• Comprehensive Internal Headers: Provides connections for front panel, audio, USB, and TPM modules.
• iTE® I/O Controller Chip: Manages system voltages, temperatures, and fan speeds for enhanced system health monitoring.
• Supported Operating Systems: Compatible with Windows 10 and Windows 11 64-bit for a broad range of software applications.

GIGABYTE INTEL H610M K DDR5 Micro ATX Motherboard

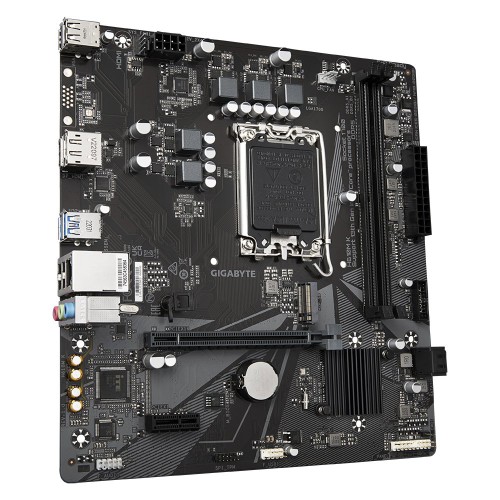

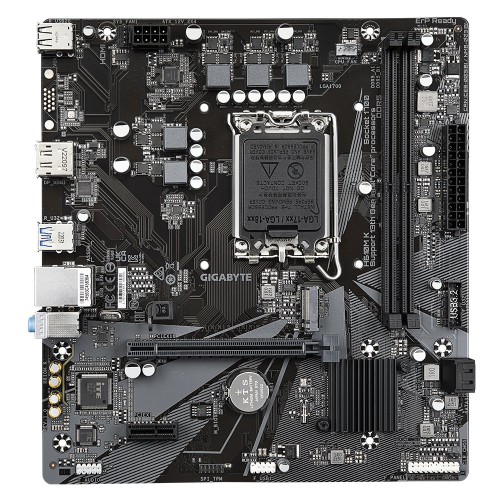

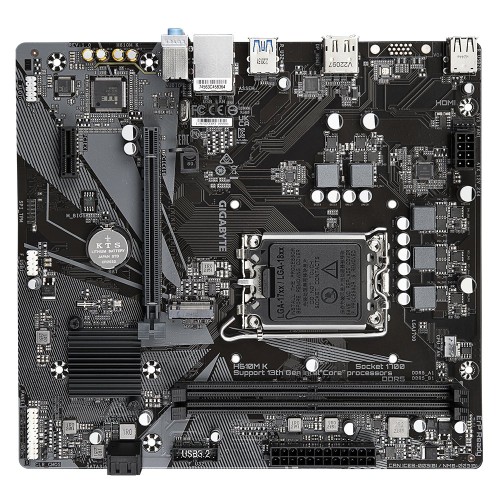

The GIGABYTE H610M K DDR5 motherboard is a high-performance, micro ATX motherboard designed to meet the needs of modern computing with its advanced features and robust capabilities. Featuring an LGA1700 socket, this motherboard supports the latest 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors, ensuring compatibility with cutting-edge CPUs for superior performance.

Equipped with the Intel® H610 Express Chipset, the H610M K DDR5 motherboard delivers enhanced stability and reliability. It supports DDR5 memory modules, offering speeds of up to 5600 MT/s for 13th Generation Intel® Core™ i9/i7 processors and up to 4800 MT/s for 13th Generation i5/i3 and 12th Generation processors. With 2 DIMM slots supporting up to 128 GB of RAM, this motherboard caters to demanding applications and multitasking needs, while Extreme Memory Profile (XMP) support allows for easy overclocking.

For graphics and video output, the H610M K DDR5 features an integrated Intel® HD Graphics processor with HDMI 2.1 and DisplayPort 1.2, supporting resolutions up to 4096x2160@60 Hz and 4096x2304@60 Hz, respectively. This ensures high-quality visuals for gaming and media consumption.

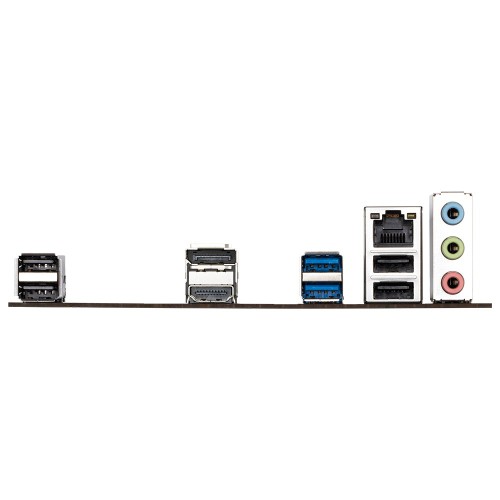

Connectivity is a strong suit of this motherboard, with four USB 3.2 Gen 1 ports, six USB 2.0/1.1 ports, and an RJ-45 LAN port powered by the Realtek® GbE LAN chip for reliable network performance. The motherboard also includes PCIe 4.0 x16 and PCIe 3.0 x1 slots for expansion, as well as an M.2 connector and two SATA 6Gb/s connectors for flexible storage options.

Designed for versatility and ease of use, the GIGABYTE H610M K DDR5 is compatible with Windows 10 and Windows 11 64-bit operating systems, making it an excellent choice for a wide range of users from gamers to professionals. With a 3-year warranty, it promises durability and peace of mind.
