GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard

GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
Save: 1,209৳
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
0 reviews - Write a review
  • Price: 10,000৳
  • Regular Price: 11,209৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: GIGABYTE H610M H V3
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 2 x DDR4 up to 64 GB 3200MHz
    • Graphics Output: 1 x D-Sub, 1 x HDMI
    • Features: Realtek GbE LAN
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    L3 cache varies with CPU
    Chipset Intel H610 Express Chipset
    BIOS 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor Micro ATX Form Factor; 22.3cm x 19.3cm
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Memory
    Type DDR4
    Slots 2 x DDR DIMM sockets
    Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory Up to 64 GB (32 GB single DIMM capacity) of system memory
    Graphics
    Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
    Connector & Ports
    HDMI 1 x HDMI 2.1 port
    D-Sub (s) 1 x D-Sub port
    USB (s) Chipset:
    - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
    LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
    Supported Storage Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
    support)
    - 4 x SATA 6Gb/s connectors
    Audio 3 x audio jacks
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper
    1 x chassis intrusion header

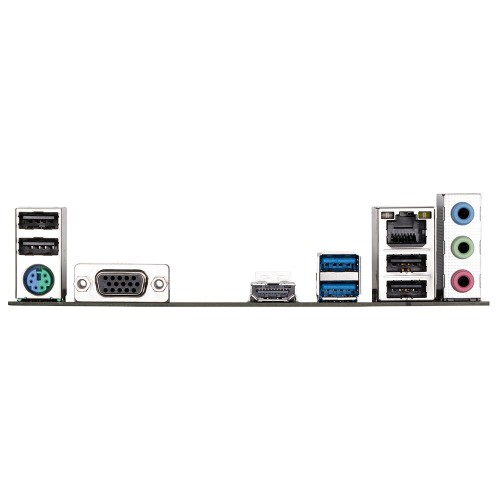

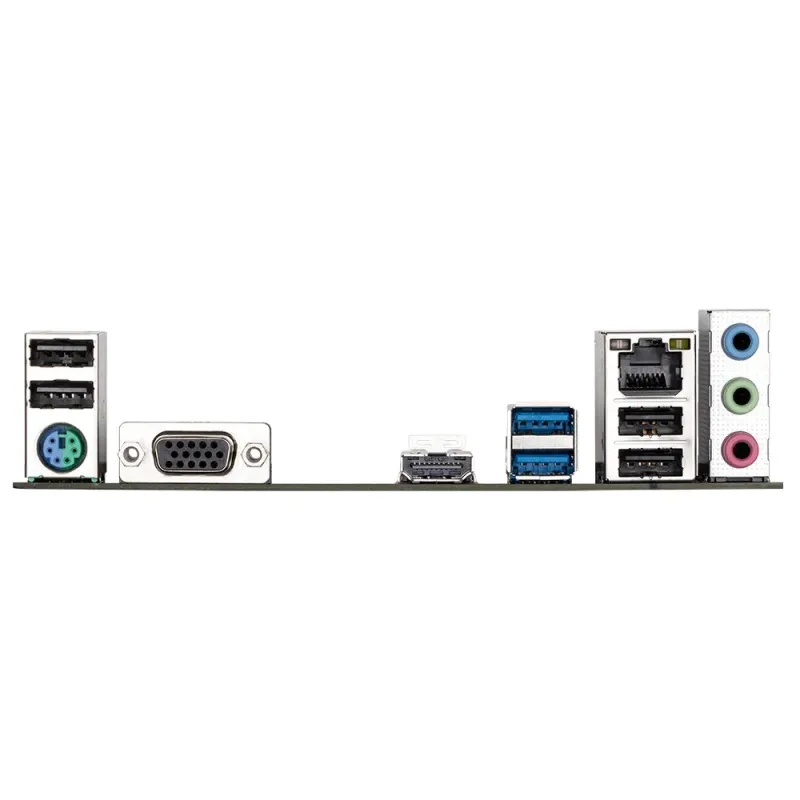

    Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    - @BIOS
    - EasyTune
    - Smart Backup
    - System Information Viewer
    Support for Q-Flash
    Bundled Software Norton® Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 years

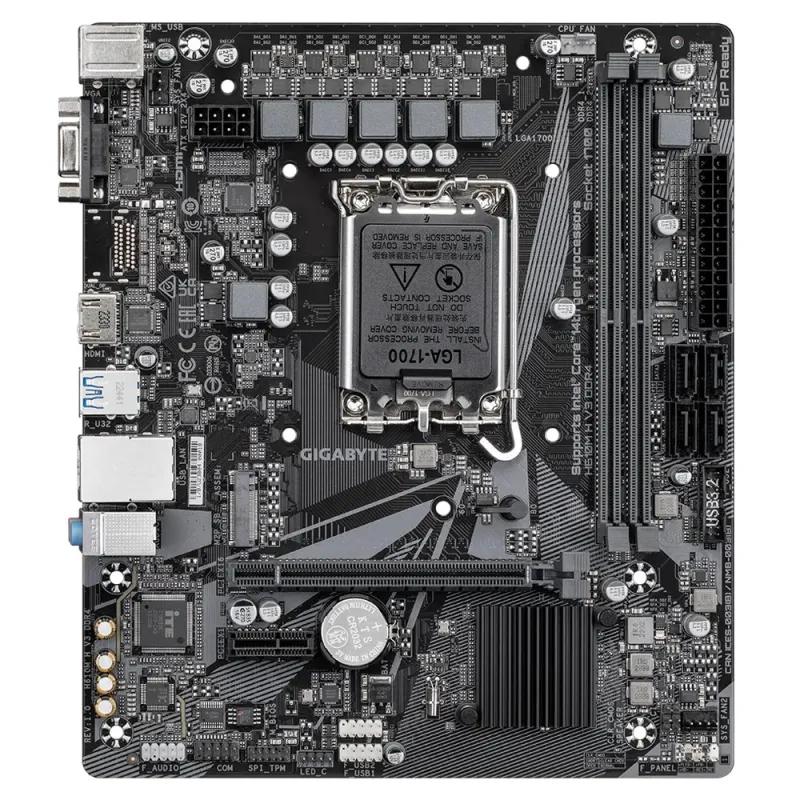

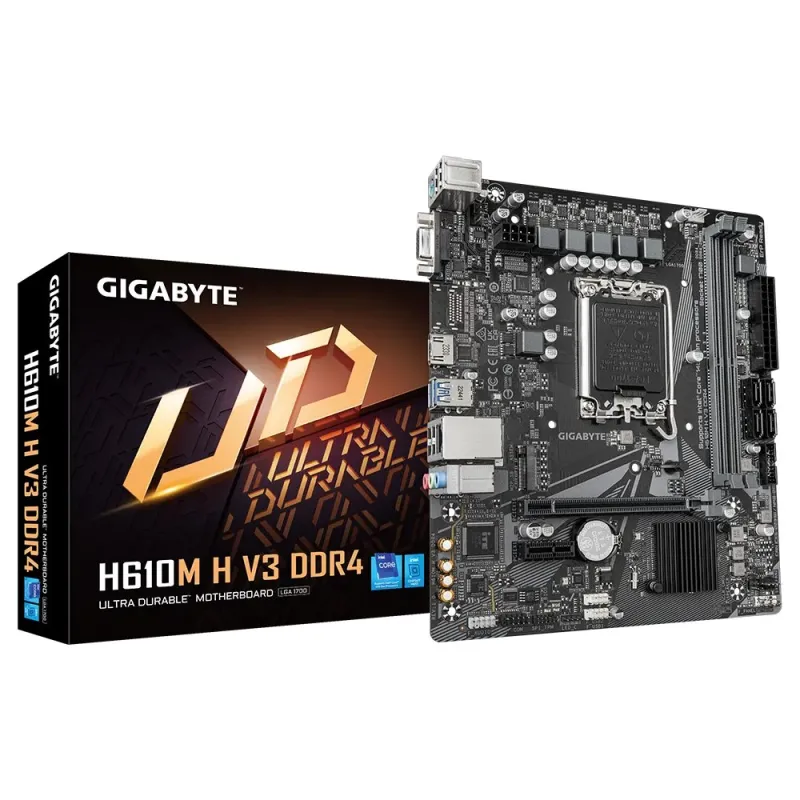

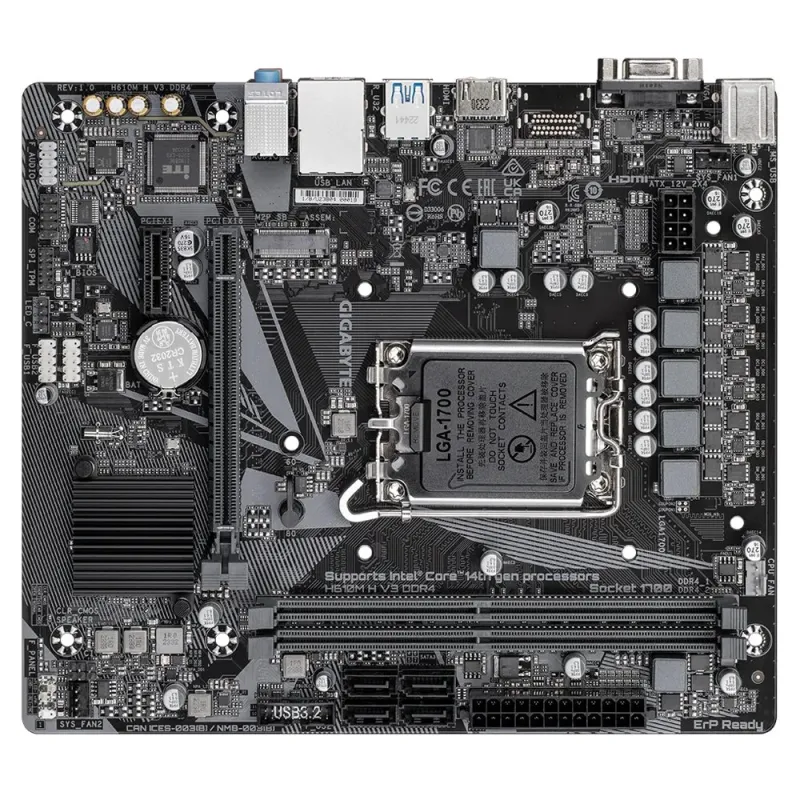

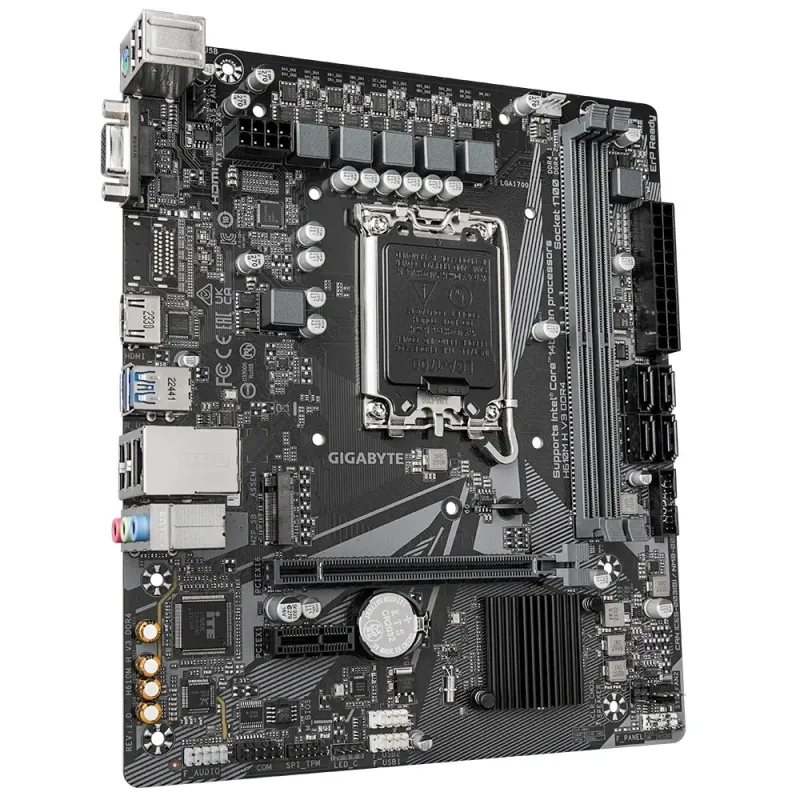

    GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard

    The GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard is designed to deliver exceptional performance and reliability for a wide range of computing needs. It supports 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron processors with its LGA1700 socket, ensuring compatibility with the latest CPUs. The motherboard features a robust 4+1+1 Hybrid Digital VRM design, providing stable power delivery to the CPU. It supports dual-channel non-ECC unbuffered DDR4 memory with two DIMM slots, allowing for up to 64GB of RAM, which is ideal for multitasking and demanding applications. The inclusion of a PCIe 4.0 x16 slot enhances graphics performance, while the PCIe 3.0 x4 M.2 slot supports high-speed NVMe SSDs for faster storage solutions. Connectivity options include Realtek GbE LAN for reliable internet connections and multiple display outputs such as HDMI, DVI-D, and D-Sub ports. The motherboard also boasts high-quality audio capacitors and an audio noise guard for an immersive sound experience. Designed for durability, it incorporates anti-sulfur resistors and solid capacitors to improve longevity and performance. The Smart Fan 6 technology ensures efficient cooling, keeping the system running smoothly under heavy loads. Whether you are building a new PC or upgrading an existing one, the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard offers a perfect blend of performance, reliability, and advanced features to meet your computing needs.

    Write a review

    Please login or register to review

    What is the price of GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard in Bangladesh?

    The latest price of GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard in Bangladesh is 10,000৳ You can buy the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
