GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard

GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
Save: 1,200৳
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
0 reviews - Write a review
  • Price: 9,100৳
  • Regular Price: 10,300৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: GIGABYTE H510M K

    • Key Features

    • Model: H510M K
    • Type: DDR4
    • Slots: 2 x DDR4 DIMM
    • Chipset: Intel H510
    • Form Factor: mATX
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification


    Processor
    Supported CPU LGA1200 package:
    11th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
    10th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel® Core i3
    processors/Intel Pentium processors/Intel Celeron processors
    L3 cache varies with CPU
    Memory
    Memory 11th Generation Intel Core i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    10th Generation Intel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MT/s memory modules
    10th Generation Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MT/s memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Storage
    Storage 1 x M.2 connector:
    Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD
    2 x SATA 6Gb/s connectors
    Graphics
    Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Audio & Microphone
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel
    audio, access the audio software for audio settings.
    Networking & Connectivity
    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)
    Technical Info
    OS Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    BIOS 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Ports
    I/O Port 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x serial port header
    1 x Clear CMOS jumper

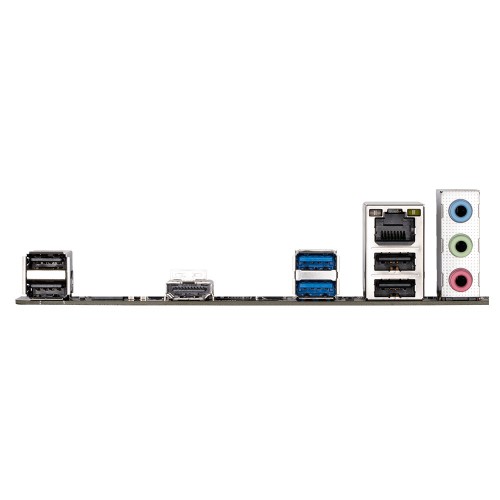

    Back Panel Connectors
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Special Features
    Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Speacial Features Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each
    application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Physical Specification
    Form Factor ATX
    Expansion Slots 1 x PCI Express x16 slot:
    Supporting PCIe 4.0 and running at x16
    (PCIe 4.0 is only supported by 11th Generation processors.)
    Chipset:
    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
    Warranty Information
    Warranty 3 Years
    Description


    GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard in Bangladesh

    The GIGABYTE H510M K Micro ATX Motherboard is designed to support 11th and 10th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium, and Celeron processors with an LGA1200 socket. It incorporates the Intel® H510 Express Chipset and supports up to 64 GB of DDR4 memory across two DIMM slots. For onboard graphics, it offers an HDMI port with a maximum resolution of 4096x2160@30 Hz, depending on CPU support. The motherboard features Realtek® Audio CODEC for high-definition audio and Realtek® GbE LAN for network connectivity. Expansion slots include one PCIe 4.0 x16 slot (for 11th Gen processors) and one PCIe 3.0 x1 slot. Storage options include one M.2 connector and two SATA 6Gb/s connectors. USB connectivity is provided through four USB 3.2 Gen 1 ports and six USB 2.0/1.1 ports. Additional features include support for RGB LED strips, multiple internal I/O connectors, and comprehensive BIOS support.


    Availability and Usability

    The GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard is available at SkyLand BD. This motherboard is perfect for building a powerful and versatile PC that meets modern computing needs. It supports the latest Intel processors and offers robust connectivity options, making it suitable for both gaming and professional use. With its advanced features and reliable performance, the GIGABYTE H510M K ensures a seamless and efficient computing experience. Check the "GIGABYTE H510M K Price in BD" at SkyLand BD to get this high-performance motherboard at a competitive price.


    Highlights

    • Supports 11th and 10th Gen Intel Core processors
    • Dual-channel DDR4 memory support
    • PCIe 4.0 and PCIe 3.0 expansion slots
    • Realtek High Definition Audio
    • Comprehensive connectivity with multiple USB ports
