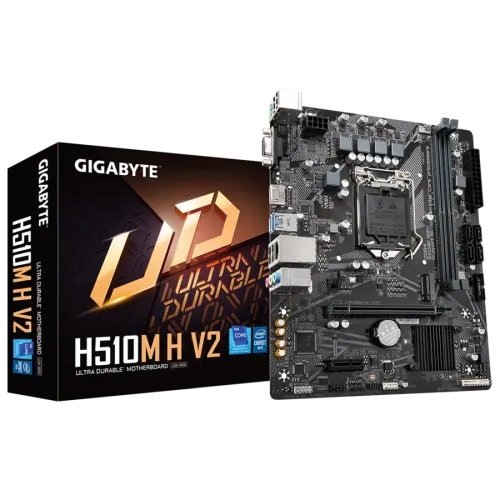

GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard

GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard
GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard
Save: 1,200৳
GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard
GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard
GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard
0 reviews - Write a review
  • Price: 9,400৳
  • Regular Price: 10,600৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: H510M H V2

    • Key Features

    • Model: H510M H V2
    • Supported CPU: 10th Gen Intel Core Processors (LGA1200)
    • Supported RAM: DDR4, 2 DIMMs, up to 64 GB
    • Graphics Output: 1 x D-Sub, 1 x HDMI
    • Features: Intel GbE LAN with cFosSpeed
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard

    Specification

    Supported CPULGA1200 package:
    10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
    L3 cache varies with CPU
    ChipsetIntel H470 Express Chipset
    BIOS1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor: 22.6cm x 18.5cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    PCICPU:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    TypeDDR4
    Slots2 x DIMM
    Supported Memory10th Generation Intel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    10th Generation Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer to "Memory Support List" for more information.)
    Maximum Memory64GB (32 GB single DIMM capacity)
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    HDMI1 x HDMI port
    D-Sub (s)1 x D-Sub port
    USB (s)Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    RAIDRAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
    Internal I/O PortsInternal I/O Connectors:

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x serial port header
    1 x Clear CMOS jumper

    Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x HDMI port
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Special FeaturesSupport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    LAN bandwidth management software
    Manufacturing Warranty03 Years Warranty

    Description

    GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard

    The GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard is a compact yet powerful solution tailored to support 10th Gen Intel Core Processors. With a Dual Channel Non-ECC Unbuffered DDR4 design and two DIMM slots, it facilitates efficient and high-speed memory configurations. The motherboard offers versatile display options through 1 x D-Sub and 1 x HDMI ports, ensuring flexibility in connecting monitors and displays. Audio enthusiasts will appreciate the 8-channel HD Audio with High-Quality Audio Capacitors, delivering an immersive sound experience for multimedia and gaming. Its NVMe PCIe Gen3 x4 2280 M.2 Connector ensures swift data transfer for compatible storage devices, contributing to a more responsive system. Equipped with GbE LAN featuring Bandwidth Management, the motherboard optimizes network performance for seamless online activities. The Smart Fan 5 technology, incorporating Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, allows efficient cooling management to maintain optimal temperatures. The user-friendly GIGABYTE APP Center provides easy access to utilities and applications for system customization and management. Additionally, the motherboard is designed with an Anti-Sulfur Resistors feature, enhancing durability and reliability, making it an ideal choice for various computing needs. In summary, the GIGABYTE H510M H V2 combines performance, connectivity, and user-friendly features, providing a solid foundation for building a robust and efficient PC system.

    Write a review

    Please login or register to review

    What is the price of GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard in Bangladesh?

    The latest price of GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard in Bangladesh is 9,400৳ You can buy the GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
