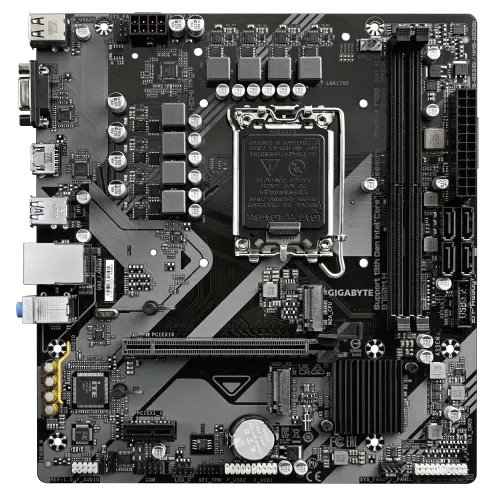

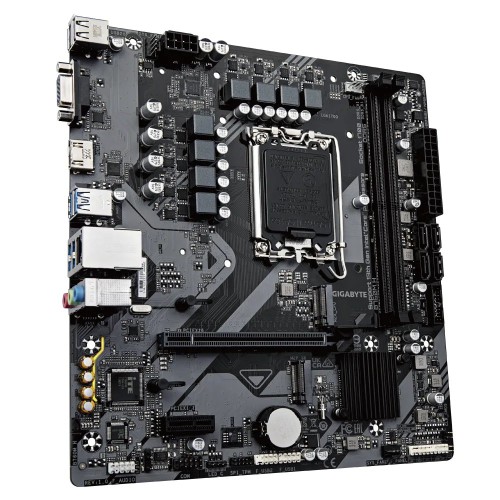

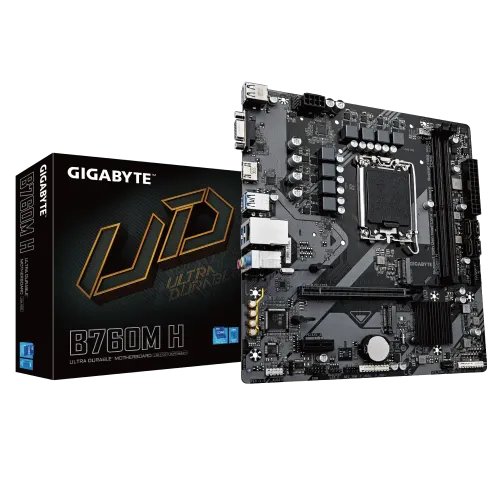

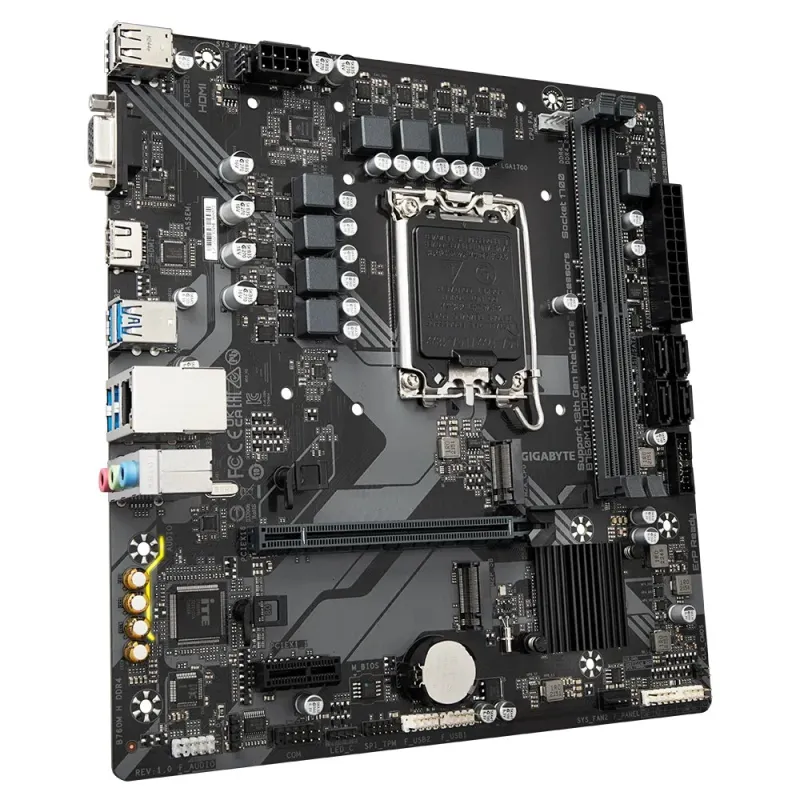

GIGABYTE B760M H DDR5 Micro ATX Motherboard

GIGABYTE B760M H DDR5 Micro ATX Motherboard
GIGABYTE B760M H DDR5 Micro ATX Motherboard
GIGABYTE B760M H DDR5 Micro ATX Motherboard
GIGABYTE B760M H DDR5 Micro ATX Motherboard
Save: 2,750৳
GIGABYTE B760M H DDR5 Micro ATX Motherboard
GIGABYTE B760M H DDR5 Micro ATX Motherboard
GIGABYTE B760M H DDR5 Micro ATX Motherboard
GIGABYTE B760M H DDR5 Micro ATX Motherboard
GIGABYTE B760M H DDR5 Micro ATX Motherboard
0 reviews - Write a review
  • Price: 14,300৳
  • Regular Price: 17,050৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: B760M H DDR5

    • Key Features

    • Model: B760M H DDR5
    • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
    • Supported RAM: 2 x DDR5, Max 128GB 8000(O.C.)
    • Graphics Output: 1x HDMI, 1 x D-Sub
    • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    L3 cache varies with the CPU
    Chipset Intel B760 Express Chipset
    BIOS 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
    Audio Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    Expansion Slots
    PCI CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Memory
    Type DDR5
    Slots 2
    Supported Memory Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory Sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Graphics
    Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
    Connector & Ports
    HDMI 1x HDMI
    D-Sub (s) 1 x D-Sub port
    USB (s) Chipset:
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Supported Storage CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio 3 x audio jacks
    Internal I/O Ports Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    1 x Clear CMOS jumper

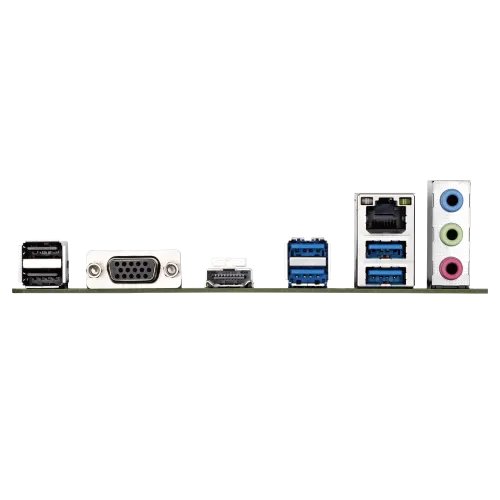

    Back Panel Connectors
    2 x USB 2.0/1.1 ports
    1 x D-Sub port
    1 x HDMI port
    4 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    3 x audio jacks
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 years


    GIGABYTE B760M H DDR5 Micro ATX Motherboard

    The GIGABYTE B760M H DDR5 Micro ATX motherboard is a versatile and feature-rich platform designed for enthusiasts and mainstream users alike. It supports 14th, 13th, and 12th Gen Intel processors via the LGA1700 socket, providing a future-proof foundation for various computing needs. With support for up to 128GB of DDR5 RAM across two DIMM slots, this motherboard can handle memory speeds up to 8000 MHz when overclocked, ensuring smooth multitasking and high performance. The motherboard includes both HDMI and D-Sub ports for flexible graphics output options, catering to different display setups. Equipped with a Realtek GbE LAN chip, the GIGABYTE B760M H ensures reliable network connectivity with speeds up to 1 Gbps. The power delivery system features a Hybrid 6+1+1 Phases Digital VRM Solution, providing stable power to the CPU and other critical components. For storage, the motherboard offers two PCIe 4.0 x4 M.2 connectors, enabling fast data transfer rates for SSDs. The EZ-Latch PCIe 4.0x16 Slot with a quick-release design simplifies hardware upgrades and installations. Cooling is efficiently managed with the Smart Fan 6 system, which includes multiple temperature sensors and hybrid fan headers, along with a fan stop feature for quieter operation. Overall, the GIGABYTE B760M H DDR5 Micro ATX motherboard delivers a compelling blend of performance, connectivity, and advanced features, making it an excellent choice for gamers, content creators, and power users looking for a reliable and powerful base for their PC builds.
