GIGABYTE B760M H DDR4 mATX Motherboard

GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
Save: 2,450৳
GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
GIGABYTE B760M H DDR4 mATX Motherboard
  • Price: 13,500৳
  • Regular Price: 15,950৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: B760M H DDR4
  • অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    L3 cache varies with the CPU
    Chipset Intel B760 Express Chipset
    BIOS 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    Expansion Slots
    PCI CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Memory
    Type DDR4
    Slots 2
    Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory up to 64GB (32 GB single DIMM capacity) of system memory
    Graphics
    Graphics Integrated Graphics Processor-Intel HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
    Connector & Ports
    HDMI 1x HDMI
    D-Sub (s) 1x D-Sub
    USB (s) Chipset:
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
    Supported Storage CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio 3 x audio jacks
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 years

    Description

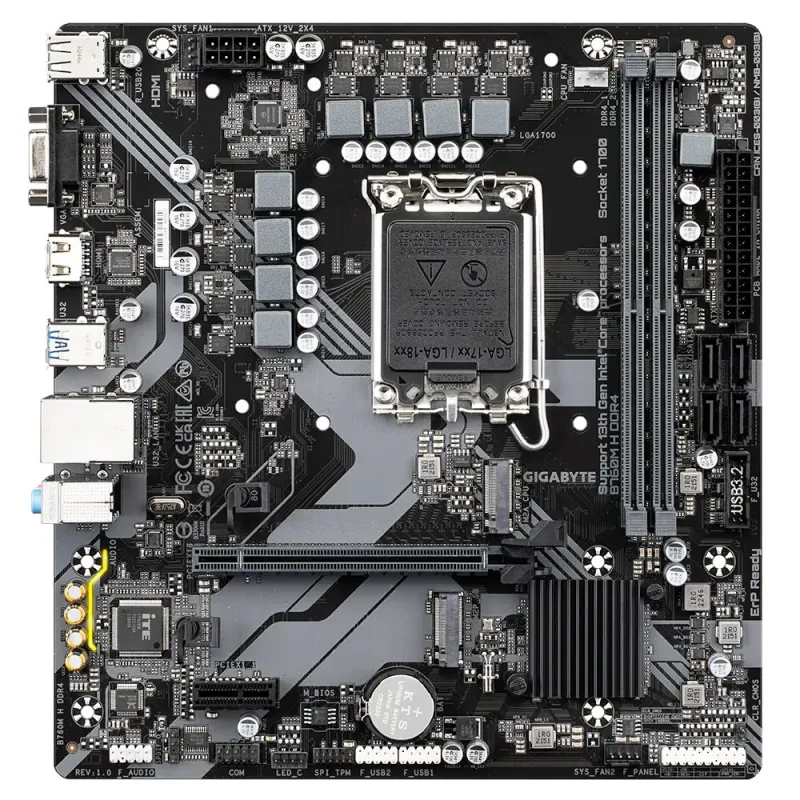

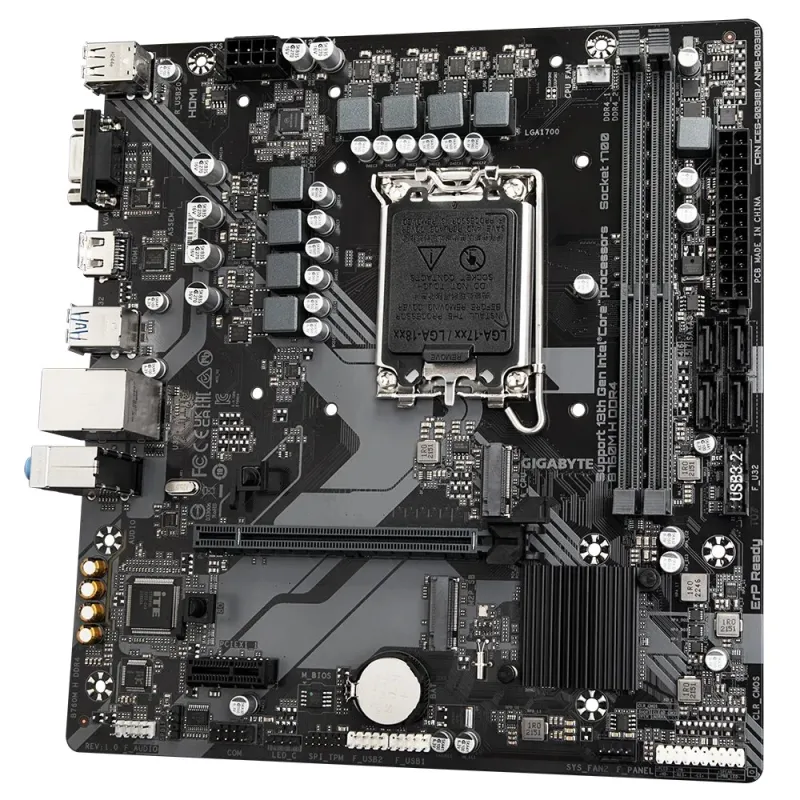

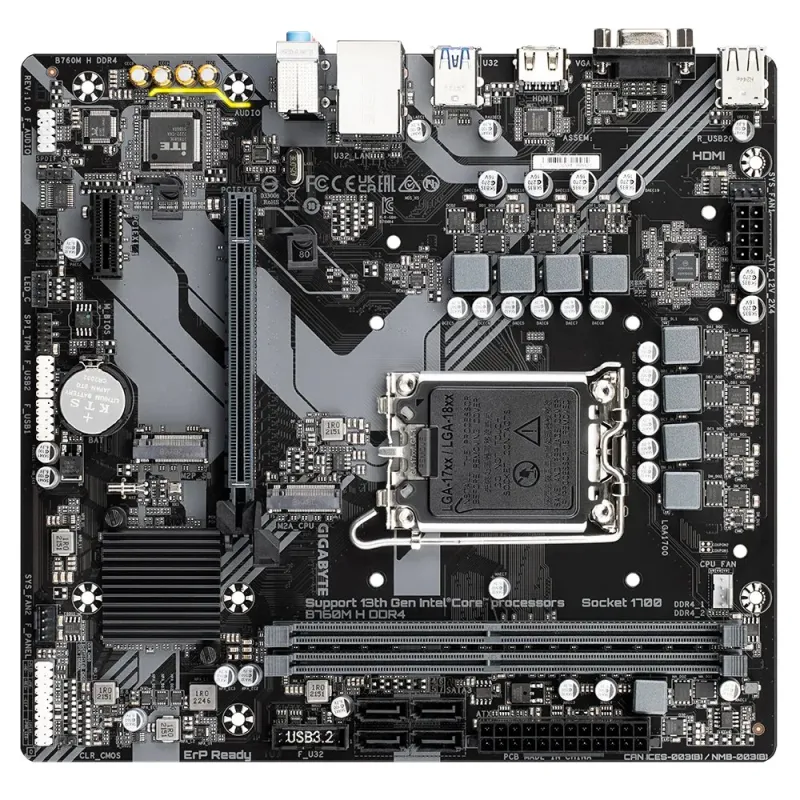

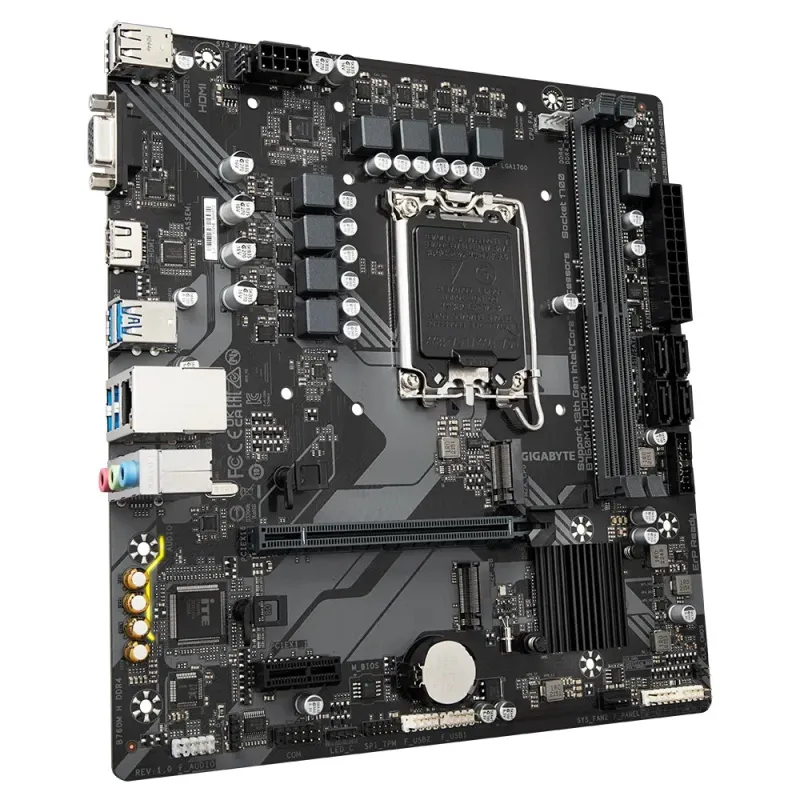

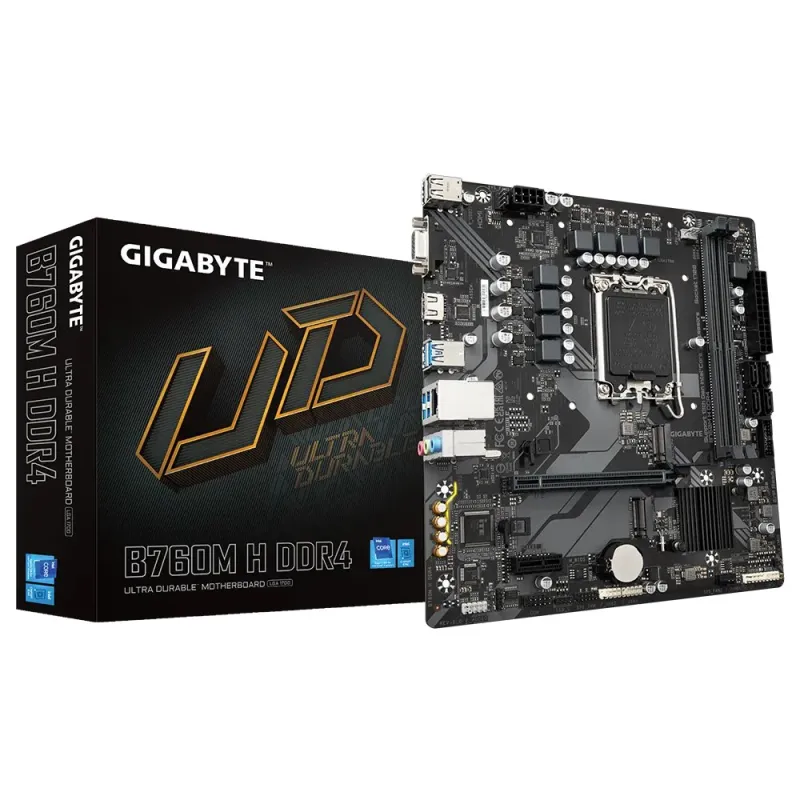

    GIGABYTE B760M H DDR4 mATX Motherboard

    The GIGABYTE B760M H DDR4 mATX Motherboard is designed for Intel Socket LGA 1700 and supports 14th, 13th, and 12th Generation Series Processors. The motherboard's Hybrid 6+1+1 Phases Digital VRM Solution provides unrivaled performance for dependable computing. The Dual Channel DDR4 with 2 DIMMs supports the XMP Memory Module for greater memory capacities. The motherboard has two PCIe 4.0 x4 M.2 connectors for storage, ensuring compatibility with next-generation storage devices. The 14th Gen Motherboard includes an EZ-Latch PCIe 4.0 x16 Slot with a Quick Release Design for easy hardware installation. It also offers dependable network connectivity with GbE LAN and expanded connectivity possibilities with HDMI and D-Sub connectors. The Smart Fan 6 technology improves cooling performance even further by using numerous temperature sensors and hybrid fan headers with FAN STOP functionality, making the GIGABYTE B760M H DDR4 mATX Motherboard a reliable and effective alternative for a variety of computing applications.

    Write a review

    Please login or register to review

    What is the price of GIGABYTE B760M H DDR4 mATX Motherboard in Bangladesh?

    The latest price of GIGABYTE B760M H DDR4 mATX Motherboard in Bangladesh is 13,500৳ You can buy the GIGABYTE B760M H DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
