GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD

GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
0 reviews - Write a review
  • Price: 22,400৳
  • Regular Price: 24,200৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: GIGABYTE B760M GAMING X AX DDR5
    • Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Description

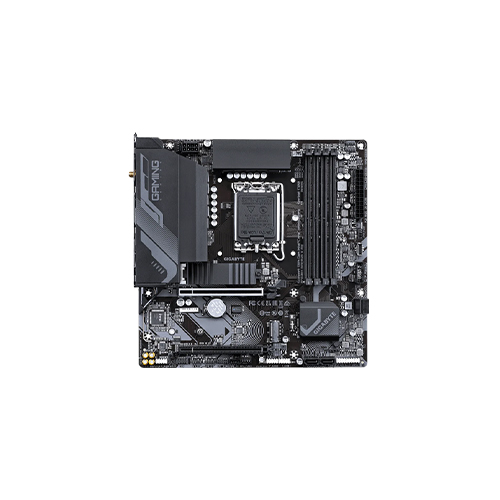

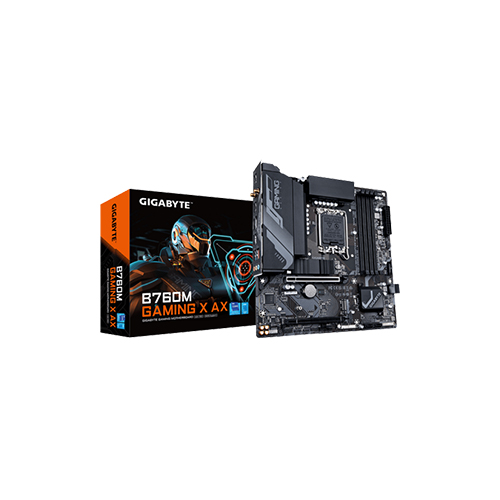

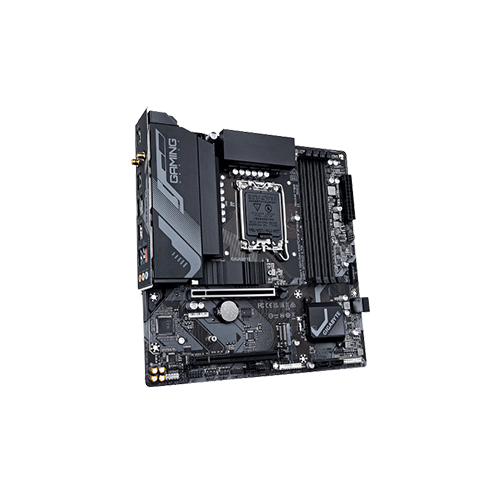

    GIGABYTE B760M GAMING X AX DDR5 13th and 12th Gen Intel mATX Motherboard

    The GIGABYTE B760M GAMING X AX is a high-performance motherboard designed for gaming enthusiasts and power users. It supports both 13th and 12th-generation Intel processors with its LGA 1700 socket, ensuring compatibility with the latest CPU technologies. This motherboard is its Hybrid 8+1+1 Phases Digital VRM solution, which provides exceptional power delivery and stability for optimal performance. This ensures that the motherboard can handle demanding tasks and overclocking without any issues. The motherboard supports Dual Channel DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With four DIMM slots and XMP memory module support, users can easily install and configure high-speed RAM for smooth and responsive system performance. The GIGABYTE B760M GAMING X AX motherboard. It features two PCIe 4.0 x4 M.2 connectors, enabling lightning-fast storage solutions. Additionally, the motherboard incorporates an advanced thermal design and M.2 Thermal Guard to maintain VRM power stability and optimize M.2 SSD performance, preventing thermal throttling and ensuring reliable operation. The EZ-Latch feature of the PCIe 4.0x16 slot allows for easy installation and removal of graphics cards, making it convenient for users who frequently upgrade their GPUs. The motherboard also offers fast networking capabilities with 2.5GbE LAN and Wi-Fi 6E 802.11ax support, ensuring low latency and high-speed connectivity for online gaming and other network-intensive tasks. The GIGABYTE B760M GAMING X AX provides a front USB-C® port with a 10Gb/s transfer speed, as well as DisplayPort (DP) and HDMI ports for multiple display setups. This allows users to connect various peripherals and external devices with ease. The Smart Fan 6 feature is designed to keep the system cool and quiet. It includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, enabling precise control over fan speeds and optimizing cooling performance while minimizing noise levels. The Q-Flash Plus, allows users to update the motherboard's BIOS firmware without the need to install the CPU, memory, and graphics card. This feature provides a convenient and hassle-free method for keeping the system up to date with the latest firmware releases. The GIGABYTE B760M GAMING X AX DDR5 motherboard offers a comprehensive range of features and technologies for gamers and power users seeking exceptional performance, reliable connectivity, and convenient upgradability.

    Specification

    Supported CPULGA1700 socket: Support for the 13th and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
    L3 cache varies with the CPU
    ChipsetIntel B760 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    PCI1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    TypeDDR5
    Slots4
    Supported MemorySupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory192GB
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    HDMI1x HDMI
    Display Port (s)1x DisplayPort
    USB (s)Chipset:
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    1 x USB 2.0/1.1 port on the back panel
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    1 x RJ-45 port
    Wireless Communication moduleIntel Wi-Fi 6E AX210 (PCB rev. 1.0)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    4 x SATA 6Gb/s connectors
    RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio1 x front panel audio header
    3 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x serial port header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

    Back Panel Connectors
    3 x USB 3.2 Gen 1 ports
    5 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (2T2R)
    1 x HDMI 2.0 port
    1 x DisplayPort
    1 x RJ-45 port
    3 x audio jacks
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Special FeaturesSupport for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled SoftwareNorton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty3 years
