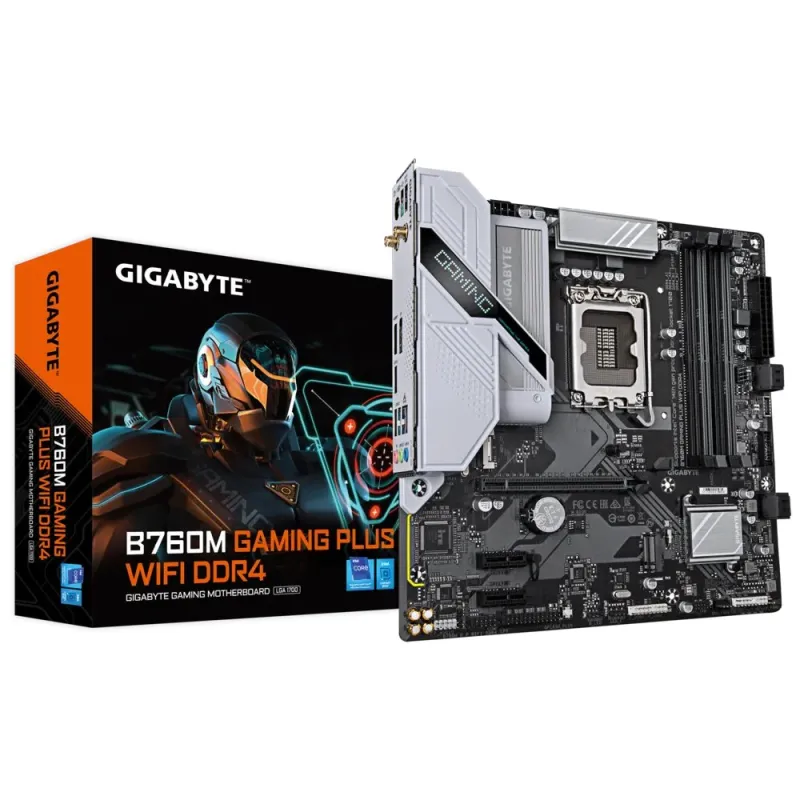

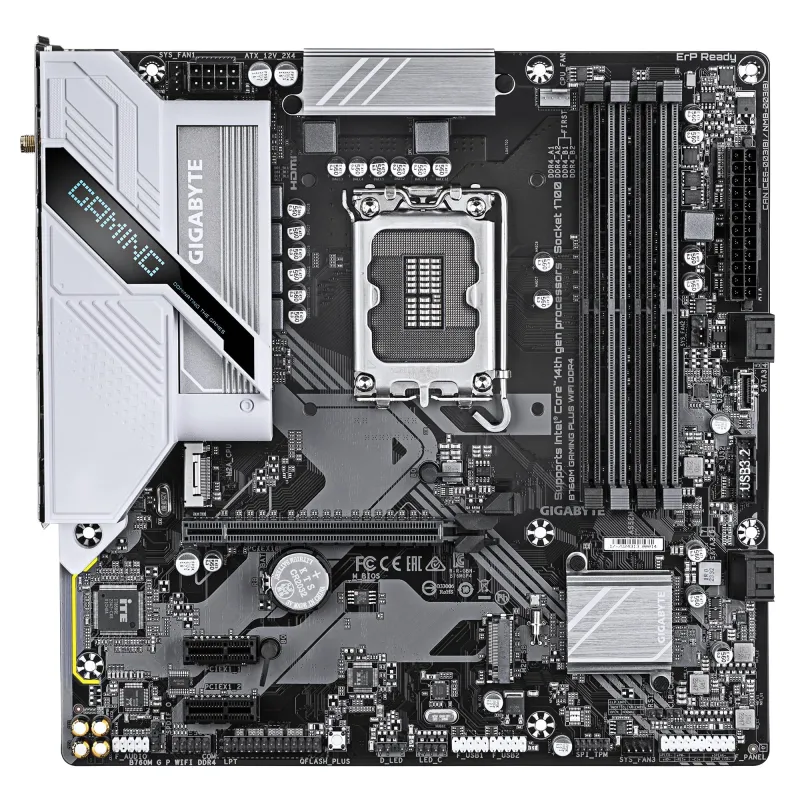

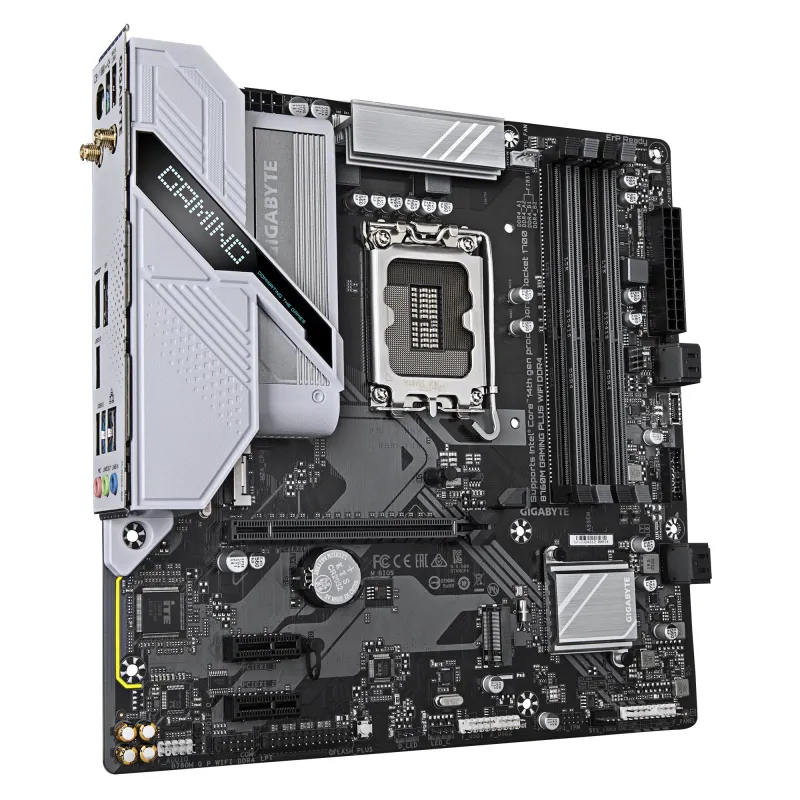

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
New
GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
0 reviews - Write a review
  • Price: 21,000৳
  • Regular Price: 23,100৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: B760M GAMING PLUS WIFI DDR4

    • Key Features

    • Model: B760M GAMING PLUS WIFI DDR4
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
    • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
    L3 cache varies with CPU
    Chipset Intel B760 Express Chipset
    BIOS 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    Memory
    Type DDR4
    Slots 4
    Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory Supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Graphics
    Graphics Onboard Graphics
    Integrated Graphics Processor-Intel HD Graphics support:
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.


    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    Connector & Ports
    HDMI 1 x HDMI port
    Display Port (s) 1 x DisplayPort
    USB (s) Chipset:
    - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
    - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    - 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
    LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Wireless Communication module Realtek Wi-Fi 6 RTL8851BE
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    Supported Storage CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio 3 x audio jacks
    Internal I/O Ports Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    1 x parallel port header
    1 x S/PDIF Out header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

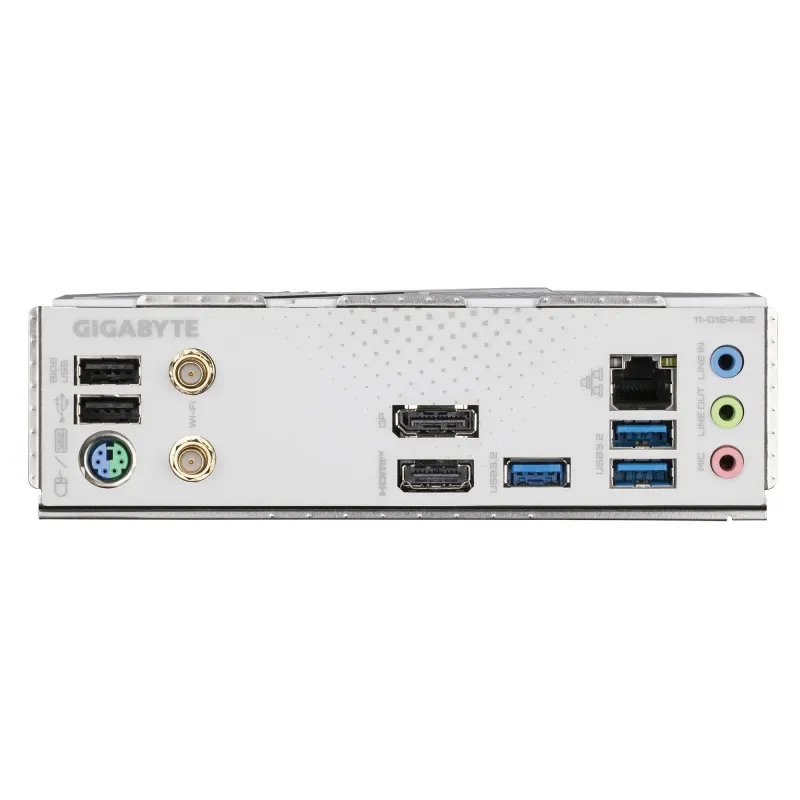

    Back Panel Connectors
    2 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort
    1 x HDMI port
    3 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    3 x audio jacks
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 years Warranty


    GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard

    The GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard is a high-performance motherboard, perfect for gaming enthusiasts and multitaskers. Designed to support the latest Intel Core 14th, 13th, and 12th generation processors, this motherboard integrates advanced power management and robust connectivity to deliver reliable and efficient performance. With its sleek, compact micro-ATX form factor, it fits well in various gaming and workstation builds without compromising on capabilities. Built with a Hybrid 4+1+1 Phases Digital VRM Solution, this motherboard ensures stable power delivery even during intense workloads and gaming sessions, providing consistency and efficiency. This digital VRM setup enhances performance and system stability, making it an ideal choice for anyone needing both reliability and power in demanding scenarios. The B760M GAMING PLUS WIFI DDR4 is designed for high-speed memory and rapid storage capabilities. With Dual Channel DDR4 support and 4 DIMM slots, users can easily upgrade to a larger memory capacity, especially with XMP support for enhanced performance. For storage, it includes two PCIe 4.0 x4 M.2 connectors, which deliver faster data access speeds, reducing loading times and creating a smooth gaming experience. This motherboard is equipped with Wi-Fi 6 (802.11ax) and Gigabit Ethernet LAN, providing both fast wireless and wired networking options. This ensures lower latency and consistent internet speeds, which is essential for smooth gaming and streaming. The motherboard also includes versatile connection options, such as a Front USB-C 5Gb/s for high-speed data transfers, as well as DisplayPort and HDMI for flexible display setups. The Smart Fan 6 technology embedded in this board ensures efficient cooling with multiple temperature sensors and hybrid fan headers that include FAN STOP functionality. This intelligent cooling system helps optimize airflow, reducing noise while keeping the system cool during prolonged use. The B760M GAMING PLUS WIFI also features Q-Flash Plus, allowing users to update the BIOS without needing to install the CPU, memory, or graphics card. This user-friendly option simplifies system maintenance, ensuring easy updates to keep your setup running smoothly. This motherboard’s combination of high-speed networking, ample memory capacity, advanced cooling, and easy-to-use BIOS updates makes it an outstanding choice for anyone building a powerful, future-ready gaming or workstation PC.
