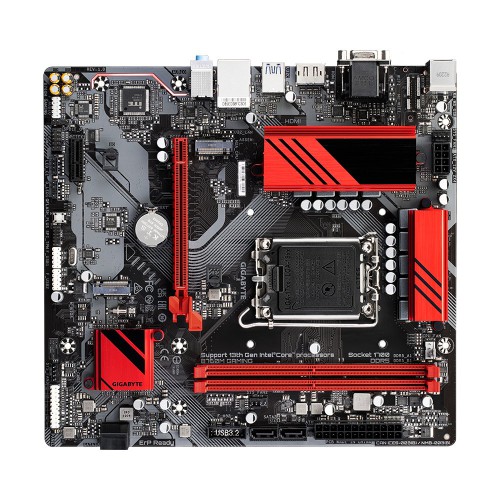

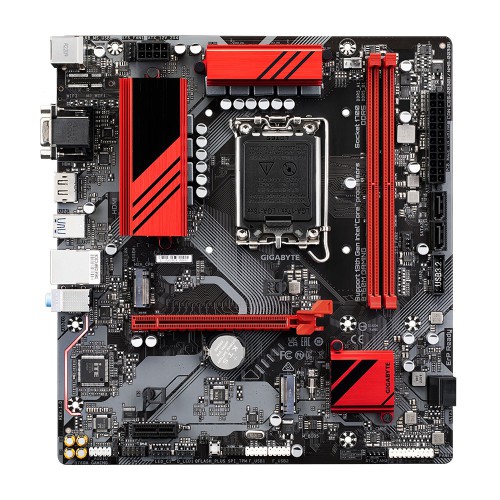

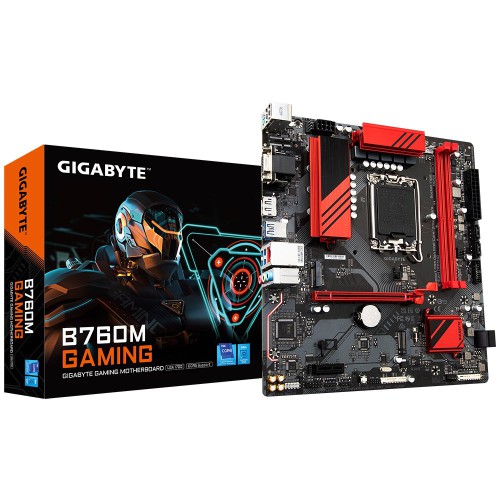

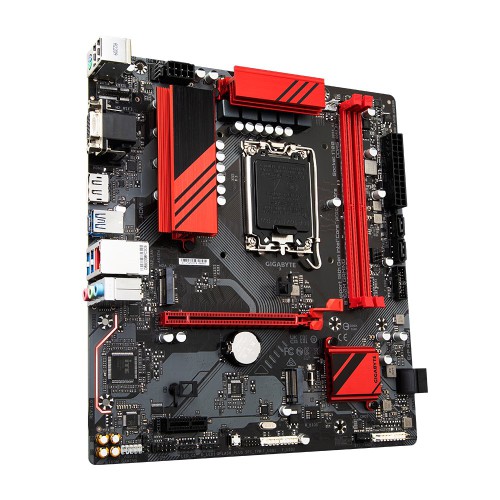

GIGABYTE B760M GAMING DDR5 Micro-ATX Motherboard

Name: GIGABYTE B760M GAMING DDR5 Micro-ATX Motherboard
Brand: Gigabyte
Price: 19600.00 BDT
Availability: InStock

Save: 3,280৳

GIGABYTE B760M GAMING DDR5 Micro-ATX Motherboard

0 reviews - Write a review

Price: 19,600৳

Regular Price: 22,880৳

Stock : In Stock

Brand: Gigabyte

Model: B760M GAMING

Key Features

Model: B760M GAMING
Supported CPU: 14th/ 13th /12th processors (LGA1700)
Supported RAM: 2x DDR5, Max 128GB 8000(O.C.)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip

19,600৳

Cash Discount Price

Online / Cash Payment

4,400৳/month

Regular Price: 22,880৳

EMI Starting from 4,400৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification	Details
Brand	GIGABYTE
Model	B760M GAMING
Form Factor	Micro ATX (24.4 cm x 22.5 cm)
CPU Socket	LGA1700
CPU Support	14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, Celeron® Processors
Chipset	Intel® B760 Express Chipset
Memory Support	DDR5 4800 - 8000 MT/s (O.C.)
Memory Slots	2 x DDR5 DIMM sockets, up to 128 GB (64 GB single DIMM)
Memory Architecture	Dual channel memory architecture
ECC Support	ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
Non-ECC Support	Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP Support	Yes
Integrated Graphics	Intel® HD Graphics
Graphics Ports	1 x D-Sub, 1 x HDMI (4K@60 Hz, HDMI 2.1), 1 x DisplayPort (4K@60 Hz)
Maximum Displays	Up to 3
Audio	Realtek® High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
LAN	Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
PCIe Slots	1 x PCIe x16 (PCIe 4.0), 1 x PCIe x1 (PCIe 3.0)
M.2 Slots	2 x M.2 Socket 3 (2280, PCIe 4.0 x4/x2 SSD support)
SATA Connectors	4 x SATA 6Gb/s
RAID Support	RAID 0, RAID 1, RAID 5, RAID 10
USB Ports	1 x USB Type-C® (USB 3.2 Gen 1), 5 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 (back panel), 4 x USB 2.0/1.1 (internal headers)
Connectors	1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 3 x system fan, 1 x addressable LED strip, 1 x RGB LED strip, 2 x M.2, 4 x SATA, 1 x front panel, 1 x front panel audio, 1 x S/PDIF Out, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x TPM, 1 x serial port, 1 x Q-Flash Plus, 1 x reset jumper, 1 x Clear CMOS jumper

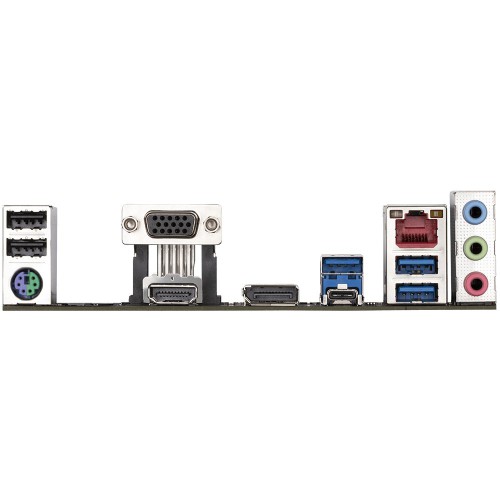

I/O Ports	1 x PS/2 port, 1 x D-Sub, 1 x HDMI, 1 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB Type-C®, 1 x RJ-45, 3 x audio jacks, 2 x USB 2.0/1.1
I/O Controller	iTE® I/O Controller Chip
BIOS	128 Mbit flash, AMI UEFI BIOS
Software Support	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Norton® Internet Security (OEM)
Operating System Support	Windows 11 64-bit, Windows 10 64-bit
Warranty	3 years

Features

High-Performance LGA1700 Socket: Supports Intel® Core™ 12th, 13th, and 14th Gen processors for top-tier computing.
Intel® B760 Express Chipset: Delivers robust performance and connectivity options for modern applications.
Ultra-Fast DDR5 Memory Support: Compatible with DDR5 memory speeds up to 8000 MT/s (overclocked).
Dual Channel Memory Architecture: Enhances system performance with two DDR5 DIMM slots, supporting up to 128 GB.
Integrated Intel® HD Graphics: Provides versatile display options with support for up to three simultaneous displays.
4K Resolution Support: HDMI and DisplayPort inputs support resolutions up to 4096x2304 @ 60 Hz.
Realtek® 2.5GbE LAN: Offers high-speed network connectivity with 2.5 Gbps, 1 Gbps, and 100 Mbps options.
PCIe 4.0 Slot: One PCIe x16 slot for high-performance graphics cards or NVMe SSDs.
PCIe 3.0 Slot: Additional PCIe x1 slot for expanding your system with other PCIe devices.
Dual M.2 Slots: Two M.2 connectors (2280) for PCIe 4.0 x4/x2 SSDs, ensuring rapid storage performance.
Four SATA 6Gb/s Connectors: Supports a range of SATA storage devices with RAID 0, RAID 1, RAID 5, and RAID 10 capabilities.
USB Type-C® Port: Back panel USB Type-C® port with USB 3.2 Gen 1 support for fast data transfer and peripheral connectivity.
Multiple USB Ports: Includes 5 x USB 3.2 Gen 1 and 6 x USB 2.0/1.1 ports for extensive connectivity options.
Advanced Audio Features: Realtek® High Definition Audio with 2/4/5.1/7.1-channel support and S/PDIF Out.
Comprehensive Cooling Solutions: Multiple fan headers and support for water cooling flow rate detection and fan speed control.
LED Strip Headers: Includes addressable and RGB LED strip headers for customizable lighting effects.
Q-Flash Plus Support: Allows BIOS updates without installing a CPU, memory, or graphics card.
Robust Power Connectors: 24-pin ATX and 8-pin ATX 12V connectors ensure stable power delivery for high-performance components.
Multi-Display Support: Connect up to three monitors with D-Sub, HDMI, and DisplayPort outputs.
Versatile Expansion Headers: Includes headers for additional USB, audio, and TPM modules.
Windows 10 & 11 Compatibility: Fully supports Windows 10 and 11 64-bit operating systems for a seamless user experience.

GIGABYTE B760M GAMING DDR5 Micro-ATX Motherboard

The GIGABYTE B760M GAMING motherboard is a powerhouse designed for high-performance computing enthusiasts. Featuring an LGA1700 socket, it supports the latest 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, ensuring you can harness cutting-edge processing power for both gaming and professional applications. Equipped with the Intel® B760 Express Chipset, this motherboard offers reliable and efficient performance across various tasks.

Experience unparalleled memory speed with support for DDR5 memory up to 8000 MT/s (overclocked), backed by dual channel architecture and a capacity of up to 128 GB. The Integrated Intel® HD Graphics provide versatile display options, supporting up to three simultaneous displays through D-Sub, HDMI (4K @ 60 Hz), and DisplayPort (4K @ 60 Hz) connections.

Connectivity is a highlight with the Realtek® 2.5GbE LAN, offering high-speed network capabilities of 2.5 Gbps, 1 Gbps, and 100 Mbps. The motherboard also features a PCIe 4.0 x16 slot for high-performance graphics cards or NVMe SSDs, and two M.2 slots (PCIe 4.0 x4/x2) for rapid storage solutions. With four SATA 6Gb/s connectors, it supports various RAID configurations (RAID 0, 1, 5, 10), providing flexibility for your storage needs.

The USB connectivity includes a USB Type-C® port with USB 3.2 Gen 1 support, five USB 3.2 Gen 1 ports, and six USB 2.0/1.1 ports, ensuring you have ample options for peripherals. Advanced features like Q-Flash Plus allow for easy BIOS updates, while RGB LED strip headers and comprehensive cooling options enhance both aesthetics and performance.

Compatible with Windows 10 and 11 64-bit, the GIGABYTE B760M GAMING motherboard is the ideal choice for gamers and power users seeking a robust and future-proof system.
