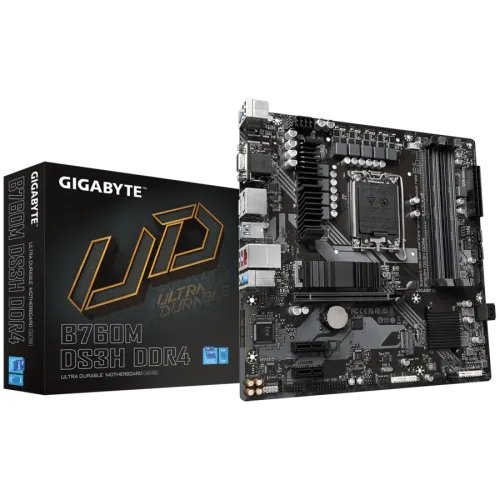

Gigabyte B760M DS3H DDR4 13th Gen Micro Atx Motherboard

Gigabyte B760M DS3H DDR4 13th Gen Micro Atx Motherboard

Supported CPU	LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors L3 Cache Varies With CPU
Chipset	Intel B760 Express Chipset
Memory	Support For DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules (Please Refer "Memory Support List" For More Information.)
Graphics	Integrated Graphics Processor-Intel® HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version.
Slots	CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 Chipset: 2 X PCI Express X1 Slots, Supporting PCIe 3.0 And Running At X1
Supported Storage	Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280 PCIe 3.0 X4/X2 SSD Support) 4 X SATA 6Gb/S Connectors
LAN	Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel
USB Port	Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2 Support 5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+2 USB 2.0 Hubs: 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers
Internal I/O Ports	1x 24-Pin ATX Main Power Connector 1x 8-Pin ATX 12V Power Connector 1x CPU Fan Header 2x System Fan Headers 1x Addressable LED Strip Header 1x RGB LED Strip Header 2x M.2 Socket 3 Connectors 4x SATA 6Gb/S Connectors 1x Front Panel Header 1x Front Panel Audio Header 1x S/PDIF Out Header 1x USB 3.2 Gen 1 Header 3x USB 2.0/1.1 Headers 1x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1x Serial Port Header 1x Q-Flash Plus Button 1x Reset Button 1x Reset Jumper 1x Clear CMOS Jumper

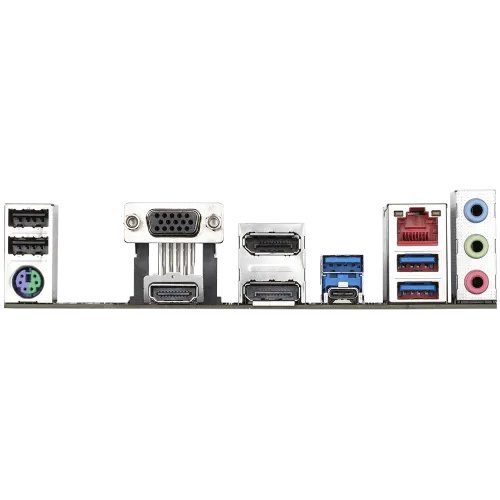

External I/O Ports	1x PS/2 Keyboard/Mouse Port 1x D-Sub Port 1x HDMI Port 4x USB 3.2 Gen 1 Ports 2x USB 2.0/1.1 Ports 1x RJ-45 Port 3x Audio Jacks
Form Factor	Micro ATX Form Factor; 24.4cm X 24.4cm
BIOS	1 X 128 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	03 Years

GIGABYTE B760M DS3H DDR4 MOTHERBOARD

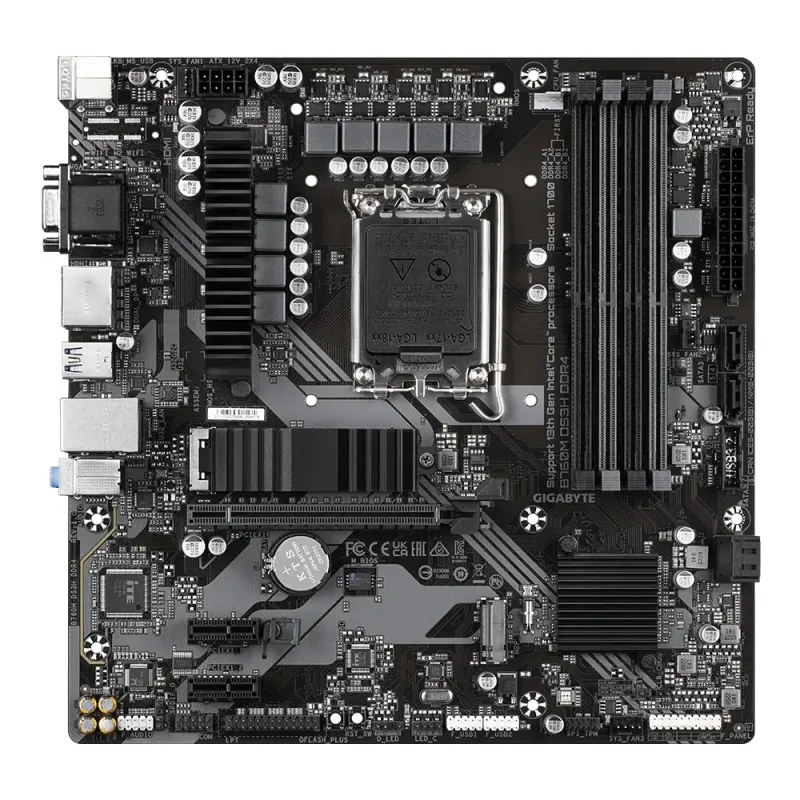

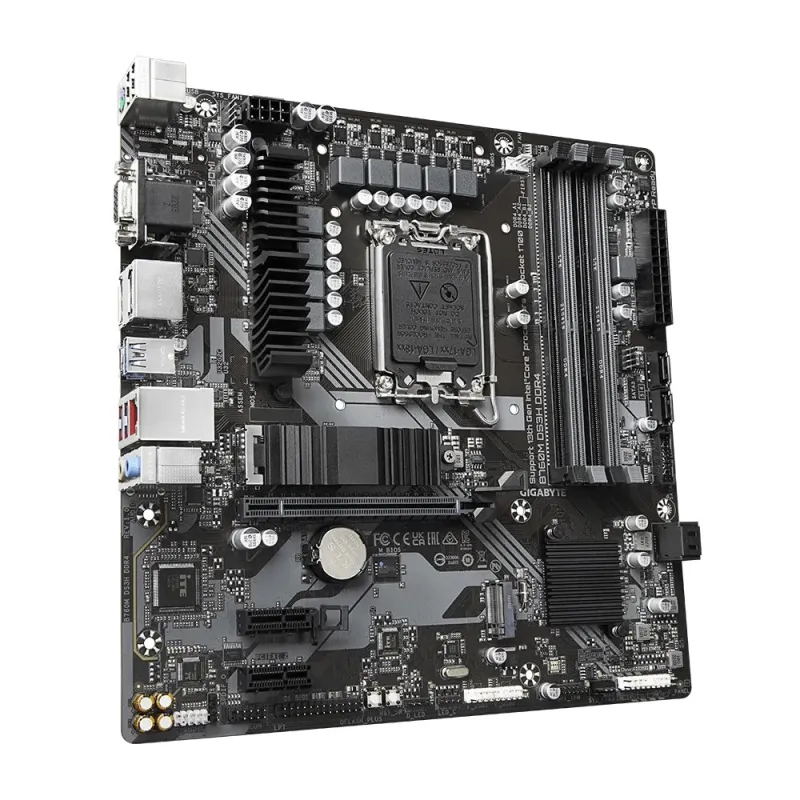

GIGABYTE B760M DS3H is a Micro-ATX motherboard that supports 13th and 12th Generation Intel Core processors and LGA 1700 socket. It offers unparalleled performance with a hybrid 6+2+1 phases digital VRM solution that provides stable power delivery to the CPU. The motherboard supports dual channel DDR4 memory with 4 DIMMs and XMP memory module support for faster speeds and higher data bandwidth. The B760M DS3H features next generation storage options with 2 PCI Express 4.0 x4 M.2 connectors, and it also has a M.2 Thermal Guard to ensure M.2 SSD performance. The motherboard also has an EZ-Latch design for the PCI Express 4.0 x16 slot for quick release and easy installation. In terms of connectivity, the B760M DS3H offers fast networks with 2.5GbE LAN, and extended connectivity options including a rear USB-C 10Gb/s port, DisplayPort, and HDMI. The Smart Fan 6 feature includes multiple temperature sensors and hybrid fan headers with fan stop, providing optimal cooling performance. Finally, the B760M DS3H has a Q-Flash Plus function that allows users to update the BIOS without installing the CPU, memory, and graphics card. Overall, the GIGABYTE B760M DS3H is a powerful and versatile motherboard that provides users with the latest technology and advanced features for building a high-performance gaming or workstation PC.
