GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard

GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
Save: 1,500৳
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard
0 reviews - Write a review
  • Price: 18,500৳
  • Regular Price: 20,000৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: B760M DS3H AX
    • Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Description

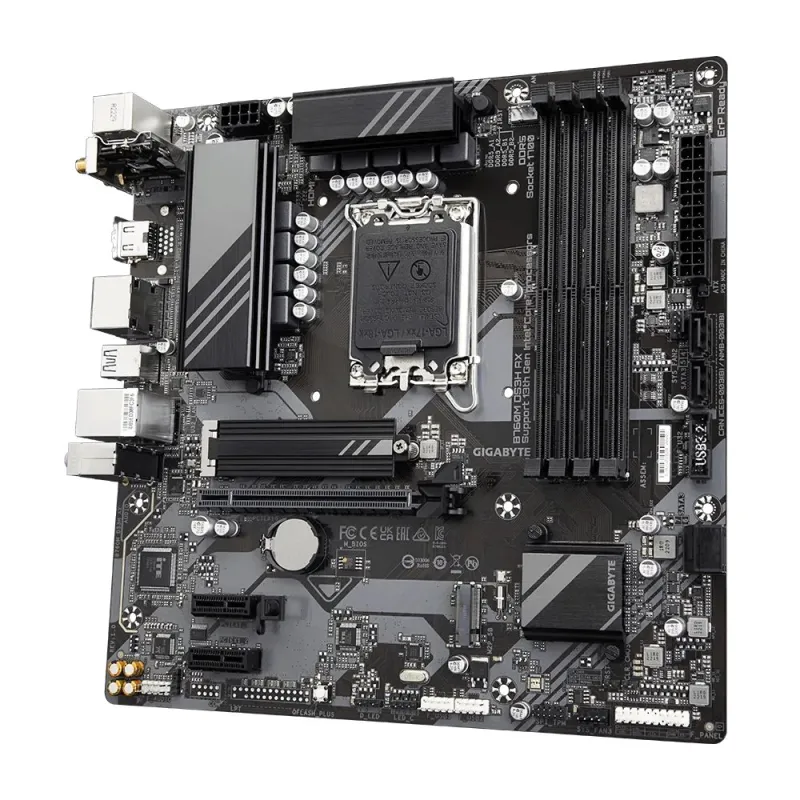

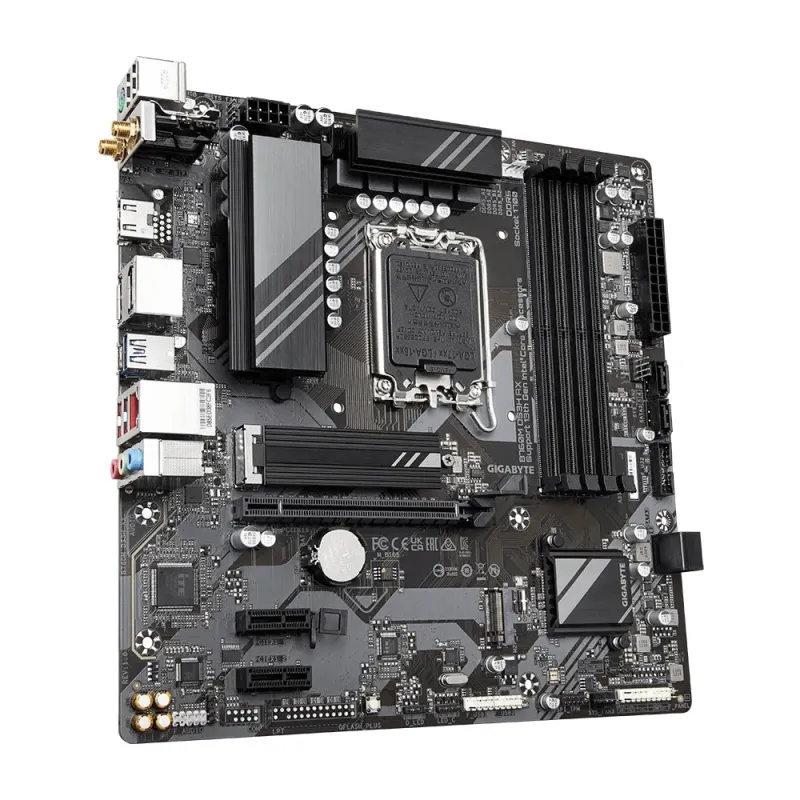

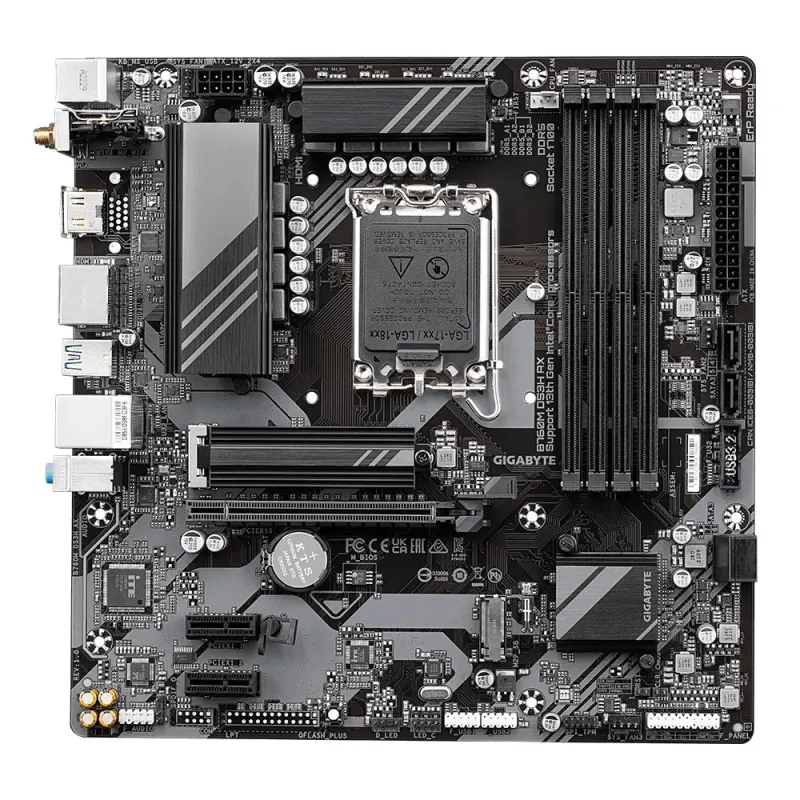

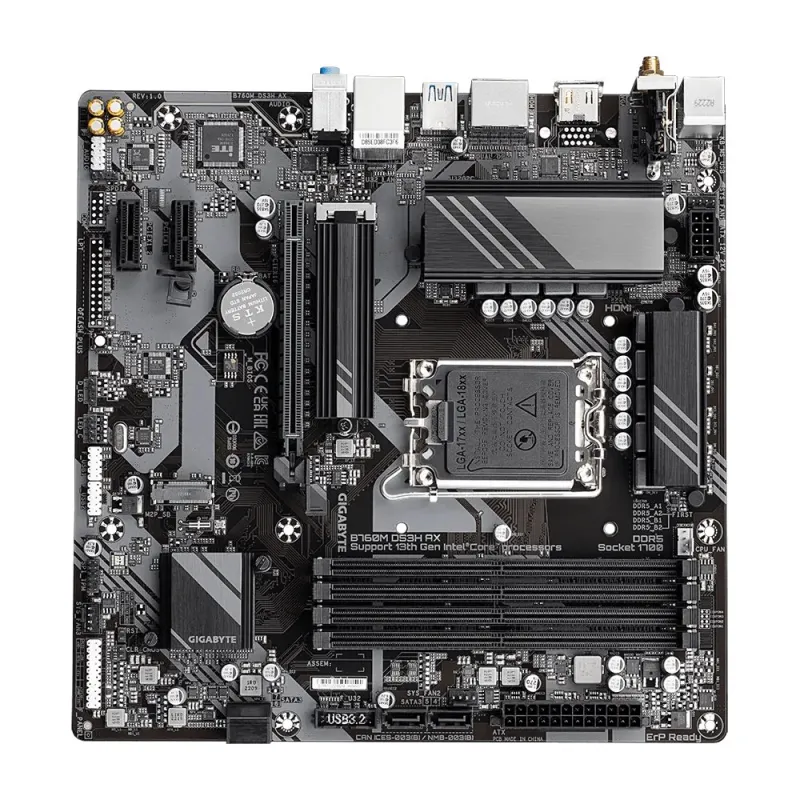

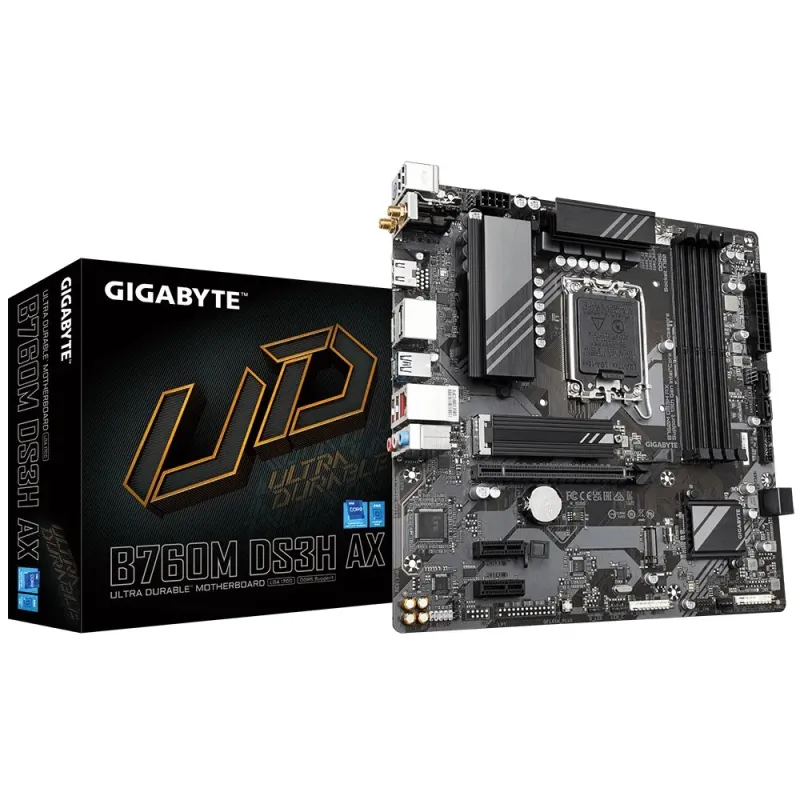

    GIGABYTE B760M DS3H AX 13th and 12th Gen mATX Motherboard

    The GIGABYTE B760M DS3H AX is a mATX motherboard that supports Intel Socket LGA 1700 and 13th and 12th Gen Intel Series Processors. This motherboard has an unrivaled Hybrid 6+2+1 Phases Digital VRM Solution. It also includes dual-channel DDR5 memory with four DIMM slots that support XMP memory modules. GIGABYTE B760M DS3H AX Motherboard provides next-generation storage solutions with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard is provided to guarantee that M.2 SSD performance is optimal. In addition, the motherboard has an EZ-Latch PCIe 4.0x16 slot with a rapid-release design. It includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networks. The GIGABYTE B760M DS3H AX Motherboard's rear panel provides additional connectivity options, including USB-C 10Gb/s, DP, and HDMI. Smart Fan 6 has many temperature sensors as well as hybrid fan headers with FAN STOP. Finally, the Q-Flash Plus functionality enables BIOS upgrades without the need for the CPU, RAM, or graphics card to be installed.

    Specification

    Basic Information
    Supported CPULGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    L3 cache varies with the CPU
    ChipsetIntel B760 Express Chipset
    BIOS1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Expansion Slots
    PCICPU:
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    Memory
    TypeDDR5
    Slots4
    Supported MemorySupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memoryup to 192 GB (48 GB single DIMM capacity) of system memory
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
    Support for up to triple-display at the same time

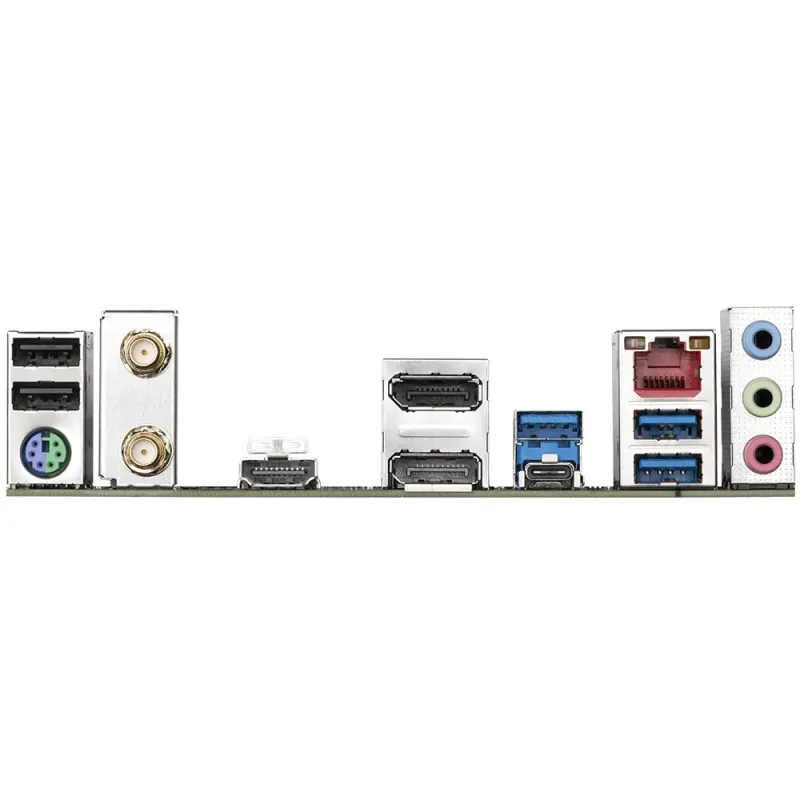

    Connector & Ports
    HDMI1x HDMI
    Display Port (s)2x DisplayPort
    USB (s)Chipset:
    1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    2 x USB 2.0/1.1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    4 x USB 2.0/1.1 ports available through the internal USB headers
    LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication moduleAMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.2
    Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
    Intel Wi-Fi 6E AX210 (For PCB rev. 1.1)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Intel Wi-Fi 6E AX211 (For PCB rev. 1.2)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
    Supported StorageCPU:
    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    4 x SATA 6Gb/s connectors
    RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio3 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x S/PDIF Out header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled SoftwareNorton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty3 years
