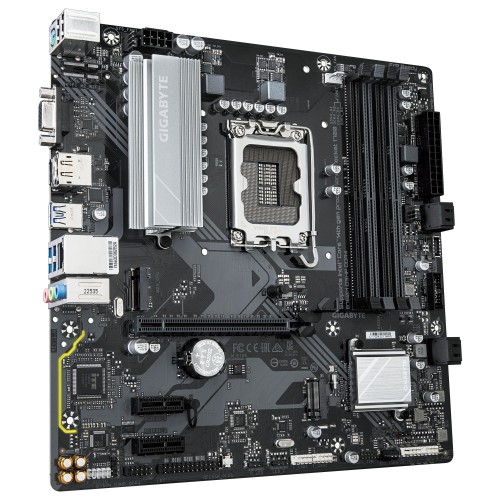

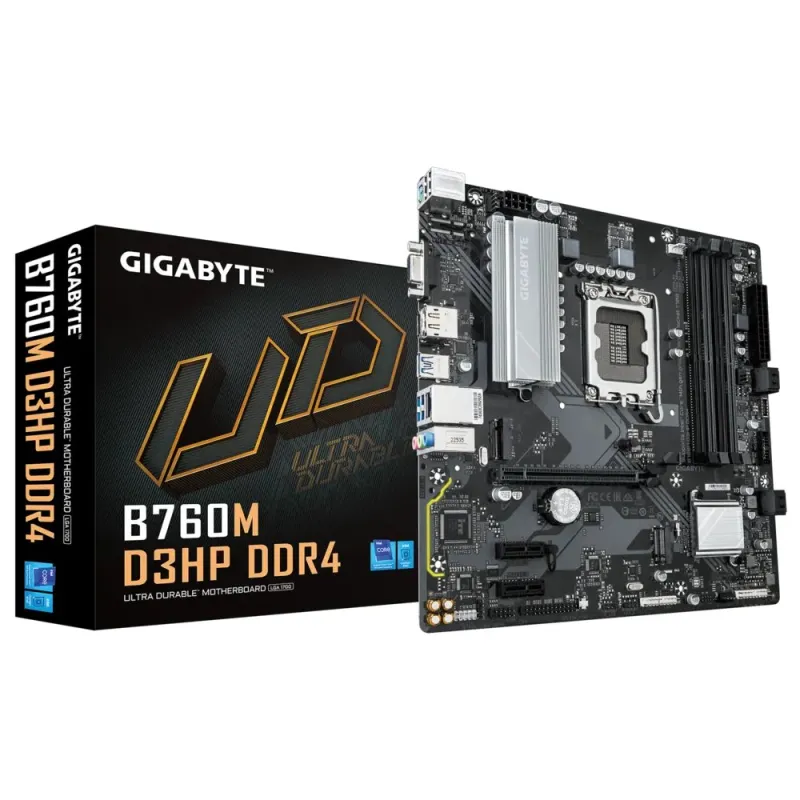

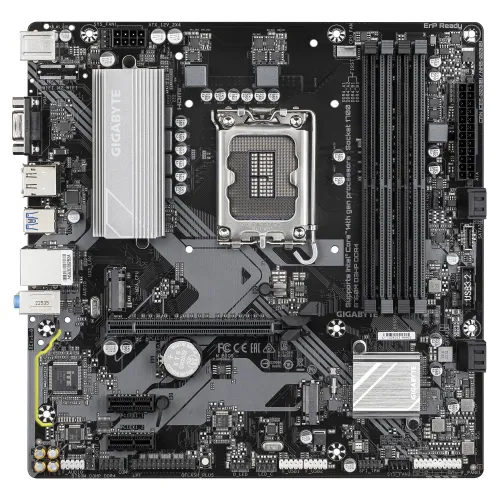

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

Name: GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
Brand: Gigabyte
Price: 16100.00 BDT
Availability: InStock

Save: 2,600৳

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

0 reviews - Write a review

Price: 16,100৳

Regular Price: 18,700৳

Stock : In Stock

Brand: Gigabyte

Model: B760M D3HP DDR4

Key Features

Model: B760M D3HP DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

16,100৳

Cash Discount Price

Online / Cash Payment

3,596৳/month

Regular Price: 18,700৳

EMI Starting from 3,596৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory
Type	DDR4
Slots	4
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics	Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
D-Sub (s)	1 x D-Sub port
USB (s)	Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks

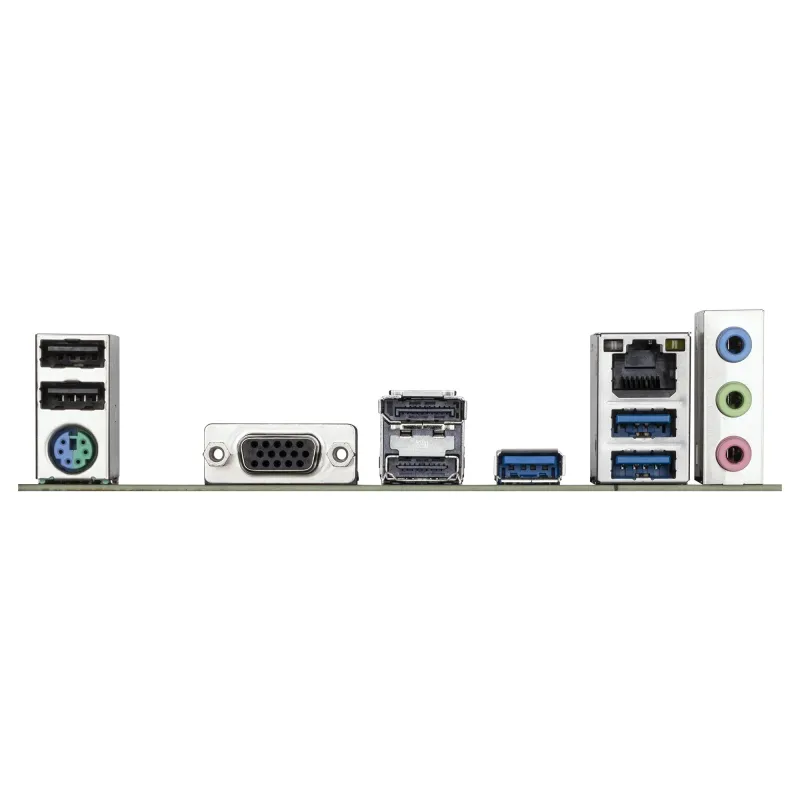

Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years Warranty

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard is a feature-packed motherboard designed to support Intel’s 12th, 13th, and 14th Generation Core processors, making it an ideal choice for users who want both versatility and performance. This motherboard is built to handle demanding applications, offering a Hybrid 4+1+1 Phases Digital VRM Solution for stable power delivery, enabling smooth multitasking and excellent performance in gaming, content creation, or other heavy workloads. With Dual Channel DDR4 support, the GIGABYTE B760M D3HP provides four DIMM slots compatible with XMP memory modules, allowing for flexible memory configurations and enhanced system responsiveness. Storage performance is optimized through two PCIe 4.0 x4 M.2 connectors, providing ultra-fast data transfer rates ideal for users who rely on NVMe SSDs for quick file access and fast system boot times. On the networking side, including Gigabit Ethernet (GbE LAN) ensures a stable and high-speed internet connection, catering to both online gaming and streaming. Connectivity options on this motherboard are extensive. It includes front-panel USB-C support with 5Gb/s speed, along with HDMI, DisplayPort, and D-Sub video outputs to accommodate various monitors and peripherals. The Smart Fan 6 technology integrated into the motherboard provides advanced cooling options, with multiple temperature sensors and hybrid fan headers featuring FAN STOP, ensuring your system remains cool and quiet during intense tasks. Updating the BIOS is also made simple with the Q-Flash Plus feature, which allows users to perform BIOS updates without needing to install the CPU, memory, or graphics card. This functionality makes it especially convenient for builders who want to ensure compatibility with the latest processors from Intel. The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard combines high-speed storage, reliable power delivery, extensive connectivity, and easy BIOS management, providing an exceptional foundation for modern PC builds. Whether you’re building a high-performance workstation or a gaming rig, this motherboard offers the flexibility and support you need for a future-proof setup.

Reviews

What is the price of GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard in Bangladesh is 16,100৳ You can buy the GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
