GIGABYTE B650M H AM5 Micro-ATX Motherboard

GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
GIGABYTE B650M H AM5 Micro-ATX Motherboard
0 reviews - Write a review
  • Price: 13,700৳
  • Regular Price: 14,850৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: B650M H

    • Key Features

    • Model: B650M H
    • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
    • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
    • Graphics Output: 2 x DisplayPort, 1 x HDMI port
    • Features: 1 x DisplayPort, 1 x HDMI
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    Chipset AMD B650
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
    Memory
    Type DDR5
    Slots 2 x DIMM
    Supported Memory 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    Maximum Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    Graphics
    Graphics supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.
    supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    Connector & Ports
    HDMI 1 x HDMI
    Display Port (s) 1 x DisplayPort
    USB (s) CPU:
    - 2 x USB 3.2 Gen 1 ports on the back panel
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    - 2 x USB 3.2 Gen 1 ports available through the internal USB header
    - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    Audio 3 x audio jacks
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Clear CMOS jumper

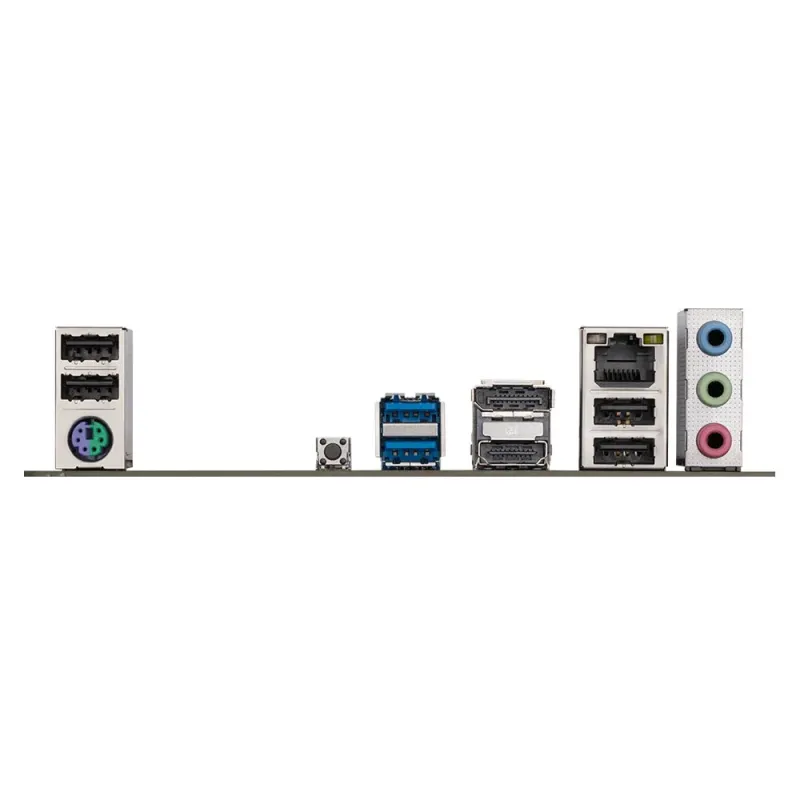

    Back Panel Connectors
    4 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 1 ports
    1 x DisplayPort
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 Years


    GIGABYTE B650M H AM5 Micro-ATX Motherboard

    The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a compact and feature-rich platform designed to support AMD's latest Ryzen 7000, 8000, and 9000 series processors, utilizing the AM5 socket. This motherboard offers a robust power delivery system with a 5+2+2 phases digital VRM solution, ensuring stable and efficient performance, especially under demanding conditions. It supports Dual Channel DDR5 memory through 2 SMD DIMMs, compatible with both AMD EXPO and Intel XMP memory modules, allowing users to easily overclock and optimize their system's memory performance. The B650M H provides a PCIe 4.0 x4 M.2 connector, offering high-speed storage capabilities that significantly enhance system responsiveness. The EZ-Latch feature on the PCIe x16 slot simplifies the installation and removal of graphics cards with a quick-release design, making hardware upgrades and maintenance straightforward. Equipped with Gigabit Ethernet LAN, the motherboard ensures reliable and fast network connectivity, ideal for gaming and data-intensive tasks. The motherboard also includes versatile connectivity options with DisplayPort and HDMI outputs, supporting various display setups and multi-monitor configurations. Its Smart Fan 6 technology provides multiple temperature sensors and hybrid fan headers, including the capability to stop fans completely when not needed, ensuring optimal cooling and minimal noise. Additionally, the Q-Flash Plus feature allows for easy BIOS updates without the need to install a CPU, memory, or graphics card, simplifying system maintenance and upgrades. The GIGABYTE B650M H AM5 Micro-ATX motherboard offers a well-rounded package for users seeking a reliable and efficient system build, whether for gaming or professional use.

    Write a review

    Please login or register to review

    What is the price of GIGABYTE B650M H AM5 Micro-ATX Motherboard in Bangladesh?

    The latest price of GIGABYTE B650M H AM5 Micro-ATX Motherboard in Bangladesh is 13,700৳ You can buy the GIGABYTE B650M H AM5 Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
