GIGABYTE B650 UD AC AM5 ATX Motherboard

GIGABYTE B650 UD AC AM5 ATX Motherboard
GIGABYTE B650 UD AC AM5 ATX Motherboard
GIGABYTE B650 UD AC AM5 ATX Motherboard
New
GIGABYTE B650 UD AC AM5 ATX Motherboard
GIGABYTE B650 UD AC AM5 ATX Motherboard
GIGABYTE B650 UD AC AM5 ATX Motherboard
GIGABYTE B650 UD AC AM5 ATX Motherboard
0 reviews - Write a review
  • Price: 25,500৳
  • Regular Price: 28,050৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: B650 UD AC

    • Key Features

    • Model: B650 UD AC
    • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
    • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
    • Graphics Output: 2 x DisplayPort, 1 x HDMI port
    • Features: 1 x DisplayPort, 1 x HDMI
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    Chipset AMD B650
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    Audio Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
    * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
    1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
    Memory
    Type DDR5
    Slots 4 x DIMM
    Supported Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    Maximum Memory supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    Graphics
    Graphics supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.
    supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    Connector & Ports
    HDMI 1 x HDMI
    Display Port (s) 1 x DisplayPort
    USB (s) CPU:
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
    CPU+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    - 2 x USB 3.2 Gen 1 ports available through the internal USB header
    - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
    - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
    LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Wireless Communication module AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE)
    - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    - BLUETOOTH 5.0
    - Support for 11ac wireless standard
    (Actual data rate may vary depending on environment and equipment.)
    Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs
    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    Audio 3 x audio jacks
    Internal I/O Ports Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    2 x system fan headers
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    3 x USB 2.0/1.1 headers
    1 x Q-Flash Plus button
    1 x serial port header j
    1 x Clear CMOS jumper

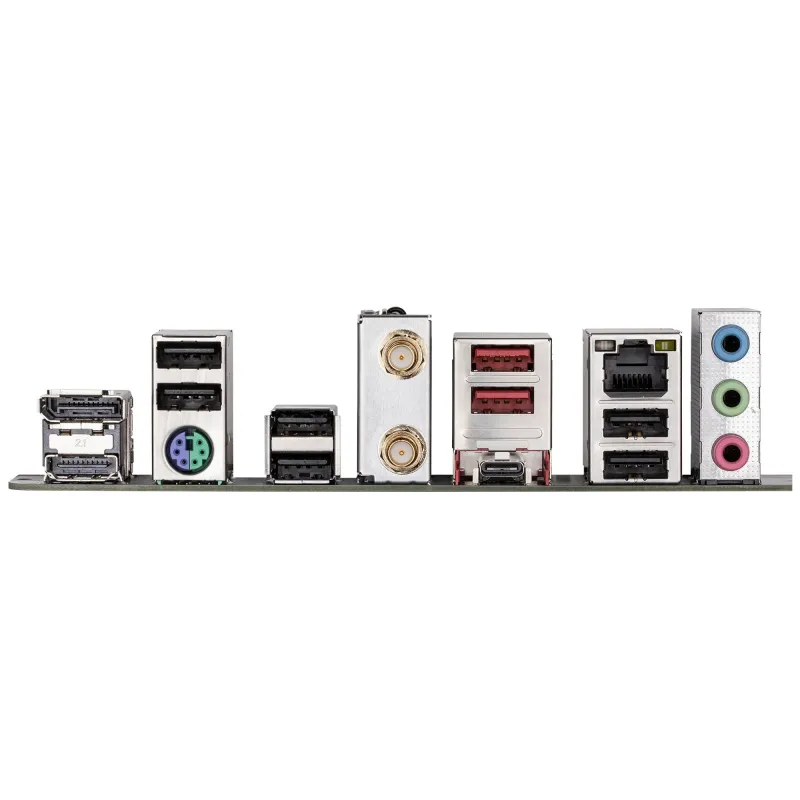

    Back Panel Connectors
    1 x DisplayPort
    1 x HDMI port
    1 x PS/2 keyboard/mouse port
    2 x SMA antenna connectors (2T2R)
    1 x USB Type-C port, with USB 3.2 Gen 1 support
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 Years


    GIGABYTE B650 UD AC AM5 ATX Motherboard

    The GIGABYTE B650 UD AC is a high-performance ATX motherboard designed for AMD's latest processors, utilizing the AM5 socket to support AMD Ryzen 7000, 8000, and 9000 series processors. It offers robust performance and advanced features suitable for gaming and professional applications. The motherboard features a 6+2+2 phases digital VRM solution, ensuring stable and efficient power delivery, even under heavy loads, which supports overclocking and maintains system stability. It supports dual-channel DDR5 memory with four SMD DIMM slots, accommodating high-speed RAM modules and offering AMD EXPO and Intel XMP profiles for easy overclocking. The B650 UD AC includes one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, providing ultra-fast data transfer rates and improved system responsiveness. The EZ-Latch PCIe x16 slot simplifies the installation and removal of graphics cards with a quick-release design. Network connectivity is ensured through built-in Wi-Fi 802.11ac and a Gigabit Ethernet LAN port, offering fast and reliable options for online gaming and streaming. The motherboard also includes DisplayPort and HDMI outputs, supporting high-resolution displays and multiple monitor setups. The rear I/O features high-speed USB 10Gb/s ports for quick data transfers and peripheral connectivity. The Smart Fan 6 technology provides comprehensive cooling management with multiple temperature sensors and hybrid fan headers, including a FAN STOP function for quieter operation. The Q-Flash Plus feature allows users to update the BIOS without needing to install a CPU, memory, or graphics card, simplifying firmware updates. Overall, the GIGABYTE B650 UD AC is a well-rounded motherboard offering high-end features and connectivity for building a powerful and future-proof PC, making it an excellent choice for gamers, content creators, and enthusiasts alike.
