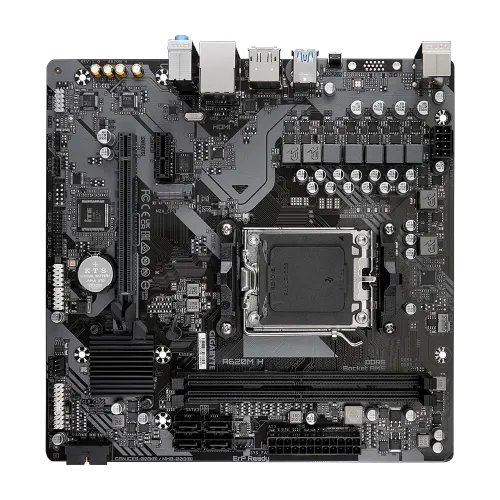

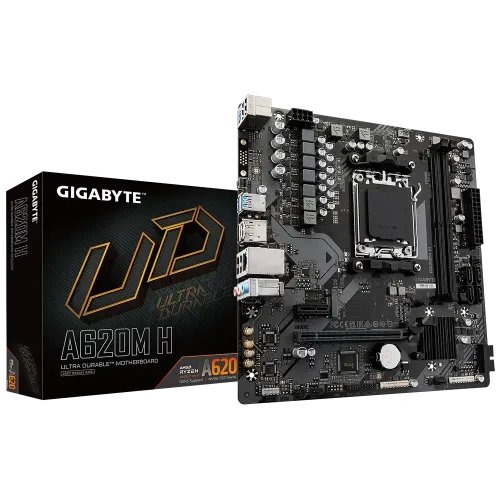

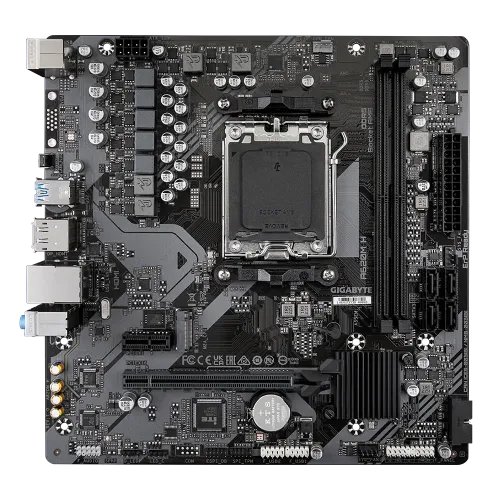

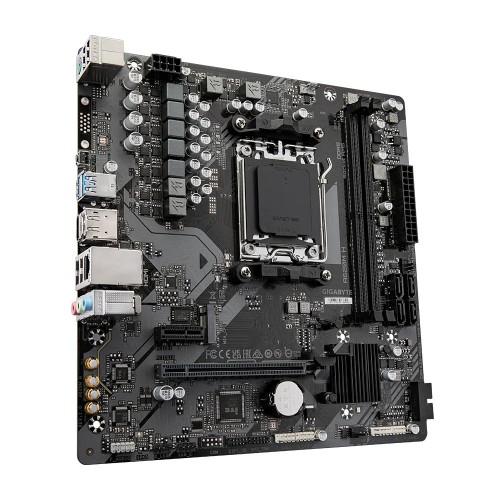

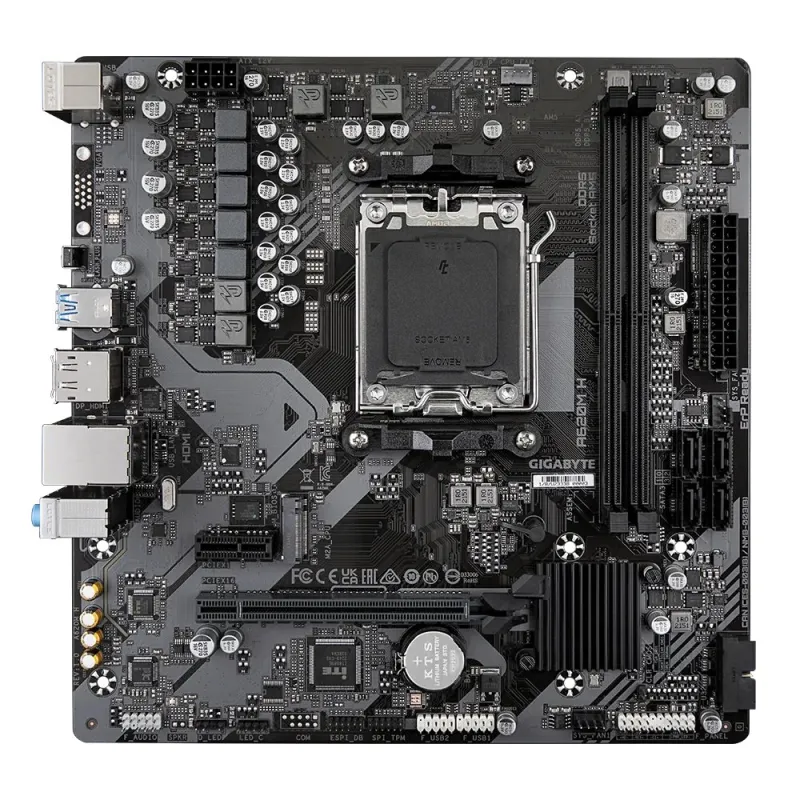

GIGABYTE A620M H AM5 Micro-ATX Motherboard

GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
Save: 1,430৳
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard
0 reviews - Write a review
  • Price: 11,000৳
  • Regular Price: 12,430৳
  • Stock : In Stock
  • Brand: Gigabyte
  • Model: A620M H

    • Key Features

    • Model: A620M H
    • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
    • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
    • Graphics Output: 2 x DisplayPort, 1 x HDMI port
    • Features: 1 x DisplayPort, 1 x HDMI
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    Chipset AMD A620
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
    Audio Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI 1 x PCI Express x16 slot, integrated in the CPU:
    AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
    Chipset:
    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Memory
    Type DDR5
    Slots 2 x DIMM
    Supported Memory 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    Maximum Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    Graphics
    Graphics supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.
    supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    Connector & Ports
    HDMI 1 x HDMI
    Display Port (s) 1 x DisplayPort
    USB (s) CPU:
    2 x USB 3.2 Gen 1 ports on the back panel
    1 x USB 2.0/1.1 port on the back panel
    Chipset:
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
    AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    Audio 3 x audio jacks
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Clear CMOS jumper

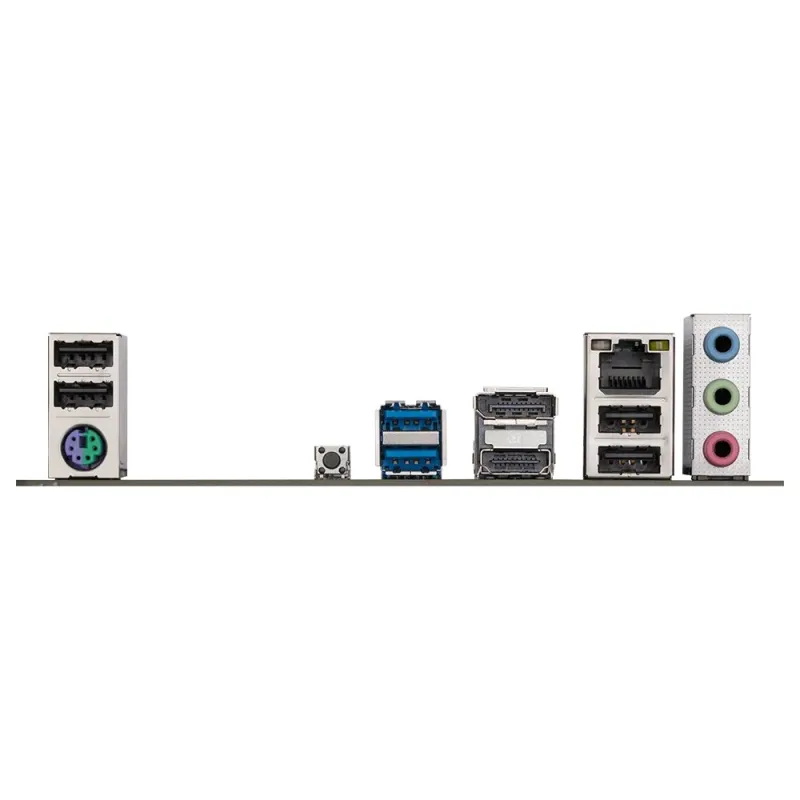

    Back Panel Connectors
    4 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 1 ports
    1 x DisplayPort
    1 x HDMI port
    1 x RJ-45 port
    3 x audio jacks
    TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    Others
    Special Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled Software Norton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty 3 Years


    GIGABYTE A620M H AM5 Micro-ATX Motherboard

    The GIGABYTE A620M H is a versatile Micro-ATX motherboard designed for AMD Socket AM5, making it compatible with the latest AMD Ryzen 7000, 8000, and 9000 series processors. It offers unparalleled performance with a 5+2+2 phase digital VRM solution, ensuring stable power delivery and enhanced overclocking capabilities. The motherboard supports dual-channel DDR5 memory, accommodating up to two SMD DIMMs and providing support for AMD EXPO and Intel XMP memory modules for optimized performance. For storage, it includes a PCIe 4.0 x4 M.2 connector, enabling rapid data access and quick boot times with the latest NVMe SSDs. The GIGABYTE A620M H also features an EZ-Latch PCIe x16 slot, making it easy to install and remove graphics cards without tools. It offers reliable network connectivity through a Gigabit Ethernet (GbE) LAN port and extended display options with both DisplayPort and HDMI outputs, supporting multiple monitor setups. The Smart Fan 6 technology includes advanced fan controls with multiple temperature sensors and hybrid fan headers, supporting both PWM and DC fans. The FAN STOP feature further enhances energy efficiency and reduces noise by stopping the fans when the system is cool enough. The Q-Flash Plus feature allows for BIOS updates without the need for a CPU, memory, or graphics card, simplifying maintenance and upgrades. Overall, this motherboard provides a robust platform for building a modern PC, offering a blend of advanced features and future-proofing capabilities.

    Write a review

    Please login or register to review

    What is the price of GIGABYTE A620M H AM5 Micro-ATX Motherboard in Bangladesh?

    The latest price of GIGABYTE A620M H AM5 Micro-ATX Motherboard in Bangladesh is 11,000৳ You can buy the GIGABYTE A620M H AM5 Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
