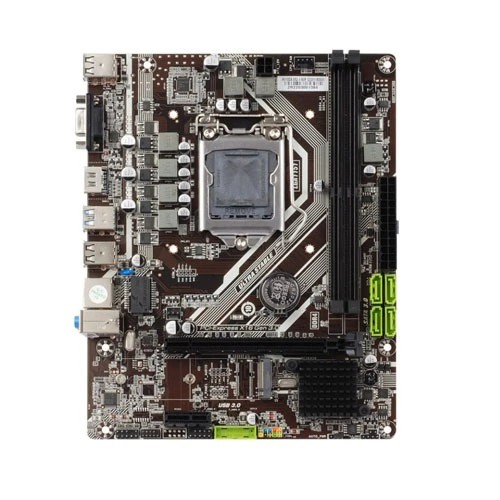

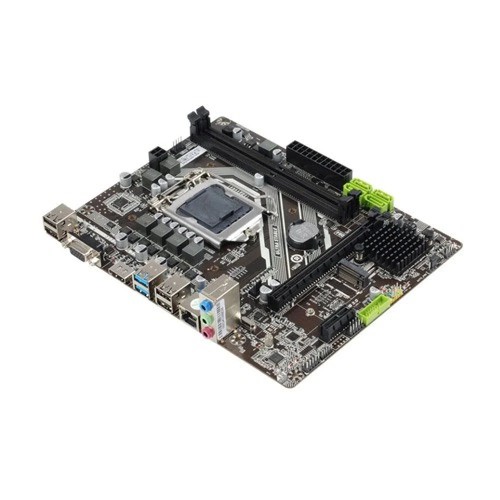

Esonic Intel H110DA1 DDR4 Motherboard

Esonic Intel H110DA1 DDR4 Motherboard

Esonic Intel H110DA1 DDR4 Motherboard is a versatile and reliable motherboard designed to support a wide range of Intel processors, making it an excellent choice for building or upgrading your desktop PC. With its feature-rich specifications and high-quality components, this motherboard offers a solid foundation for various computing needs. One of the standout features of this motherboard is its processor support. It is compatible with Intel Socket 1151 CPUs, spanning the 6th, 7th, 8th, and 9th Generation Core series, including Core i7, Core i5, Core i3, Pentium, and Celeron processors. This flexibility ensures that you can choose the CPU that best suits your performance requirements and budget. It also supports Intel's 14nm CPUs and Intel Turbo Boost Technology 2.0, enhancing overall system performance. Memory is a crucial aspect of any motherboard, and the Esonic H110DA1 doesn't disappoint. It supports up to 64GB of DDR4 RAM with a clock speed of 2133MHz, utilizing a dual-channel memory architecture. This provides ample memory capacity for multitasking and running demanding applications smoothly. The motherboard's chipset is the Intel H110, which provides stable and efficient operation. For graphics, it features an integrated Intel HD Graphics processor, along with support for multiple VGA outputs, including HD and VGA ports. This allows you to connect multiple displays for enhanced productivity or gaming experiences. In terms of expansion slots, the motherboard offers one PCIe x16 3.0/2.0 slot and one PCIe x16 2.0 slot, providing flexibility for adding dedicated graphics cards or other expansion cards. Additionally, it includes storage options such as an M.2 socket for high-speed SSDs and four SATA 6Gb/s ports for traditional hard drives or SSDs. Connectivity is well-covered with a Realtek LAN chip for networking and a Realtek ALC 6-channel audio chip for high-quality audio output. The motherboard also features USB ports for various peripherals, including four USB 3.0 ports and six USB 2.0 ports. The back panel offers a range of I/O options, including VGA and HDMI ports, USB 3.1 Gen 1 ports, USB 2.0 ports, LAN, and audio jacks. Internal connectors include USB and SATA ports, CPU and system fan connectors, and power connectors. Measuring 215 x 170mm, this micro ATX motherboard is compact and can fit into a variety of PC cases. Esonic provides a 1-year warranty, ensuring peace of mind and support for your investment. In summary, the Esonic Intel H110DA1 DDR4 Motherboard is a feature-rich and versatile motherboard that provides excellent support for Intel processors, robust memory capabilities, ample connectivity options, and expansion possibilities, all in a compact form factor. Whether you're building a budget-friendly office PC or a gaming rig, this motherboard offers a solid foundation for your computing needs.

Features

• Processor Compatibility: Supports Intel Socket 1151 for 6th, 7th, 8th, and 9th Generation Core processors, including Core i7, Core i5, Core i3, Pentium, and Celeron CPUs.
• Memory Support: Two DDR4 DIMM slots that can accommodate up to 64GB of RAM with a clock speed of 2133MHz, utilizing dual-channel memory architecture for improved performance.
• Chipset: Powered by the Intel H110 chipset, ensuring stability and reliability for your system.
• Graphics: Integrated Intel HD Graphics support and multiple VGA output options, including HD and VGA ports, for flexible display configurations.
• Expansion Slots: Includes one PCIe x16 3.0/2.0 slot and one PCIe x16 2.0 slot, allowing for the installation of dedicated graphics cards and other expansion cards.
• Storage Options: Features one M.2 socket that supports 2260/2280 SSDs, along with four SATA 6Gb/s ports for additional storage devices.
• Networking: Equipped with a Realtek LAN chip for reliable wired network connectivity.
• Audio: Utilizes a Realtek ALC 6-channel audio chip for high-quality sound output.
• USB Ports: Provides four USB 3.0 ports (two at the back panel and two on the mid-board) and six USB 2.0 ports (two at the back panel and two on the mid-board) for connecting various peripherals.

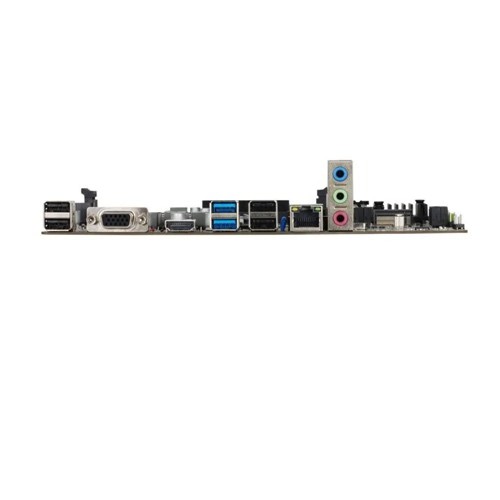

• Back Panel I/O: Offers a comprehensive set of I/O options, including VGA and HDMI ports, USB 3.1 Gen 1 ports, USB 2.0 ports, LAN (RJ45) port, and audio jacks.
• Internal Connectors: Includes USB 3.1 Gen 1 and USB 2.0 connectors for internal peripherals, four SATA 6Gb/s ports for additional storage, CPU and system fan connectors, 24-pin ATX power connector, 4-pin 12V ATX power connector, and various other connectors for easy component installation.
• Compact Form Factor: With dimensions of 215 x 170mm, it's a micro ATX motherboard that fits into a wide range of PC cases.
• Warranty: Backed by a 1-year warranty from Esonic, ensuring support and reliability for your system.

These features make the Esonic Intel H110DA1 DDR4 Motherboard a versatile and dependable choice for building or upgrading a desktop PC, whether for office tasks, multimedia consumption, or light gaming. Its compatibility with a range of Intel processors, generous memory support, and various connectivity options make it suitable for a variety of computing needs.
