Edifier MR4 2:0 Active Near-Field Monitor Speaker

General

Brand Edifier

---

Model Edifier MR4

---

Type Monitor Speaker

---

Audio Details

Channel 2:0

---

RMS/Channel (Watt) 21Watt x 2

---

RMS/Subwoofer (Watt) No

---

Output Power 42Watt

---

Signal to Noise Ratio (dB) >- 85dB(A)

---

Frequency (Hz - KHz) 60Hz - 20kHz

---

Sensitivity +4dBu (TRS) , -10dBV (RCA/AUX)

---

Connectivity

Connectivity Mode Wired

---

USB Port No

---

USB Type No

---

Portable PA System

Speaker Configuration 2 Way

---

Number of Input Channel 2

---

Technical Info

Microphone Yes

---

FM Radio No

---

Sound Mode Monitor/ Music Mode

---

Input Interface TRS balanced, RCA unbalanced, AUX unbalanced

---

Performance

Lighting Effect No

---

Waterproof No

---

Waterproof Level/Grade No

---

Dustproof No

---

Shockproof No

---

Power

PA System No

---

Physical Description

Remote Control No

---

Dimensions 140 x 228 x 197.5mm

---

Weight (Kg) 4.5kg

---

Color Black

---

Warranty

Warranty Details 1 Year (Without Adapter)

---

Additional Info

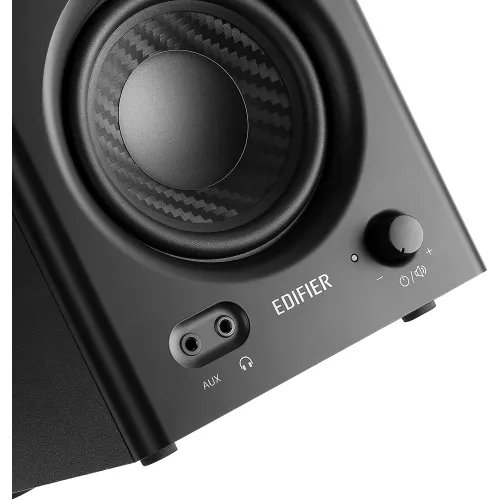

Feature Smooth frequency response for great audio reference, 1-inch silk dome tweeter and 4-inch diaphragm woofers deliver pure sound, MDF wooden cabinets minimize acoustic resonance, Simple connection to mixers, audio interfaces, computers or media players, Front-mounted headphone output and AUX input for convenience, Multi-functional knob for power, volume and sound effects toggle, Monitor and music modes to fit various scenarios, Advanced DSP Technology.

---

Others For the True Music: Based on the accurate analysis of the characteristics of the unit by the German KLIPPEL system, a flatter curve necessary for a monitor is acquired after dozens of professional tunings by Edifier Acoustic Lab. For More Low-Frequency Details: With a 4-inch woofer and the support of Class-D amplifier, the frequency can be lowered to 60Hz, fully realizing the remarkable performance of the low frequency. Working with Professional Equipments: With 6.35mm TRS balanced input jacks, MR4 Studio Monitor can connect to console, mixer and other professional equipment with the input sensibility of +4dBu to build a small music production system. Digital Signal Processor: The MR4 adopts TI high quality ADC (analog-to-digital converter) chipset, SNR up to 99dB, with TI digital power amplifier TAS5713, and the use of its built-in DSP to complete sound adjustment, to ensure excellent performance under dual mode.

---

Specialty Less Resonance: The MR4 adopts MDF wooden structure to reduce resonance and rendering effects to restore the original tone. Fine and Natural: A 1-inch silk diaphragm unit with special coating ensures smooth and natural treble, and the specially designed integrated front panel combined with the cone brings clearer diffusion of the high frequency. Upgraded Professional Quality: Moderate MICA added to the traditional PP cone keeps the hearing of softness and relaxation with more natural details and strengthens the rigidness and hardness of the cone to enhance the low frequency and to extend the depth of bass. Pure Output: Different from other entry-level monitoring speakers, MR4 adopts inductive and capacitive second-order frequency divider, so that both the woofer and tweeter can acquire better signal input and reproduce the purity of the sound. Easy to Operate and Control: Rotate the multi-function knob at the front to adjust the volume, while power on/off by long-pressing it and double-click to switch between the sound modes. No Limitation for Connection

Features of Edifier MR4 Speaker In Bangladesh

For the True Music Based on the accurate analysis of the characteristics of the unit by the German KLIPPEL system, a flatter curve necessary for a monitor is acquired after dozens of professional tunings by Edifier Acoustic Lab. For More Low-Frequency Details With a 4-inch woofer and the support of Class-D amplifier, the frequency can be lowered to 60Hz, fully realizing the remarkable performance of the low frequency. Working with Professional Equipments With 6.35mm TRS balanced input jacks, MR4 Studio Monitor can connect to console, mixer and other professional equipment with the input sensibility of +4dBu to build a small music production system. Digital Signal Processor The MR4 adopts TI high quality ADC (analog-to-digital converter) chipset, SNR up to 99dB, with TI digital power amplifier TAS5713, and the use of its built-in DSP to complete sound adjustment, to ensure excellent performance under dual mode. Less Resonance The MR4 adopts MDF wooden structure to reduce resonance and rendering effects to restore the original tone. Fine and Natural A 1-inch silk diaphragm unit with special coating ensures smooth and natural treble, and the specially designed integrated front panel combined with the cone brings clearer diffusion of the high frequency. Upgraded Professional Quality Moderate MICA added to the traditional PP cone keeps the hearing of softness and relaxation with more natural details and strengthens the rigidness and hardness of the cone to enhance the low frequency and to extend the depth of bass. Pure Output Different from other entry-level monitoring speakers, MR4 adopts inductive and capacitive second-order frequency divider, so that both the woofer and tweeter can acquire better signal input and reproduce the purity of the sound. Dual Mode Sound Effect With the special dual-mode sound effect, the user can choose monitor mode to listen to a true audio you are creating for music production, or to switch to music mode for a daily music listening experience. Easy to Operate and Control Rotate the multi-function knob at the front to adjust the volume, while power on/off by long-pressing it and double-click to switch between the sound modes. No Limitation for Connection In addition to balanced TRS input, MR4 also has two unbalanced RCA/AUX inputs and a front headphone output, which provide convenient connection to different devices simultaneously and switch to monitoring mode output to headphones. Brand - Edifier, Model - Edifier MR4, Type - Monitor Speaker, Channel - 2:0, Connectivity - Wired, Speaker Configuration - 2 Way, Number of Input Channel - 2, RMS/Channel (Watt) - 21Watt x 2, RMS/Subwoofer (Watt) - No, Output Power - 42Watt, Signal to Noise Ratio (dB) - >- 85dB(A), Frequency (Hz - KHz) - 60Hz - 20kHz, Sensitivity - +4dBu (TRS) , -10dBV (RCA/AUX), USB Port - No, USB Type - No, Microphone - Yes, Remote Control - No, FM Radio - No, Sound Mode - Monitor/ Music Mode, Input Interface - TRS balanced, RCA unbalanced, AUX unbalanced, Lighting Effect - No, Waterproof - No, Waterproof Grade - No, Dustproof - No, Shockproof - No, PA System - No, Dimensions (WxHxD) - 140 x 228 x 197.5mm, Weight - 4.5kg, Color - Black, Feature - Smooth frequency response for great audio reference, 1-inch silk dome tweeter and 4-inch diaphragm woofers deliver pure sound, MDF wooden cabinets minimize acoustic resonance, Simple connection to mixers, audio interfaces, computers or media players, Front-mounted headphone output and AUX input for convenience, Multi-functional knob for power, volume and sound effects toggle, Monitor and music modes to fit various scenarios, Advanced DSP Technology., Others - For the True Music: Based on the accurate analysis of the characteristics of the unit by the German KLIPPEL system, a flatter curve necessary for a monitor is acquired after dozens of professional tunings by Edifier Acoustic Lab. For More Low-Frequency Details: With a 4-inch woofer and the support of Class-D amplifier, the frequency can be lowered to 60Hz, fully realizing the remarkable performance of the low frequency. Working with Professional Equipments: With 6.35mm TRS balanced input jacks, MR4 Studio Monitor can connect to console, mixer and other professional equipment with the input sensibility of +4dBu to build a small music production system. Digital Signal Processor: The MR4 adopts TI high quality ADC (analog-to-digital converter) chipset, SNR up to 99dB, with TI digital power amplifier TAS5713, and the use of its built-in DSP to complete sound adjustment, to ensure excellent performance under dual mode., Specialty - Less Resonance: The MR4 adopts MDF wooden structure to reduce resonance and rendering effects to restore the original tone. Fine and Natural: A 1-inch silk diaphragm unit with special coating ensures smooth and natural treble, and the specially designed integrated front panel combined with the cone brings clearer diffusion of the high frequency. Upgraded Professional Quality: Moderate MICA added to the traditional PP cone keeps the hearing of softness and relaxation with more natural details and strengthens the rigidness and hardness of the cone to enhance the low frequency and to extend the depth of bass. Pure Output: Different from other entry-level monitoring speakers, MR4 adopts inductive and capacitive second-order frequency divider, so that both the woofer and tweeter can acquire better signal input and reproduce the purity of the sound. Easy to Operate and Control: Rotate the multi-function knob at the front to adjust the volume, while power on/off by long-pressing it and double-click to switch between the sound modes. No Limitation for Connection, Warranty - 1 Year (Without Adapter), Country of Origin - China, Made in/ Assemble - China
