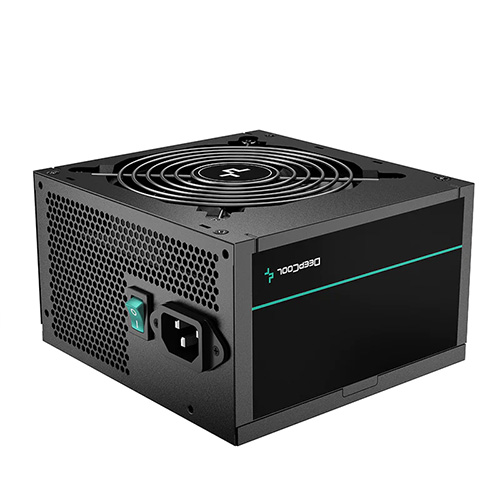

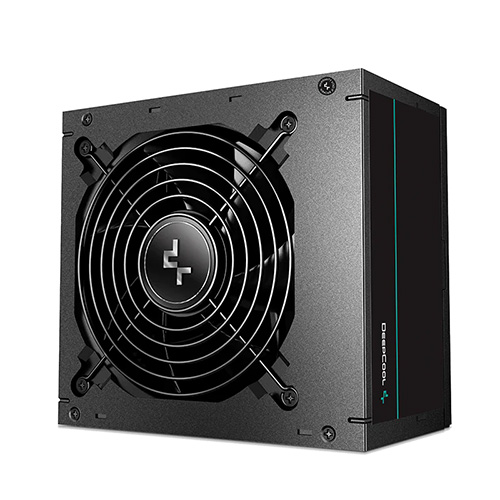

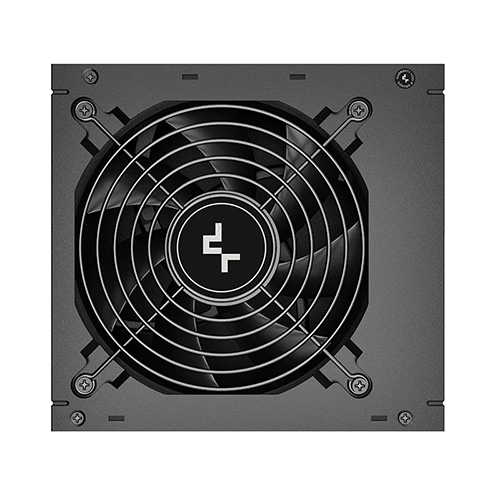

Deepcool PM750D 750 Watt 80 Plus Gold Power Supply

Deepcool PM750D 750 Watt 80 Plus Gold Power Supply

DeepCool PM750D Overview: Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value. 80 PLUS GOLD CERTIFIED  Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste. QUALITY TOPOLOG  For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability. BUILT TO SPEC  Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.80 PLUS® Gold80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)Silent and High Performance Fan120mm silent fan has temperature control function to keep low noise ENOUGH POWER TO GO AROUND  The PM750D features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence. EFFICIENCY THROUGHOUT  The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards. PEACE OF MIND  Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP. Specifications

Type	ATX12V V2.4
Product Dimensions	150×140×86mm (W x L x H)
80PLUS Certifications	GOLD
Fan Size	120mm
Fan Bearing	Hypro Bearing
Topology	Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors	Japanese Bulk Capacitor
Power Good Signal	100-150ms
Hold Up Time	≥16ms(75% Load)
Efficiency	≥90% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP/OTP/OCP
Operation Temperature	0-40°C
Regulatory	TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS
Erp Regulation	ErP(2014)
MTBF	100,000 Hours
Warranty	5 Years
