Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard

Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard
0 reviews - Write a review
  • Price: 11,400৳
  • Regular Price: 12,980৳
  • Stock : In Stock
  • Brand: Colorful
  • Model: BATTLE-AX B760M-T PRO V20

    • Key Features

    • Model: BATTLE-AX B760M-T PRO V20
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 2x DDR4, Max 64GB 4800(OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: RTL8111H Gbit network card
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
    Chipset Intel B760
    BIOS 128M UEFI, supporting multiple languages
    Form Factor M-ATX
    240mm x 207mm
    Audio 5.1 Channel sound card
    Expansion Slots
    PCI 1xPCIe 4.0 x16 slot
    1xPCIe 3.0 x1 slot
    Memory
    Type DDR4
    Slots 2
    Supported Memory - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory
    - support Intel Extreme Memory Profile (XMP) memory technology
    - supports dual channel memory technology
    Maximum Memory support up to 64 GB of memory (a single socket can support up to 32 GB of memory)
    Graphics
    Graphics Integrated Graphics Processor-Intel HD Graphics support:
    - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
    - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
    Connector & Ports
    HDMI 1x HDMI
    VGA (s) - 1×DP 1.2 interface
    LAN Port (s) RTL8125 2.5G network card
    Supported Storage 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
    - M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
    - M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)

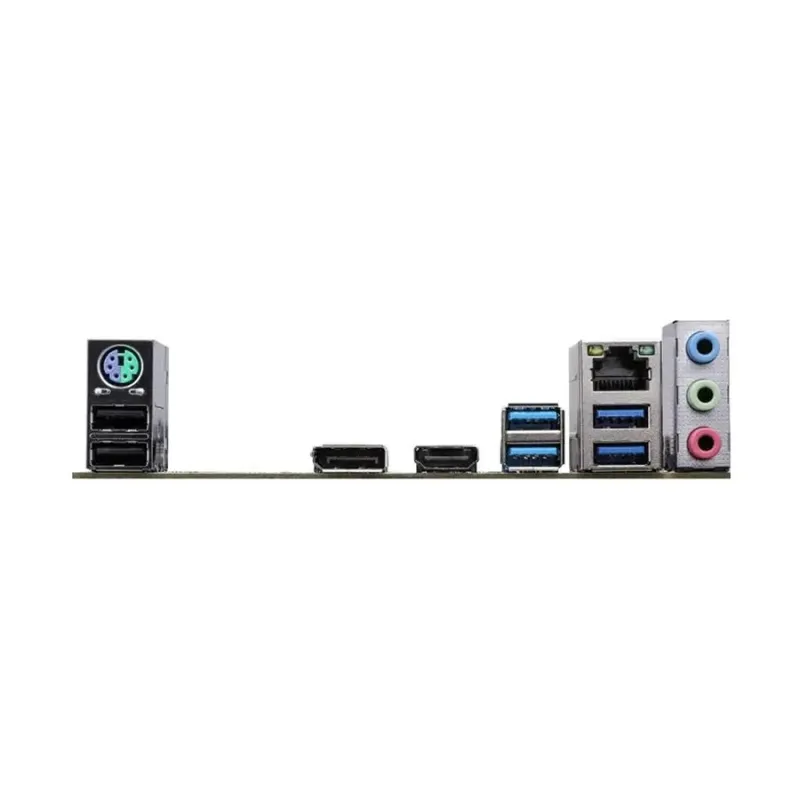

    Internal I/O Ports Rear I/O interface:
    - 1×PS/2 interface
    - 2×USB 2.0 interfaces
    - 4×USB 3.2 Gen 1 Type-A interfaces
    - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
    - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
    - 1×2.5G network interface
    - 3×audio interfaces (audio input/audio output/microphone)
    Onboard device interface:
    - 1×CPU fan pin
    - 2×system fan pins
    - 1×water cooling pump pin
    - 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
    - 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
    - 2×5V 3-pin ARGB pins
    - 1×front audio pin
    - 1×front panel pin
    - 1×speaker pin
    - 1×ME write protection jumper
    - 1×clear CMOS jumper
    - 1×BIOS burner pin
    - 1×POST card pin
    - 1×PS/2 call Wake up control jumper
    Warranty Information
    Manufacturing Warranty 3 years

    Description

    Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard

    Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard you can immerse yourself in a world of bright gaming and content production. This high-performance motherboard is intended to meet the needs of both gamers and content makers. It is designed to accommodate 14th, 13th, and 12th Generation Intel Processors (LGA1700) and serves as a flexible platform for a variety of computing demands. The motherboard offers a strong and responsive system with two DDR4 slots supporting up to 64GB of RAM and overclocking capabilities of up to 4800MHz (OC). Experience stunning visuals with the graphics output options of 1 HDMI and 1 DisplayPort, while the 2.5G fast network card guarantees high-speed internet connectivity. Seamlessly connect your peripherals with 4 USB 3.2 Gen 1 Type-A and 2 USB 2.0 interfaces. The motherboard also prioritizes storage performance with 2 PCIe 4.0 x4 M.2 SSD slots. Customize your RGB lighting using the 5V 3-pin ARGB pins and the iGame Center light effect control program. Adjust the light efficiency of heat sinks, cooling fans, and memory in real time. Six protective technologies are included in the motherboard to provide stability and security. Quality is assured after 200 thorough tests, and the PCB atomization process has been completely updated, improving overall performance and longevity. The Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard is your ticket to a visually attractive and high-performing computing experience, whether you're pushing the limits in gaming or generating content that requires accuracy and speed.

    Write a review

    Please login or register to review

    What is the price of Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard in Bangladesh?

    The latest price of Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard in Bangladesh is 11,400৳ You can buy the Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard at best price from our website or visit any of our showrooms.
