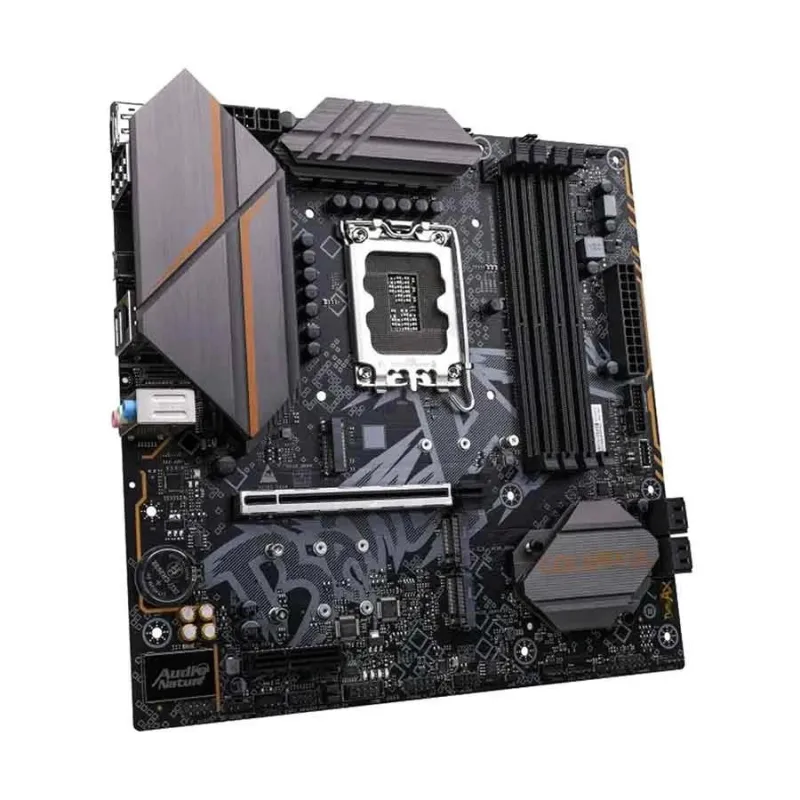

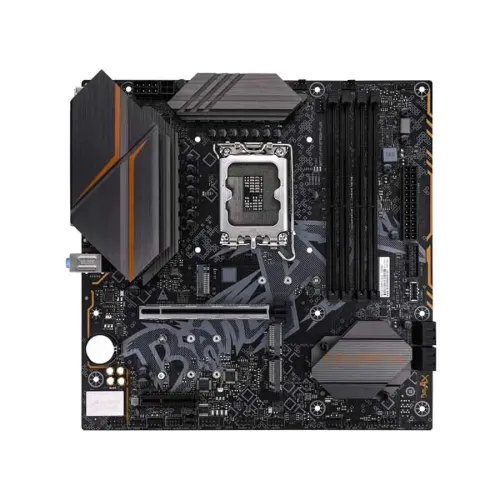

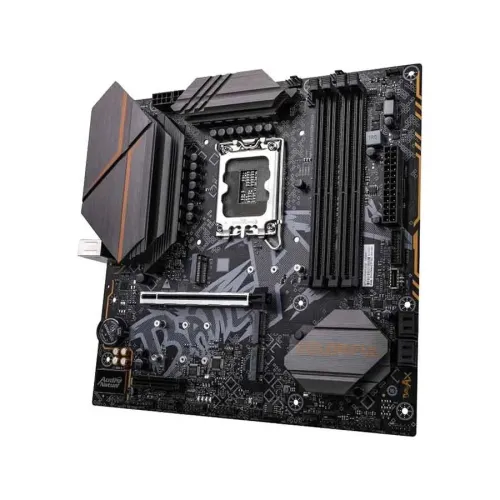

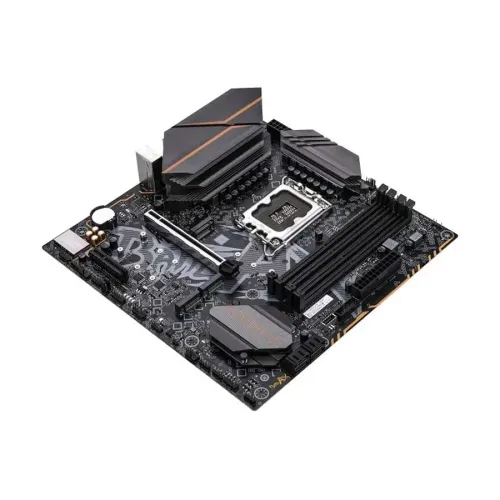

Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard

Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard
0 reviews - Write a review
  • Price: 16,900৳
  • Regular Price: 19,200৳
  • Stock : In Stock
  • Brand: Colorful
  • Model: BATTLE-AX B760M-PLUS V20

    • Key Features

    • Model: BATTLE-AX B760M-PLUS V20
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR4, Max 128GB 4800(OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: RTL8125 2.5Gbit network card
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium ® And Cylon processor
    Chipset Intel B760
    BIOS 128M UEFI, supporting multiple languages
    Form Factor M-ATX
    245mm x 245mm
    Audio 5.1 Channel sound card
    Expansion Slots
    PCI 1×PCIe 5.0 x16 slot
    1×PCIe 3.0 x4 slot
    Memory
    Type DDR4
    Slots 4
    Supported Memory DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
    - Intel is supported Extreme Memory Profile (XMP) memory technology
    - supports dual channel memory technology
    Maximum Memory up to 128 GB of memory (a single socket can support up to 32 GB of memory)
    Graphics
    Graphics Integrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    Connector & Ports
    HDMI 1x HDMI
    Display Port (s) 1x DisplayPort
    LAN Port (s) RTL8125 2.5Gbit network card
    Supported Storage A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
    - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
    - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
    - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

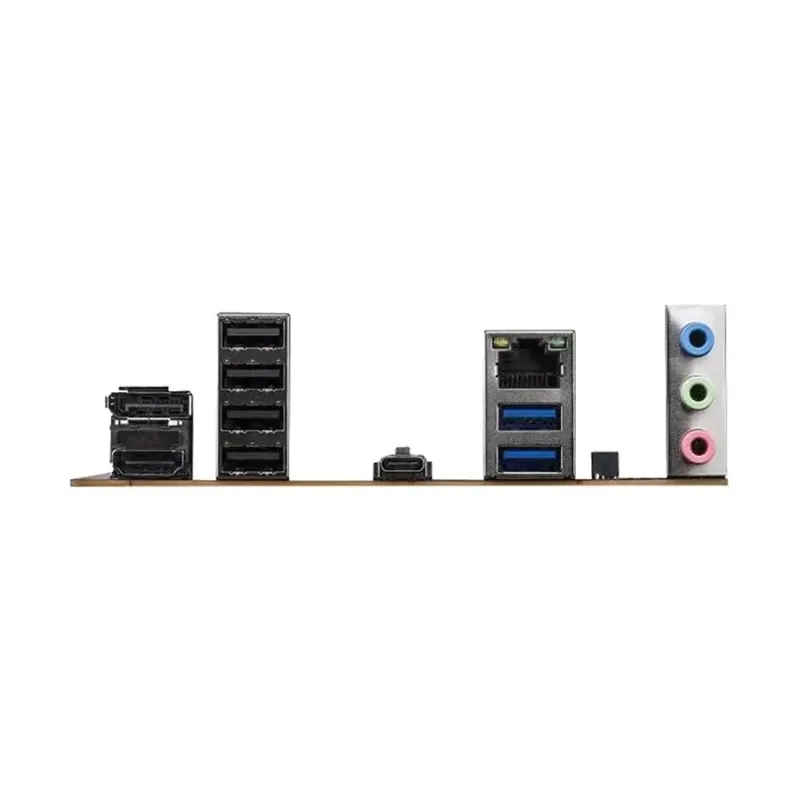

    Internal I/O Ports Rear I/O interface:
    - 4×USB 2.0 interfaces
    - 2×USB 3.2 Gen 1 Type-A interfaces
    - 1×USB 3.2 Gen 2 Type-C interface
    - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
    - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution
    - 1×2.5G network interface
    - 3×audio interfaces (audio input/audio output/microphone)
    On board device interface:
    - 1×CPU fan pin
    - 3 system fan pins
    - 1×water-cooled pump pin
    - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
    - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
    - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface
    - 2×5V 3-pin ARGB pins
    - 2×12V 4-pin RGB pin
    - 1×Front audio pin
    - 1×front panel pin
    - 1×speaker pin
    - 1×clear CMOS jumper
    - 1×COM port pin
    - 1×BIOS burner pin
    - 1×POST card pin
    - 1×ME write protection jumper
    - 1×RGB lamp effect control jumper
    Warranty Information
    Manufacturing Warranty 3 years


    Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard

    The colorful BATTLE-AX B760M-PLUS V20 Motherboard is a high-performance motherboard that elevates your gaming and computer experience. This motherboard is packed with cutting-edge features and remarkable characteristics, and it is intended to fulfill the needs of current PC enthusiasts and gamers. The BATTLE-AX B760M-PLUS V20 motherboard has a powerful 12+1 phase reinforced power supply, guaranteeing steady and efficient power delivery to your components. This design is suited for overclocking and demanding applications. This motherboard includes three PCIe 4.0 x4 M.2 SSD slots, letting you make full use of high-speed NVMe storage devices for lightning-fast data access and speedy load times in your games and applications. The motherboard has one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed back connectors. These interfaces offer lightning-fast data transmission rates and good interoperability with a wide range of peripherals. This motherboard's Realtek 2.5G high-speed wired network card offers seamless and lag-free online gaming and multimedia streaming. You will have minimal latency and high-speed internet access. The CNVI WiFi/BT slot supports an extended WiFi module, allowing you to connect wirelessly and enjoy the convenience of Bluetooth connectivity. The iGame Center light efficiency control software is compatible with the BATTLE-AX B760M-PLUS V20 motherboard. This program allows you to synchronize and personalize the lighting effects of the radiator, cooling fan, and memory, giving your system a personal touch. Safety and stability are critical, and this motherboard has six safety technologies to provide dependable and uninterrupted performance, protecting your components from harm. Each BATTLE-AX B760M-PLUS V20 motherboard is subjected to a rigorous quality control process before reaching your hands. Colorful ensures the finest quality product through 200 rigorous testing methods. The PCB atomization process has been significantly improved, increasing the motherboard's longevity and performance. It aids in increased longevity and heat dissipation.
