Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard

Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard

Specification

Supported CPU	Support for 10th/11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
Chipset	Intel Z490
Memory	Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933 Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC) 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module
Slots	3 x PCIe 3.0 x1 Slots 2 x PCIe 3.0 x16 Slots(x 16 + x 4)
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA III(6Gb/s )ports 1 x M2_32G_1 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology 1 x M2_32G_2 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology 6 x SATA III (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
LAN	Intel i211-AT; 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability Supports Super LAN Surge Protection
Audio	ALC1150 7.1 Channels, High Definition Audio
USB Port	1 x USB 3.2 (Gen2) Type-C port (1 on rear I/O) 1 x USB 3.2 (Gen2) port (1 on rear I/O) 10 x USB 3.2 (Gen1) ports (8 on rear I/Os and 2 via internal header) 4 x USB 2.0 ports (4 via internal header)
Internal I/O Ports	6 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type WiFi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 2 x 8-Pin Power Connectors 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 3 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header 1 x Thunderbolt 3 Header 2 x LED Header (5V) 1 x LED Header (12V)

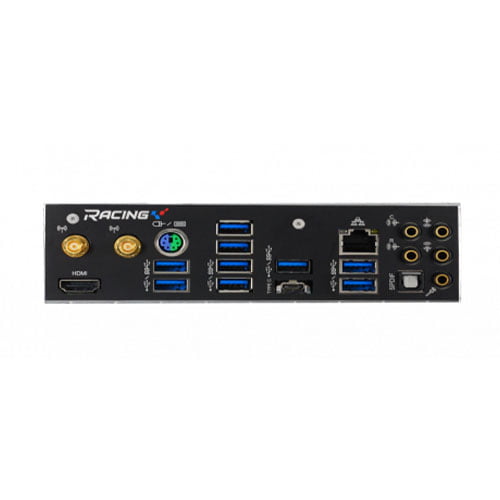

External I/O Ports	2 x WiFi Antenna Ports 1 x PS/2 Keyboard/ Mouse 1 x HDMI Port 1 x USB 3.2 (Gen 2) Type-C Port 1 x USB 3.2 (Gen 2) Port 8 x USB 3.2 (Gen1) ports 1 x LAN port 5 x Audio Jack 1 x SPDIF_Out
DIMENSIONS	30.5cm x 24.4cm ( W x L )
Form Factor	ATX Form Factor
HDMI	HDMI 4K resolution

Description

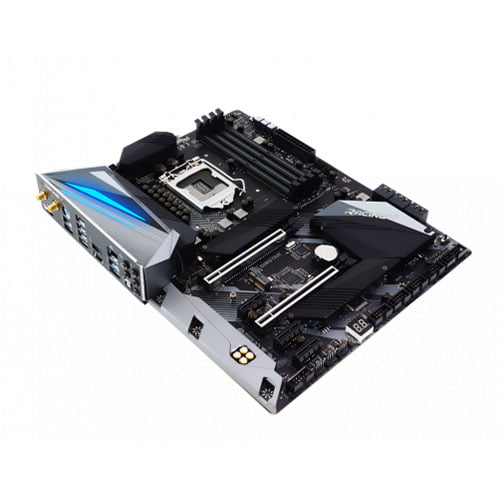

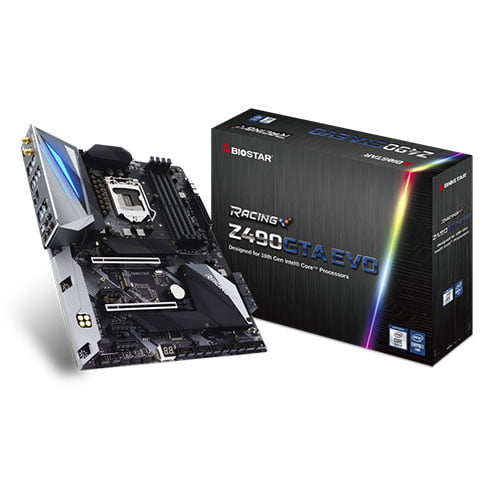

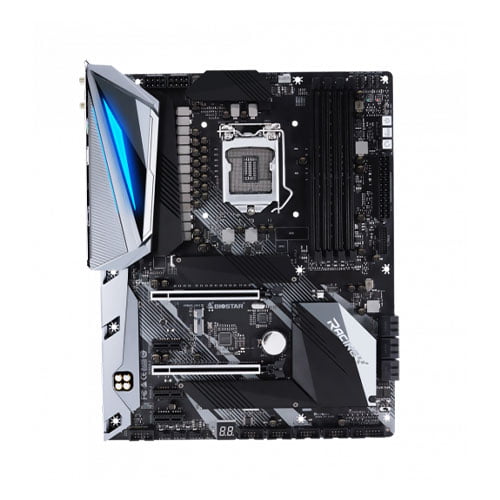

Biostar Racing Z490GTA EVO Motherboard

Powered exclusively by 10th and 11th gen Generation Intel Core, Pentium Gold, and Celeron processors, the Racing Z490GTA EVO LGA 1200 ATX Motherboard from Biostar boasts a robust power design, comprehensive cooling solutions, and intelligent tuning options. It provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This motherboard will fit in ATX sized cases, supports the LGA 1200 socket, the Intel Z490 chipset, and is compatible with Windows 10 (64-bit). There is also 6 x SATA III Connectors (6Gb/s) x M.2 (E Key) Socket: Supports 2230 type WiFi & Bluetooth module and Intel CNVi,2 x USB 2.0 Header (each header supports 2 USB 2.0 ports),1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports),2 x 8-Pin Power Connectors,1 x 24-Pin Power Connector,1 x CPU Fan Connector,1 x CPU water cooling connector (CPU_OPT),3 x System Fan Connectors,1 x Front Panel Header,1 x Front Audio Header, Clear CMOS Header,1 x COM Port Header,1 x Thunderbolt 3 Header,2 x LED Header (5V),1 x LED Header (12V) For delivering sharp, clear graphics, this motherboard supports a maximum resolution of 4096 x 2304 at 60 Hz using DisplayPort 1.4 and HDMI 1.4b outputs.
