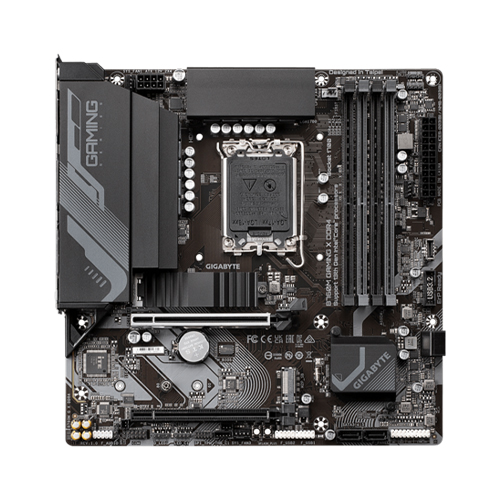

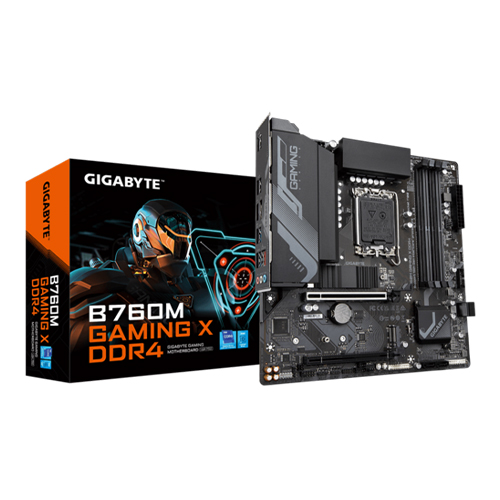

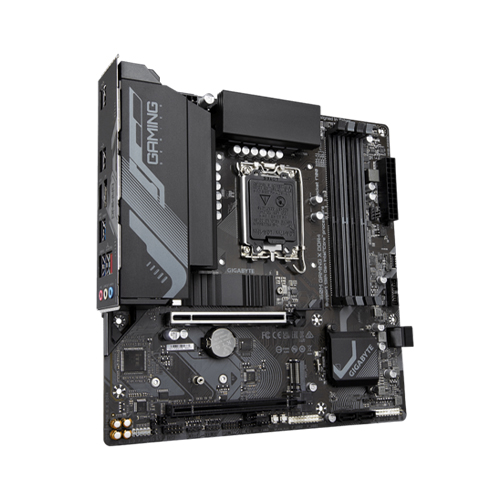

Gigabyte B760M GAMING X DDR4 13th Gen Micro ATX Motherboard

Gigabyte B760M GAMING X DDR4 13th Gen Micro ATX Motherboard

GIGABYTE B760M GAMING X MOTHERBOARD SPECIFICATIONS:



Supported CPU	LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors L3 Cache Varies With CPU
Chipset	Intel® B760 Express Chipset
Memory	Support For DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.) / 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules
Graphics	Integrated Graphics Processor-Intel® HD Graphics Support: 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3.
Slots	1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X4 (PCIEX4)
Supported Storage	CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices
Bluetooth	5.3 Or 5.2 Depends On Module
LAN	Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out
USB Port	Chipset: 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 1 X USB 2.0/1.1 Port On The Back Panel Chipset+2 USB 2.0 Hubs: 8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Serial Port Header 1 X Reset Button 1 X Q-Flash Plus Button 1 X Reset Jumper 1 X Clear CMOS Jumper

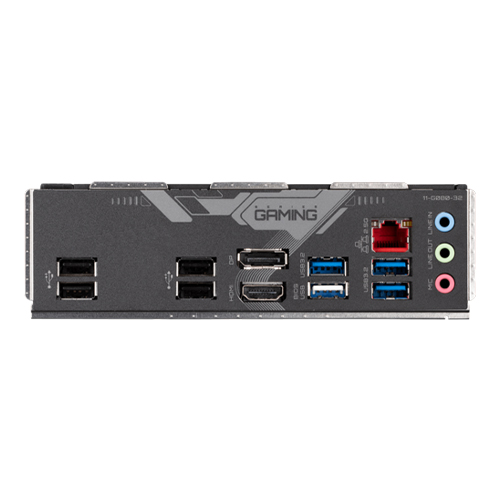

External I/O Ports	3 X USB 3.2 Gen 1 Ports 5 X USB 2.0/1.1 Ports 2 X SMA Antenna Connectors (2T2R) 1 X HDMI 2.0 Port 1 X DisplayPort 1 X RJ-45 Port 3 X Audio Jacks
WiFi	AMD Wi-Fi 6E RZ608 (MT7921K) (PCB Rev. 1.0) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.2 Support For 11ax 80MHz Wireless Standard And Up To 1.2 Gbps Data Rate Intel® Wi-Fi 6E AX210 (PCB Rev. 1.1) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.3 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate Intel® Wi-Fi 6E AX211 (PCB Rev. 1.2) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.3 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate Realtek® Wi-Fi 6E RTL8852CE (PCB Rev. 1.3) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.3 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate
DIMENSIONS	24.4cm X 24.4cm
Form Factor	Micro ATX
BIOS	1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI	1 X HDMI 2.0 Port
Software Features	Norton® Internet Security (OEM Version) LAN Bandwidth Management Software
Others	I/O Controller ITE® I/O Controller Chip H/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control * Whether The Fan Speed Control Function Is Supported Will Depend On The Fan You Install.
Warranty	3 Years

GIGABYTE B760M GAMING X AX DDR4 MOTHERBOARD

The GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD is a gaming and enthusiast-oriented motherboard. This motherboard features an LGA1700 socket that supports Intel Core, Pentium Gold, and Celeron CPUs from the 13th and 12th generations. The motherboard also includes an Intel B760 chipset and DDR4 memory module support ranging from 2133 to 5333 MT/s. The motherboard's four DDR DIMM ports can accommodate up to 128 GB of system memory in a dual-channel design. For flawless visual output, the integrated graphics processor supports Intel HD Graphics, and there are also 1 DisplayPort and 1 HDMI connector. A Realtek Audio CODEC with high-definition audio and support for 2/4/5.1/7.1-channel sound is also included on the motherboard. A Realtek 2.5GbE LAN chip is also included, as well as a variety of wireless communication choices, including AMD Wi-Fi 6E RZ608, Intel Wi-Fi 6E AX210, Intel Wi-Fi 6E AX211, and Realtek Wi-Fi 6E RTL8852CE, all of which support the 11ax wireless standard and varying data speeds. The motherboard features one PCI Express x16 slot (PCIEX16) and one PCI Express x16 slot (PCIEX4) for graphics cards, as well as M.2 ports for high-speed storage devices. There are also four SATA 6Gb/s ports with support for RAID 0, 1, 5, and 10. The motherboard also includes a number of USB ports, including a USB Type-C connector that supports USB 3.2 Gen 2. Finally, the GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD is a feature-rich motherboard that provides outstanding performance, connection, and expandability to gamers and enthusiasts.
