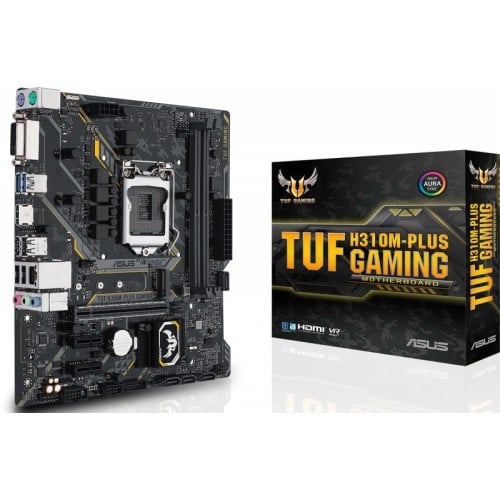

Asus TUF H310M-PLUS GAMING 8th Gen mATX Motherboard

Asus TUF H310M-PLUS GAMING 8th Gen mATX Motherboard
Asus TUF H310M-PLUS GAMING 8th Gen mATX Motherboard
0 reviews - Write a review
  • Price: 7,900৳
  • Regular Price: 8,800৳
  • Stock : In Stock
  • Brand: Asus
  • Model: TUF H310M-PLUS GAMING
    • Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Asus TUF H310M-PLUS GAMING 8th Gen mATX Motherboard

    Specification:

    Basic Information
    Supported CPU Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
    Chipset Intel® H310
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search
    Form Factor Micro ATX Form Factor 8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )
    Expansion Slots
    PCI Intel® H310 Chipset 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1
    M.2 Socket 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)
    Memory
    Type 2 x DIMM
    Slots DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Supported Memory DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
    Maximum Mamory 32GB
    Graphics
    Graphics Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    Max Shared Memory 1024 MB
    Connector & Ports
    HDMI 1 x HDMI
    USB (s) Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
    LAN Port (s) Intel® I219V, 1 x Gigabit LAN Controller(s) TUF LANGuard
    Supported Storage Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)*1 4 x SATA 6Gb/s port(s),
    Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2 Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    Internal I/O Ports 1 x RGB Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
    DVI-D (s) 1 X DVI-D
    Warranty Information
    Manufacturing Warranty 03 years

    Description :

    Asus TUF H310M-PLUS GAMING 8th Gen mATX Motherboard

    The focus of manufacturing TUF Gaming motherboards is to use highly durable components for providing higher sustainability. The company has collaborated with the TUF Gaming Alliance to ensure easy building alongside with best compatibility as well as best protection. The TUF boards has introduced innovative design for easy and safe DIY builds and unique combination of military-grade TUF components, TUF Protection for stronger gaming built.

    Main Ingredients of the Board

    Asus TUF H310M-PLUS GAMING mATX gaming motherboard compatible with Intel 8th gen (Socket 1151) i3, i5 & i7 processor. This aura sync RGB board also supports dual channel DDR4 maximum 32GB memory and it has the capability of lightning-fast 32Gbps M.2 and native USB 3.1 Gen 1 interface. Focusing on the graphics, it will support Intel HD graphics with 1024MB shared graphics memory and having the maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz for HDMI & 1920 x 1200 @ 60 Hz for DVI-D slots. This military-grade TUF material motherboard has Multi-VGA output and Asus Optimem for stable performance.

    Special TUF Features for You

    This board has few special features such TUF Protection that includes SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long run benefits. TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs are equipped on as military-grade TUF components to ensure maximum durability. Moreover, Aura Sync RGB can synchronize LED lighting according to your likeable devices
