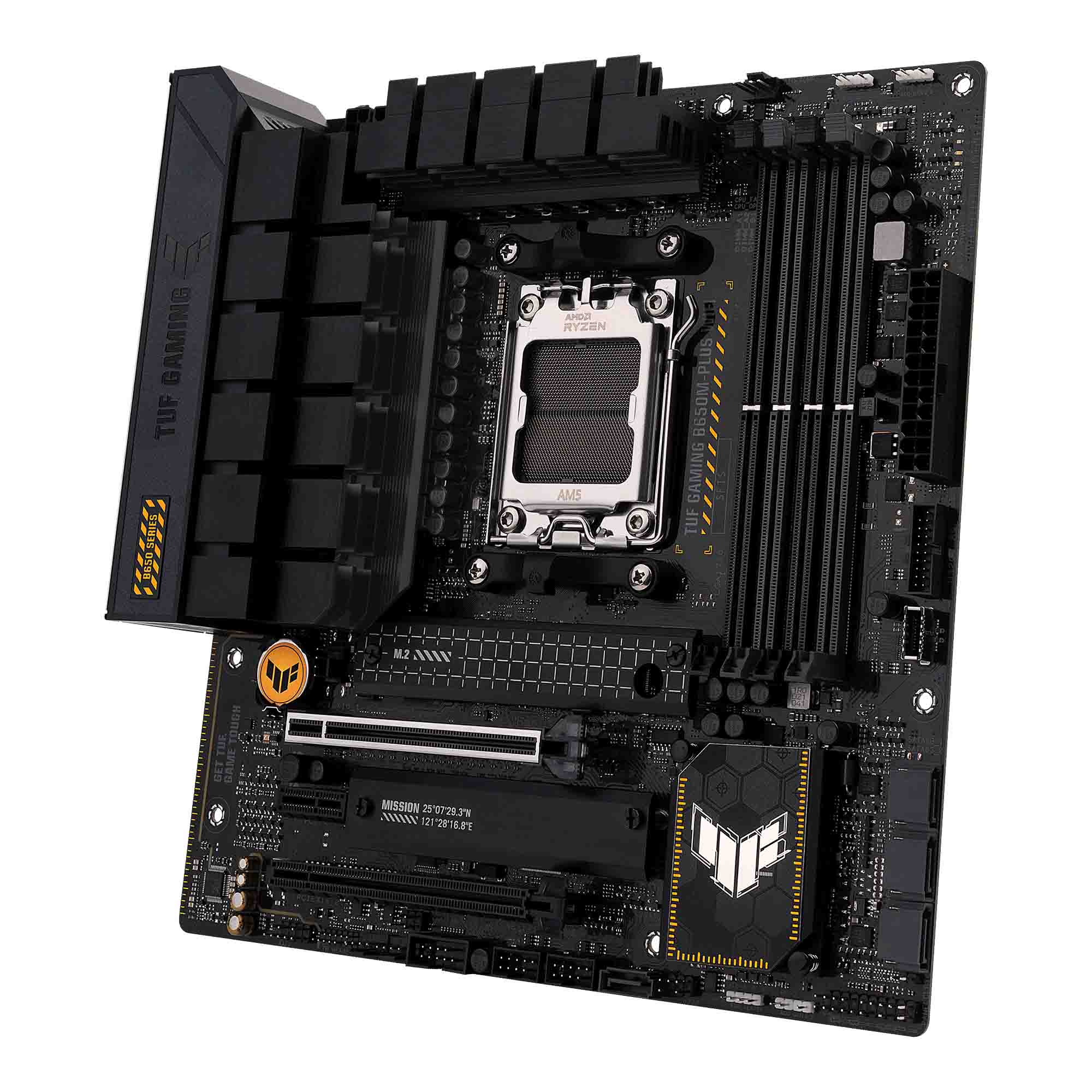

ASUS TUF GAMING B650M-PLUS WIFI AM5 MICRO-ATX MOTHERBOARD
















Key Features
- Model: TUF GAMING B650M-PLUS WIFI
- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 128GB, 6400+(OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 6
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088
NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.
You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.
Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.
Motherboard | |
Supported CPU | AMD Socket AM5 For AMD Ryzen 7000 Series Desktop Processors |
Chipset | AMD B650 |
Memory | 4 X DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles For Overclocking (EXPO™) OptiMem II |
Graphics | 1 X DisplayPort* 1 X HDMI® Port** * Supports Max. 8K@60Hz As Specified In DisplayPort 1.4. ** Supports 4K@60Hz As Specified In HDMI 2.1. |
Supported Storage | Total Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 5.0 X4 Mode) M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) AMD B650 Chipset 4 X SATA 6Gb/S Ports *AMD RAIDXpert2 Technology Supports Both NVMe RAID 0/1/10 And SATA RAID 0/1/10. |
Bluetooth | V5.2 |
LAN | 1 X Realtek 2.5Gb Ethernet TUF LANGuard |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192 KHz Playback Audio Features - Audio Shielding - Premium Audio Capacitors - Dedicated Audio PCB Layers |
USB Port | Rear USB (Total 8 Ports) 1 X USB 3.2 Gen 2x2 Port (1 X USB Type-C®) 2 X USB 3.2 Gen 2 Ports (2 X Type-A) 1 X USB 3.2 Gen 1 Port (1 X Type-A) 4 X USB 2.0 Ports (4 X Type-A) Front USB (Total 7 Ports) 1 X USB 3.2 Gen 1 Connector (Supports USB Type-C®) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports |
Internal I/O Ports | Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin CPU OPT Fan Header 1 X 4-Pin AIO Pump Header 3 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector 1 X 4-Pin +12V Power Connector Storage Related 2 X M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB Gen 1 Connector (Supports USB Type-C® ) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports Miscellaneous 3 X Addressable Gen 2 Headers 1 X Aura RGB Header 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X 20-3 Pin System Panel Header With Chassis Intrude Function 1 X Thunderbolt™ (USB4®) Header |
External I/O Ports | 1 X USB 3.2 Gen 2x2 Port (1 X USB Type-C®) 2 X USB 3.2 Gen 2 Ports (2 X Type-A) 1 X USB 3.2 Gen 1 Port (1 X Type-A) 4 X USB 2.0 Ports (4 X Type-A) 1 X DisplayPort 1 X HDMI®Port 1 X Wi-Fi Module 1 X Realtek 2.5Gb Ethernet Port 5 X Audio Jacks 1 X BIOS FlashBack™ Button |
WiFi | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax) Supports 2.4/5GHz Frequency Band |
DIMENSIONS | 9.6 Inch X 9.6 Inch (24.4 Cm X 24.4 Cm) |
Form Factor | Micro-ATX |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital Power Design With DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) - Q-Slot ASUS Thermal Solution - M.2 Heatsink - VRM Heatsink Design ASUS EZ DIY - BIOS FlashBack™ Button - BIOS FlashBack™ LED - ProCool - Pre-Mounted I/O Shield - SafeDIMM Aura Sync - Aura RGB Header - Addressable Gen 2 Headers |
HDMI | 1 Port |
Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-Virus Software (Free Trial Version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Warranty | 3 Years |
ASUS TUF GAMING B650M-PLUS WIFI AM5 MICRO-ATX MOTHERBOARD
ASUS TUF GAMING B650M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power-saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
Teamed Power Stages
12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETs and drivers into a single package to deliver power, efficiency, and stable performance for all compatible AMD processors.
DRAM Overclocking Performance
DDR5 OC 6400
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
Cooler By Design
1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
2. Optimized M.2 Heatsink Design
All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.
EASY PC DIY
The TUF GAMING line offers an easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options, and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
Safeslot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy, and confidence.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
IMMERSIVE GAMING
TUF GAMING B650 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks, and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
THIS CHANGES EVERYTHING
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and an 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.
What is the price of ASUS TUF GAMING B650M-PLUS WIFI AM5 MICRO-ATX MOTHERBOARD in Bangladesh?
The latest price of ASUS TUF GAMING B650M-PLUS WIFI AM5 MICRO-ATX MOTHERBOARD in Bangladesh is 32,500৳ You can buy the ASUS TUF GAMING B650M-PLUS WIFI AM5 MICRO-ATX MOTHERBOARD at best price from our website or visit any of our showrooms.
