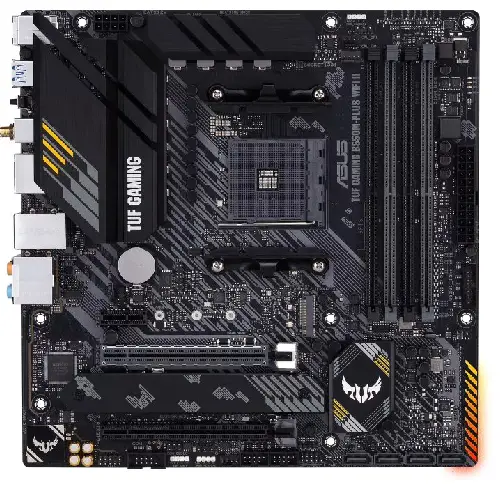

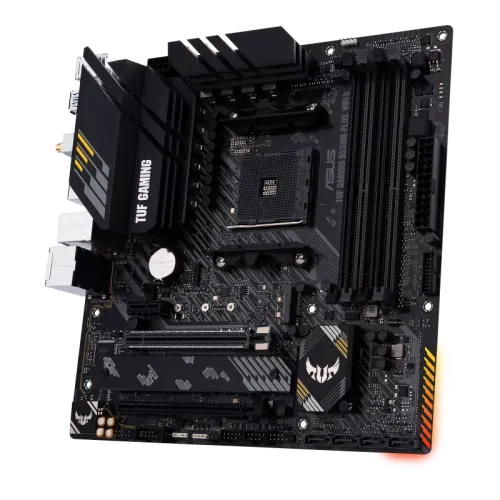

Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)

Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)
0 reviews - Write a review
  • Price:
  • Regular Price: 0৳
  • Stock : In Stock
  • Brand: Asus
  • Model: TUF GAMING B550M Plus WIFI II

    • Key Features

    • Model: TUF GAMING B550M Plus WIFI II
    • Supported CPU: Ryzen 5000/ 5000 G/ 4000 G/ 3000 Series Processors
    • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
    • Graphics Output: 1 x Display Port, 1 x HDMI
    • Features: Wi-Fi 6, Realtek 2.5Gb Ethernet
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)

    Specification

    Supported CPUAMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
    ChipsetB550
    BIOS256 Mb Flash ROM, UEFI AMI BIOS
    Form FactormicroATX
    24.4cm x 24.4cm
    PCIAMD Ryzen 5000 Series/ 3000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
    1 x PCIe 3.0 x16 slot (supports x16 mode)*
    AMD B550 Chipset
    1 x PCIe 3.0 x16 slot (supports x4 mode)
    1 x PCIe 3.0 x1 slot
    Support PCIe bifurcation for RAID on CPU function.
    PCIEX16_2 will run x2 mode when the PCIEX1 slot is used.
    M.2 SocketSupports 2 x M.2 slots and 4 x SATA 6Gb/s ports
    TypeDDR4
    Slots4 x DIMM
    Supported Memory4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory
    Maximum Memory128GB
    Graphics1 x DisplayPort
    1 x HDMI port
    HDMI1 x HDMI 2.1(4K@60HZ)
    Display Port (s)1 x DisplayPort 1.2

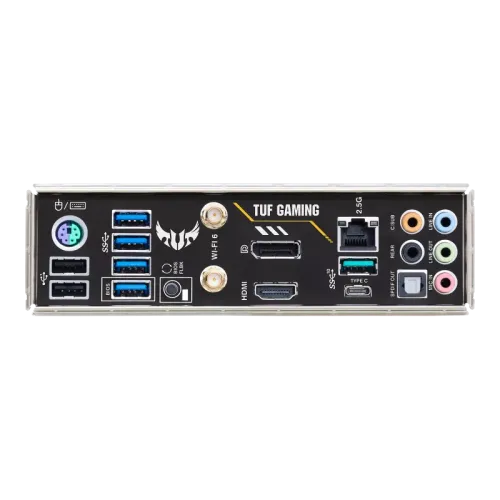

    USB (s)Rear USB:Total 8 ports
    2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB:Total 6 ports
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    LAN Port (s)TUF LANGuard
    Wireless Communication module2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
    Supported StorageAMD Ryzen 5000 Series/ 3000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
    AMD B550 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    Support RAID 0, 1, 10
    Internal I/O PortsFan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    1 x Addressable Gen 2 header
    2 x AURA RGB headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header
    1 x 10-1 pin System Panel header
    TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
    Special FeaturesASUS TUF PROTECTION
    - DIGI+ VRM (Digital power design with DrMOS)
    - Enhanced DRAM Overcurrent Protection
    - ESD Guards
    - TUF LANGuard
    - Overvoltage Protection
    - SafeSlot
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack button
    - BIOS FlashBack LED
    - ProCool
    AURA Sync
    - AURA RGB headers
    - Addressable Gen 2 header
    Bundled SoftwareASUS Exclusive Software
    Armory Crate
    - Aura Creator
    - Aura Sync
    - Two-Way AI Noise Cancelation
    AI Suite 3
    - Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    Fan Xpert 2+
    - EZ update
    TUF GAMING CPU-Z
    AI Charger
    DAEMON Tools
    DTS Custom for GAMING Headsets
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    Manufacturing Warranty3 Years

    Description

    Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard (China Version)

    The Asus TUF GAMING B550M Plus WIFI II Motherboard is a very important element in the field of the latest AMD platform. This motherboard has been combined with gaming features. That makes it more durable. The motherboard is engineered with an upgraded power solution and cooling options. This makes the motherboard perfect to deliver rock performance. The motherboard has 8+2 DrMOS power stages. Also has high-quality alloy chokes and durable capacitors. That allows the provision of reliable power for this latest AM B core CPUs. The motherboard is easy to set up even for first-time builders. This TUF gaming motherboard builds your gaming dream real without any complexity.

    Wi-Fi 6 and Realtek 2.5Gb Ethernet

    The Asus TUF GAMING B550M Plus WIFI II has an updated WiFi version. The WiFi 6 is compatible with the 802.11ax standard. And it gives a bandwidth of up to 2.4Gbps. It is more important for power users. It is designed to operate more effectively on congested networks with a lot of competing traffic. So, by pairing the motherboard with ASUS WiFi 6 router, you can get the benefit of WiFi 6 network potentiality. The motherboard has also a 2.5 Gb LAN with ASUS LANGuard. This gives you a high-performance gaming experience.

    Gaming Audio & AI Noise Cancelling Technology

    The Asus TUF GAMING B550M Plus WIFI II has industry-leading gaming audio. The high-fidelity audio from a SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III takes you deeper into the sound. That allows you to enjoy the full sound. The noise canceling technology provides a noise-free sound that avoids keyboard clatter, mouse clicks, and other forms of environmental noise.

    Connectivity

    The Asus TUF GAMING B550M Plus WIFI supports the best gaming connectivity. It supports HDMI 2.1 (4K,60HZ) and DisplayPort 1.2 output. This motherboard has USB connectivity. Many USB ports accommodate peripheral-laden gaming setups, including Type-A and Type-C connections with fast USB 3.2 Gen 2 connectivity for compatible cases.

    Game look

    The Asus TUF GAMING B550M Plus WIFI II has exclusive Aura Sync RGB lighting. This feature offers full RGB lighting control. Also offers a variety of functions with several useful settings for both strips attached to the onboard RGB connectors and the built-in RGB LEDs. It can also be connected with a broad range of hardware that supports Aura. So it gives an excellent gaming look.
