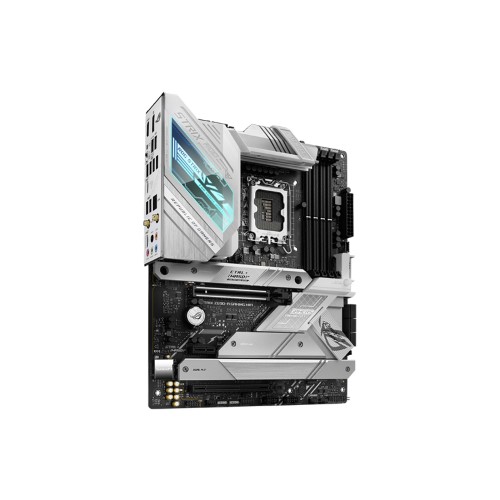

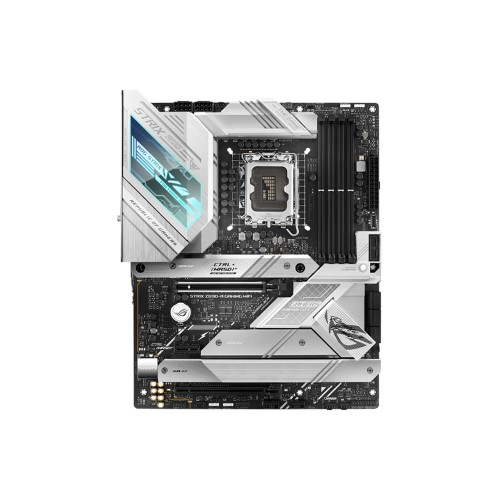

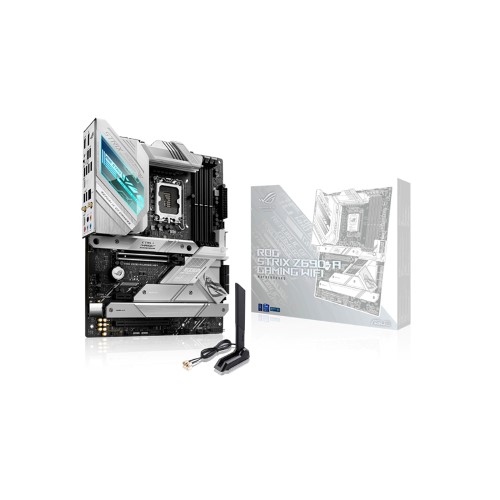

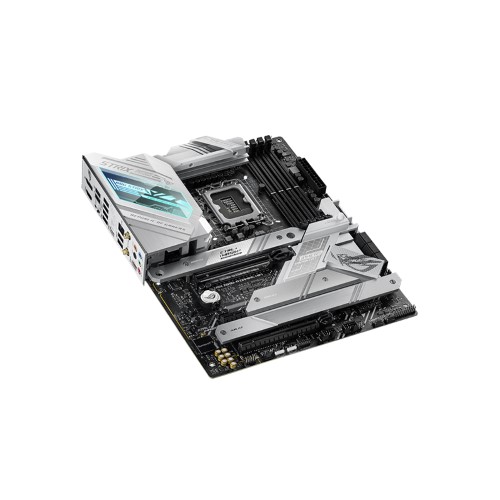

Asus ROG STRIX Z690-A GAMING WIFI DDR5 13th and 12th Gen ATX Motherboard

Asus ROG STRIX Z690-A GAMING WIFI 13th and 12th Gen ATX Motherboard

Supported CPU	Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
Chipset	Z690
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX (30.5cm x 24.4cm)
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot* Intel Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot
Type	DDR5
Slots	4 x DIMM
Supported Memory	6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Max Memory	196GB
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band
Supported Storage	Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports*** * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. *** RAID configuration is not supported on the SATA6G_E1-2 ports.
RAID	Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
Audio	5 x Audio jacks
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Graphics	1 x DisplayPort** 1 x HDMI*** ** Support 8K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1.
Special Features	Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers ASUS HYDRANODE - 1 x 12-1 pin Front Panel Audio header (AAFP) - 1 x Chassis fan support* (CHA_FAN1P) * Visit ASUS Website for the latest compatibility list.
Bundled Software	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Warranty	3 Years Brand Warranty.
