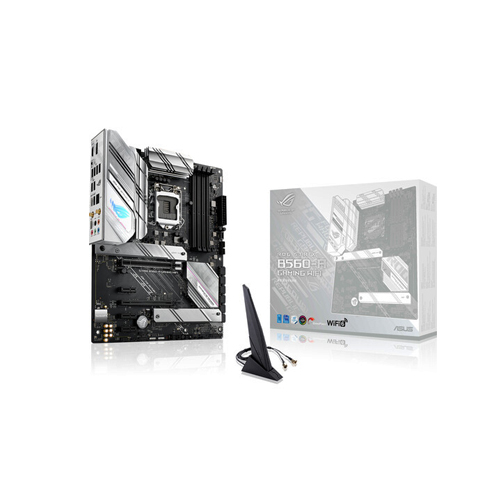

ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard

ASUS ROG STRIX B560-A GAMING WIFI 10th and 11th Gen ATX Motherboard

Specification

Supported CPU	Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel B560 Chipset
Memory	Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
Graphics	1 x DisplayPort 1.4 1 x HDMI 2.0 Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz
Slots	Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) Intel® 11th processors support PCIe 4.0 x16 mode Intel®10th processors support PCIe 3.0 x16 mode Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots
Supported Storage	Intel®11th Gen Processors TM.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports
LAN	Realtek 2.5Gb Ethernet ASUS LANGuard
Audio	Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear audio USB Type-C® port Premium Japanese audio capacitors Audio cover
USB Port	Rear USB: Total 9 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 port (2 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®) USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®) USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel heade 1 x Thunderbolt™ header 1 x S/PDIF Out header

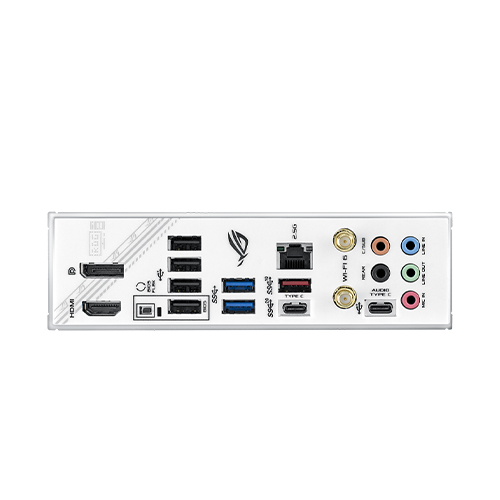

External I/O Ports	USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 2 x USB 3.2 Gen 1 port(s) (2 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®) 1 x HDMI™ port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
WiFi	Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later
DIMENSIONS	30.5cm x 24.4cm
Form Factor	ATX
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Warranty	3 Year

Description

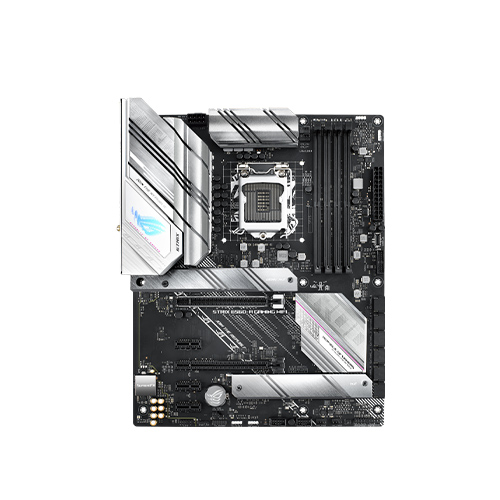

ASUS ROG STRIX B560-A Motherboard

ROG Strix B560-A Gaming WiFi delivers everything you would like to make a well-balanced gaming PC utilizing 11th Generation Intel Core processors. ASUS ROG STRIX B560-A's primed for the newest graphics cards, high-speed storage setups, and networking standards, then further boosted with AI-infused utilities that have trickled down from top-tier ROG motherboards to require performance well beyond the mainstream. As a final touch, futuristic aesthetics accented by customizable RGB lighting allow you to form the build uniquely yours. OPTIMUM II ROG Strix B560-A Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins. PCI-E 4.0-READY ROG Strix B560-A Gaming WiFi features two onboard M.2 slots, one among which supports the newest PCIe 4.0 standard to supply maximum storage flexibility and therefore the fastest data speeds available with the newest Intel processors. HEATSINKS Robust power delivery and comprehensive cooling ASUS ROG STRIX B560-A features to ensure exceptional performance, while AI-powered enhancements optimize network settings and improve in-game communication — all to assist you to maximize the complete potential of your rig. ASUS ROG STRIX B560-A motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS. INTEL WIFI 6 Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity, and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your ASUS ROG STRIX B560-A motherboard with ASUS WiFi 6 routers to completely experience the networking potential of WiFi 6. INTEL 2.5 GB ETHERNET ASUS ROG STRIX B560-A Onboard 2.5 Gb Ethernet gives your wired connection a lift, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming, and high-res video streaming.
