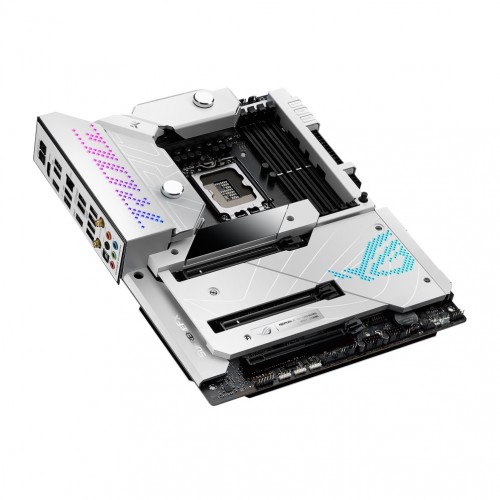

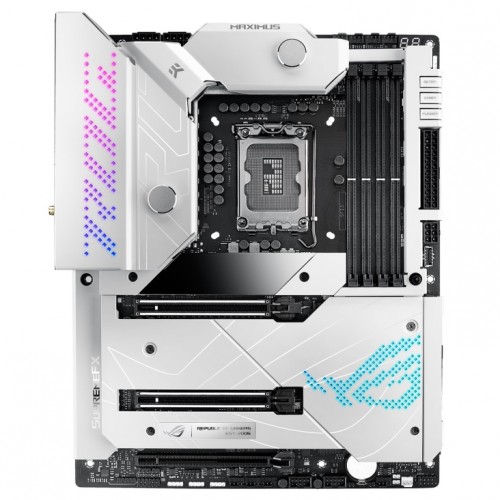

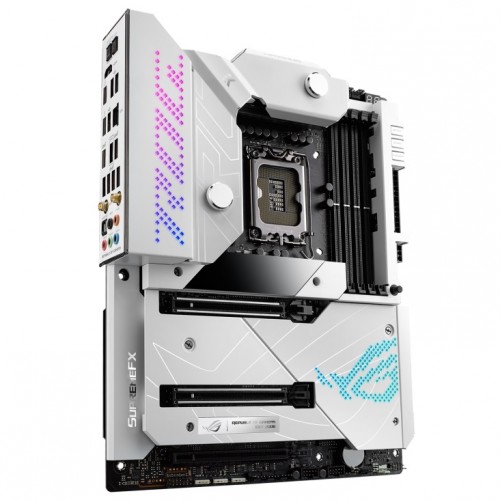

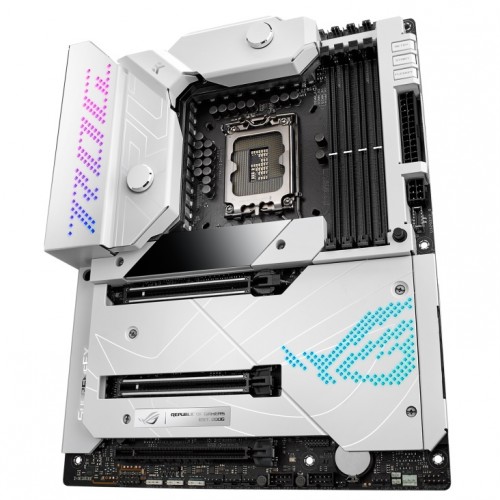

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Out Of Stock
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
0 reviews - Write a review
  • Price: 77,000৳
  • Regular Price: 82,460৳
  • Stock : Out Of Stock
  • Brand: Asus
  • Model: ROG Maximus Z690 Formula-1

    • Key Features

    • Model: ROG MAXIMUS Z690 FORMULA
    • LGA 1700 for 14th/13th/12th Gen Intel Core, Pentium Gold, & Celeron
    • 20+1 teamed power stages rated for 105 A
    • Onboard WiFi 6E, Marvell AQtion 10 Gb Ethernet
    • PCIe 5.0, dual Gen 4 M.2 onboard
    Out Of Stock
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard

    Specification

    Basic Information
    Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    Chipset Z690
    BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
    Form Factor ATX 30.5cm x 24.4cm
    Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors
    Expansion Slots
    PCI Intel 12th Gen Processors* 2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel Z690 Chipset 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
    M.2 Socket Supports 5 x M.2 slots
    Memory
    Type DDR5
    Slots 4 x DIMM
    Supported Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
    Maximum Memory 128GB
    Graphics
    Graphics 1 x HDMI port** 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
    Connector & Ports
    HDMI 1 x HDMI port
    USB (s) Rear USB: Total 12 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) 7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) Front USB: Total 9 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
    LAN Port (s) 1 x Marvell 10Gb Ethernet ASUS LANGuard
    Wireless Communication module Intel Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2
    Supported Storage Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110*** - Intel® 12th Gen processors support PCIe 5.0 x4 mode Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)*** Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** 6 x SATA 6Gb/s ports***** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
    Audio 1 x Front Panel Audio header (AAFP)
    Internal I/O Ports 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Intel® Thunderbolt 4 port (USB Type-C®) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x BIOS Switch button 2 x BCLK button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
    TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
    Others
    Special Features Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - CrossChill EK III - M.2 heatsink backplate - M.2 heatsinks - Steel backplate ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) OLED 2" Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 1 x 12-1 pin Front Panel Audio header (AAFP) - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)
    Bundled Software ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR WEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
    Warranty Information
    Manufacturing Warranty 3 years

    Description

    Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard

    The Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard supports Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors. It features ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration. It has 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes, and premium metallic capacitors. 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes, and premium metallic capacitors. It comes with onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard. It delivers the fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, and rear triple USB Type-C ports. It also has ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio. The Asus ROG MAXIMUS Z690 FORMULA comes with 3 years of warranty.

    Write a review

    Please login or register to review
    Tags: Z690 Series Motherboard , ASUS Z690 Series Motherboard

    What is the price of Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard in Bangladesh?

    The latest price of Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard in Bangladesh is 77,000৳ You can buy the Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
