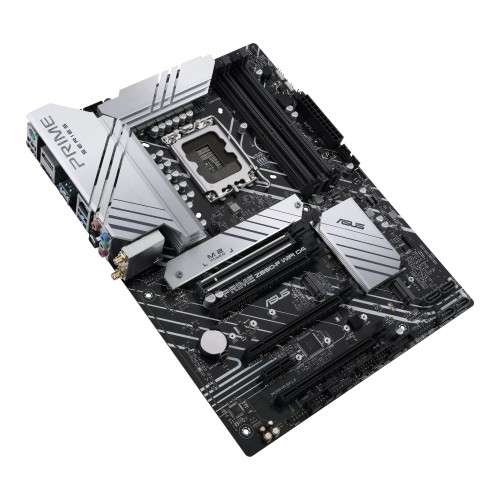

Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard

Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard
0 reviews - Write a review
  • Price: 27,600৳
  • Regular Price: 30,508৳
  • Stock : In Stock
  • Brand: Asus
  • Model: Asus Prime Z690-P
    • Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard

    Specification

    Basic Information
    Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    Chipset Z690
    BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
    Form Factor ATX 30.5cm x 23.4cm
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
    Expansion Slots
    PCI Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
    M.2 Socket Supports 3 x M.2 slots
    Memory
    Type DDR4
    Slots 4 x DIMM
    Supported Memory DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
    Maximum Memory 128GB
    Graphics
    Graphics 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
    Connector & Ports
    HDMI 1 x HDMI port
    Display Port (s) 1 x DisplayPort
    USB (s) Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
    LAN Port (s) 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
    Wireless Communication module Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
    Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
    Audio 1 x Front Panel Audio header (AAFP)
    Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header
    TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
    Others
    Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 headers
    Bundled Software ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
    Warranty Information
    Manufacturing Warranty 3 years

    Description

    Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard

    The Asus Prime Z690-P WIFI D4 Motherboard features Intel LGA 1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking The Asus Prime Z690-P WIFI D4 is supported with DDR4 memory, PCIe 5.0, Realtek 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. The Asus Prime Z690-P WIFI D4 offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The Asus Prime Z690-P WIFI D4 comes with 3 years of warranty.

    Write a review

    Please login or register to review
    Tags: Z690 Series Motherboard , ASUS Z690 Series Motherboard

    What is the price of Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard in Bangladesh?

    The latest price of Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard in Bangladesh is 27,600৳ You can buy the Asus Prime Z690-P WIFI D4 Intel 12th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
