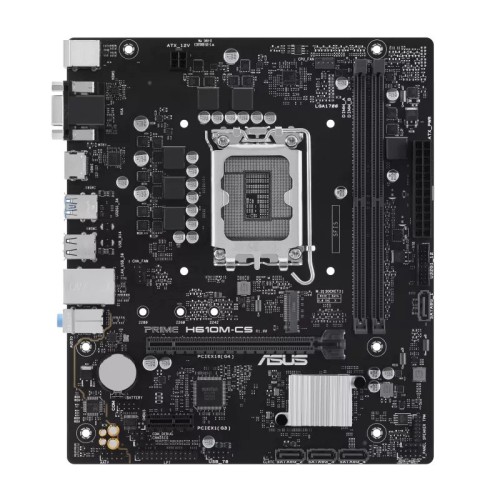

Asus PRIME H610M-CS DDR5 mATX Motherboard

Asus PRIME H610M-CS DDR5 mATX Motherboard
Asus PRIME H610M-CS DDR5 mATX Motherboard
Asus PRIME H610M-CS DDR5 mATX Motherboard
Save: 3,450৳
Asus PRIME H610M-CS DDR5 mATX Motherboard
Asus PRIME H610M-CS DDR5 mATX Motherboard
Asus PRIME H610M-CS DDR5 mATX Motherboard
Asus PRIME H610M-CS DDR5 mATX Motherboard
0 reviews - Write a review
  • Price: 11,350৳
  • Regular Price: 14,800৳
  • Stock : In Stock
  • Brand: Asus
  • Model: PRIME H610M-CS DDR5

    • Key Features

    • Model: PRIME H610M-CS DDR5
    • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
    • Supported Memory: 2 x DIMM, Max. 96GB, DDR5
    • Graphics Output: 1 x VGA, 1 x HDMI
    • Features: 1 x Realtek 1Gb Ethernet
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

    NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

    You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

    Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

    Specification

    Basic Information
    Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
    Supports up to Intel 65W CPU
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    Chipset Intel H610 Chipset
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Form Factor mATX Form Factor
    8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Expansion Slots
    PCI Intel Core Processors (14th & 13th & 12th Gen)
    1 x PCIe 4.0 x16 slot
    Intel H610 Chipset
    1 x PCIe 3.0 x1 slot
    M.2 Socket 1 x M.2 slot
    Memory
    Type DDR5
    Slots 2 x DIMM
    Supported Memory 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    Maximum Memory Max. 96GB
    Graphics
    Graphics Supports 4K@60Hz as specified in HDMITM 2.1.
    Connector & Ports
    HDMI 1 x HDMI port
    VGA (s) 1 x VGA port
    USB (s) Rear USB (Total 6 ports)
    2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 4 ports)
    1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
    1 x USB 2.0 header supports additional 2 USB 2.0 ports
    LAN Port (s) 1 x Realtek 1Gb Ethernet
    Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
    Intel H610 Chipset
    M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
    4 x SATA 6Gb/s ports
    Audio 3 x Audio jacks
    Internal I/O Ports Internal I/O Connectors:

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin Chassis Fan header
    Power related
    1 x 24-pin Main Power connector
    1 x 4-pin +12V Power connector
    Storage related
    1 x M.2 slot (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
    1 x USB 2.0 header supports additional 2 USB 2.0 ports
    Miscellaneous
    1 x Clear CMOS header
    1 x Chassis Intrusion header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x LPT header
    1 x Speaker header
    1 x 10-1 pin System Panel header

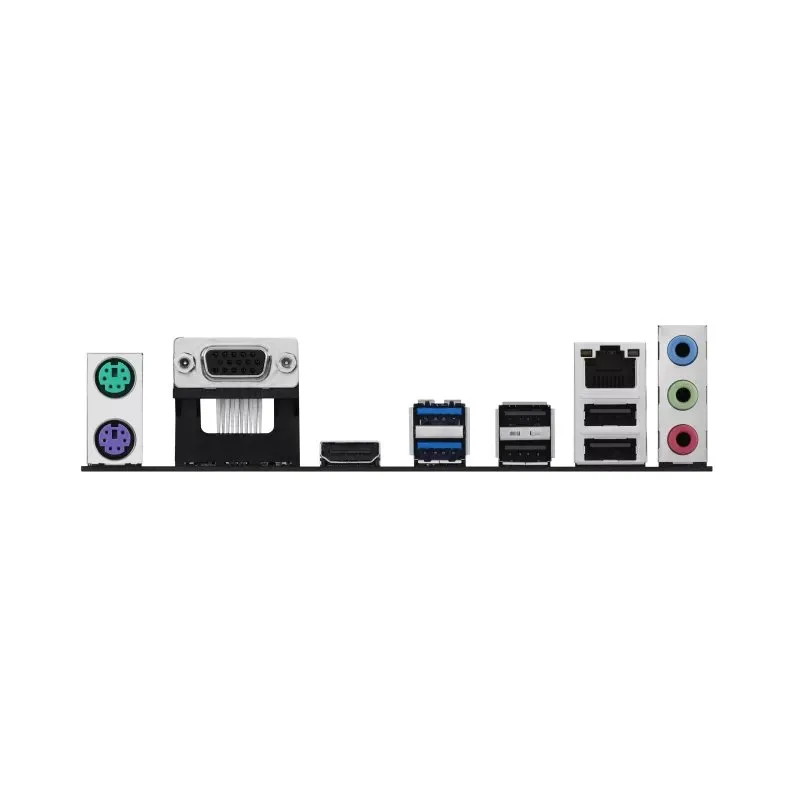

    Back Panel I/O Ports:

    2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x VGA port
    1 x HDMITM port
    1 x Realtek 1Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard (purple) port
    1 x PS/2 Mouse (green) port
    TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)
    Others
    Special Features ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core

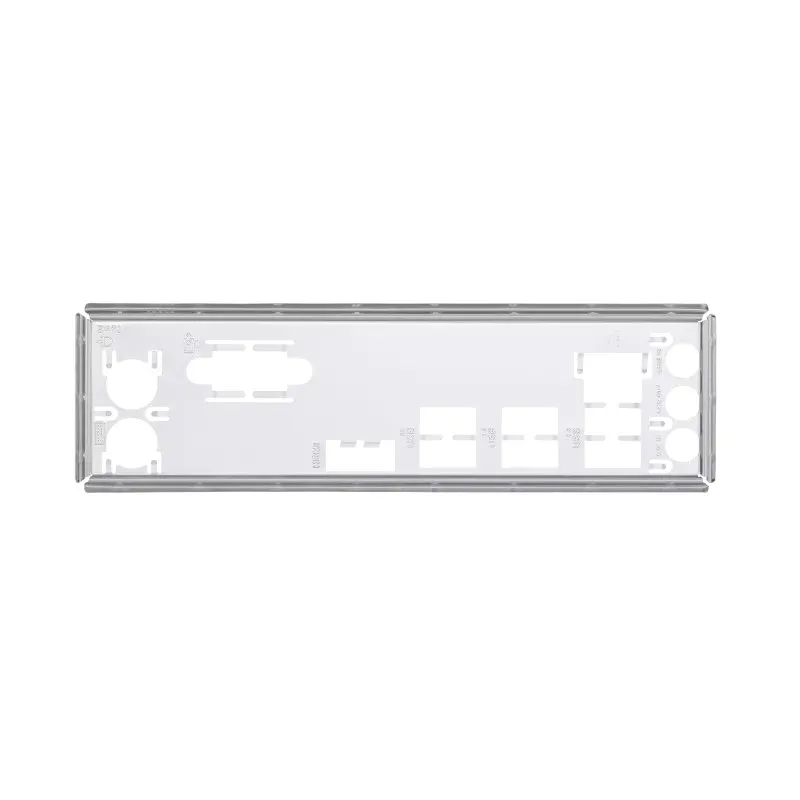

    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-Slot
    - Q-LED Core
    ASUS Thermal Solution
    - Aluminum heatsink design
    USBGuard
    Bundled Software ASUS Exclusive Software
    Armoury Crate
    AI Suite 3
    EPU
    DIGI+ VRM
    PC Cleaner
    ASUS CPU-Z
    Norton 360 for Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    Warranty Information
    Manufacturing Warranty 3 years warranty


    Asus PRIME H610M-CS DDR5 mATX Motherboard

    The Asus PRIME H610M-CS DDR5 mATX motherboard stands out for its robust feature set and versatility, making it a great choice for both new builds and upgrades. Built with an Intel LGA 1700 socket, it is fully compatible with the latest 13th and 12th Gen Intel processors, providing you with the flexibility to harness the power of cutting-edge technology for various computing needs. This motherboard is its comprehensive cooling solution. It includes a dedicated PCH (Platform Controller Hub) heatsink designed to manage heat efficiently and maintain stable performance during intense computing tasks. This cooling solution is crucial for ensuring that your system runs smoothly and reliably, even when under heavy load. The PRIME H610M-CS excels with its support for PCIe 4.0, which offers faster data transfer rates compared to previous generations, enabling quicker access to storage and peripherals. The motherboard also features a 32Gbps M.2 slot for high-speed SSDs, enhancing overall system responsiveness and boot times. For network connectivity, it includes Realtek 1 Gb Ethernet, which provides a stable and reliable internet connection, essential for both gaming and professional tasks. Additionally, it supports USB 3.2 Gen 1, allowing for high-speed data transfer and seamless connection of various peripherals. To ensure long-term durability and system protection, the PRIME H610M-CS incorporates Asus’s 5X Protection III technology. This advanced protection suite includes safeguards against overvoltage, electrostatic discharge (ESD), and other potential electrical issues. The motherboard's enhanced components and circuitry help prevent damage and ensure stable operation, contributing to a more reliable and secure computing experience. The Asus PRIME H610M-CS DDR5 mATX motherboard offers a well-rounded combination of performance, connectivity, and protection features, making it a solid foundation for any modern PC build or upgrade.
