ASUS PRIME H610M-A WIFI D4 12th Gen mATX Motherboard

ASUS PRIME H610M-A WIFI D4 12th Gen mATX Motherboard

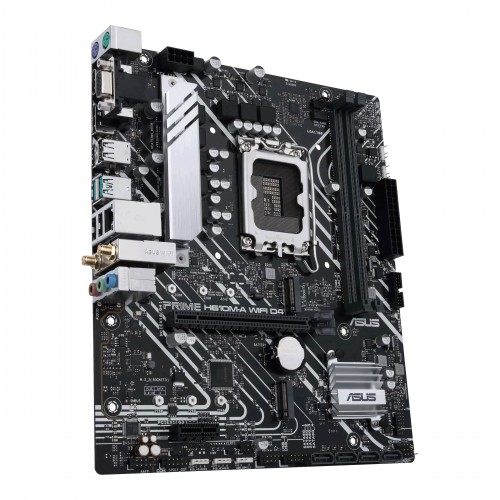

ASUS PRIME H610M-A WIFI D4 Motherboard Overview :

The ASUS PRIME H610M-A WIFI D4 supports 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard comes with an Enhanced power solution, so that 10 power stages, six-layer PCB, ProCool socket, military-grade TUF components, and Digi+ VRM for maximum durability. This 12th Gen motherboard offers 32Gbps M.2 slot, Intel 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, ASUS PRIME H610M-A WIFI D4 motherboards are the perfect foundation for your next high-core-count battle rig. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity. the new ASUS PRIME H610M-A WIFI D4 motherboards provide a high-performance gaming package with a long list of features with including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. The latest ASUS PRIME H610M-A WIFI D4 offers 03 years warranty.

ASUS PRIME H610M-A WIFI D4 Motherboard Specification :

Supported CPU	Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H610 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playbackAudio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 4.0 x16 slotIntel H610 Chipset 1 x PCIe 3.0 x1 slot
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	1 x DisplayPort** 1 x D-Sub port 1 x HDMI port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
D-Sub (s)	1 x D-Sub port
USB (s)	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet
Wireless Communication module	Wi-Fi 5 Wi-Fi 5 (802.11 a/b/g/n/ac) Supports 2.4/5GHz frequency band Bluetooth v5.0
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connectorStorage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	3 years
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/OASUS Q-Design - Q-DIMM - Q-SlotASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
