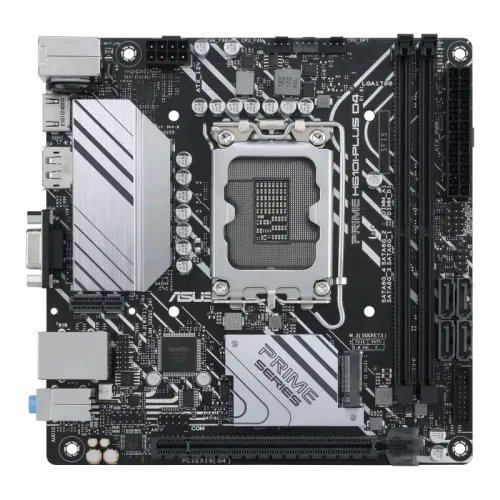

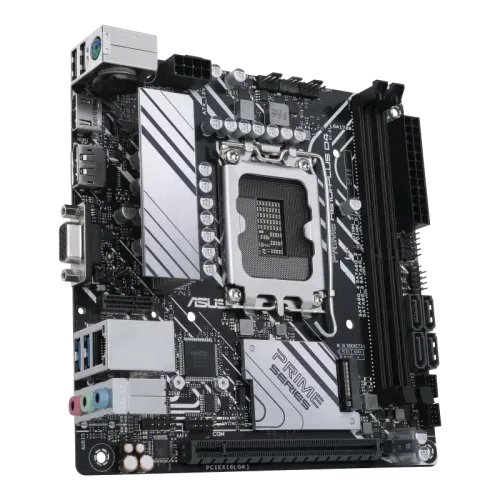

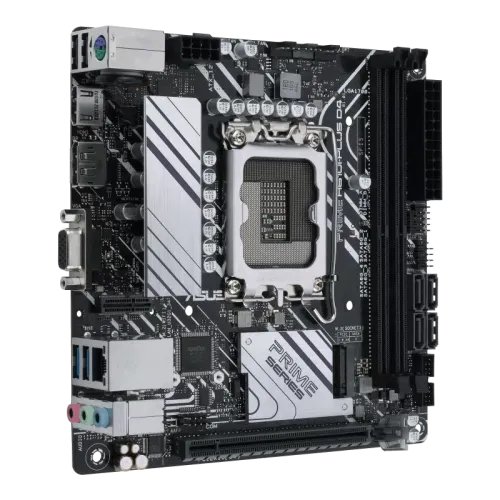

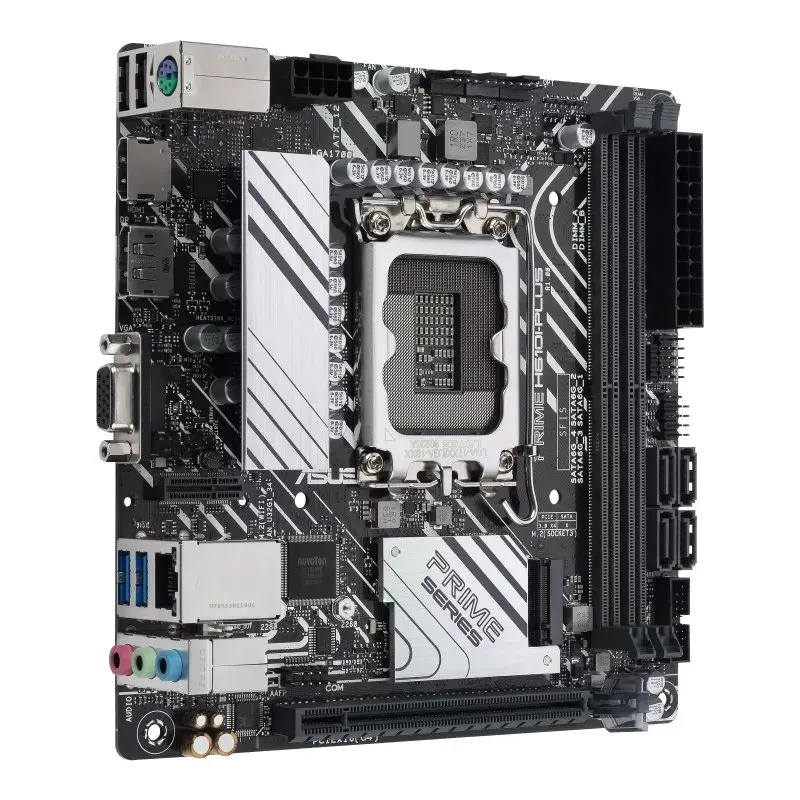

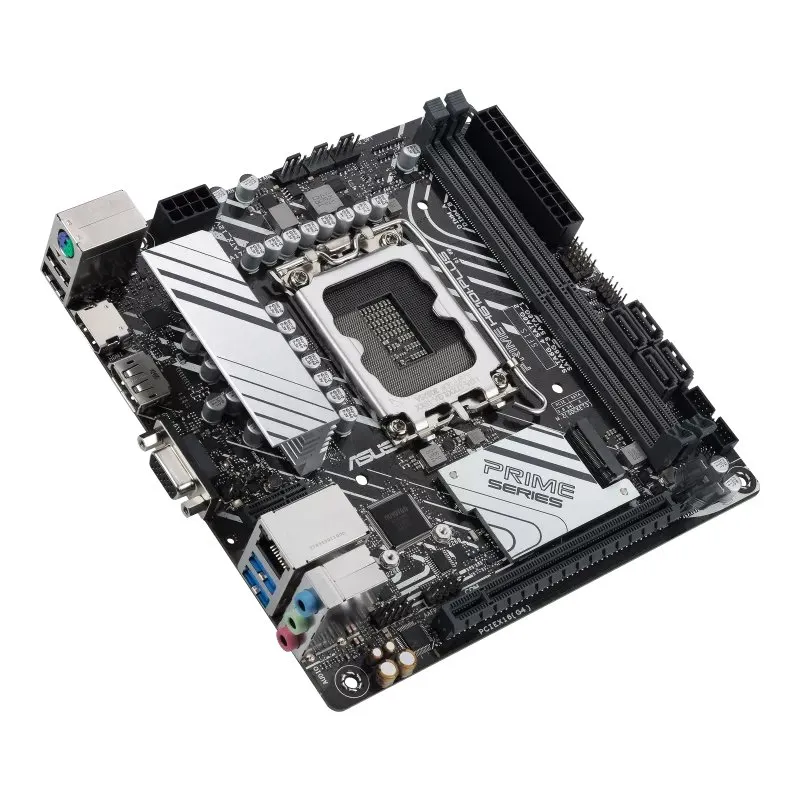

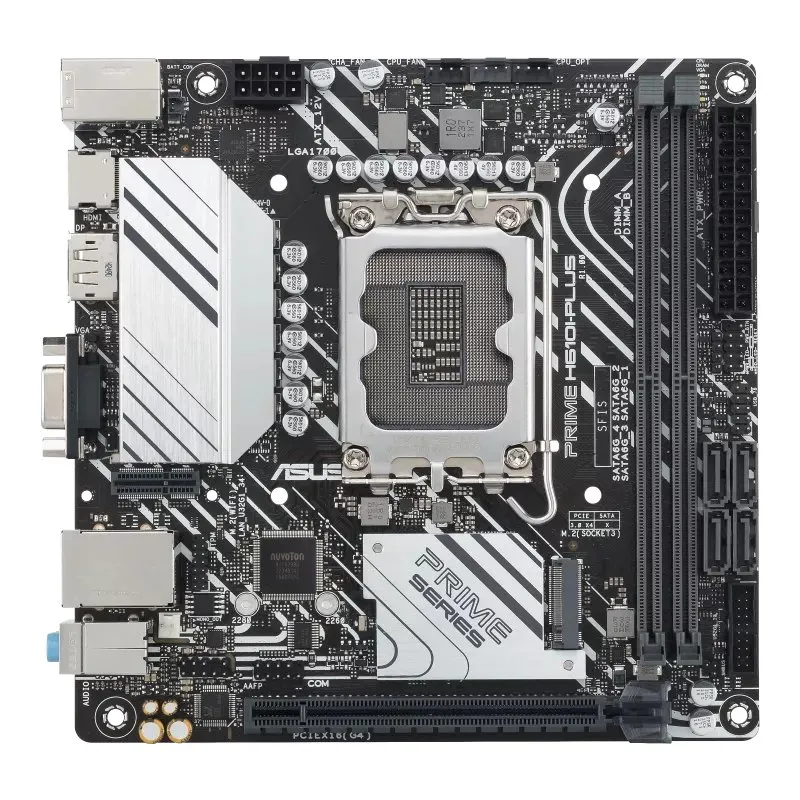

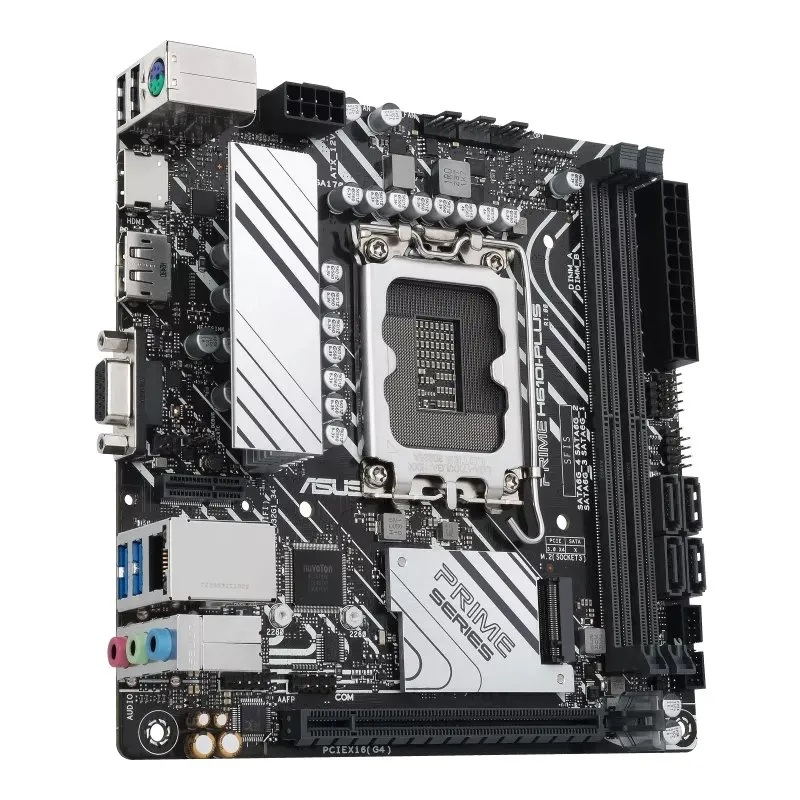

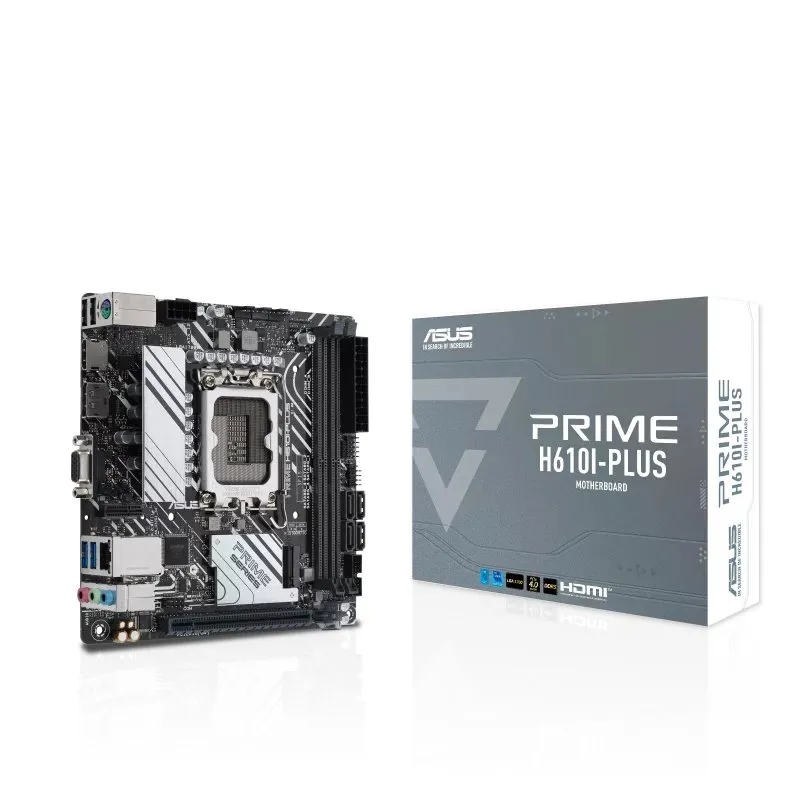

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard

Name: ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard
Brand: Asus
Price: 17500.00 BDT
Availability: InStock

Save: 1,750৳

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard

0 reviews - Write a review

Price: 17,500৳

Regular Price: 19,250৳

Stock : In Stock

Brand: Asus

Model: PRIME H610I-PLUS

Key Features

Model: PRIME H610I-PLUS
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB 3200
Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub
Features: 1 x Realtek 1Gb Ethernet

17,500৳

Cash Discount Price

Online / Cash Payment

3,702৳/month

Regular Price: 19,250৳

EMI Starting from 3,702৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H610 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot
M.2 Socket	1 x M.2 slots
Memory
Type	DDR5
Slots	2x DIMM
Supported Memory	5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 96GB
Graphics
Graphics	Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1

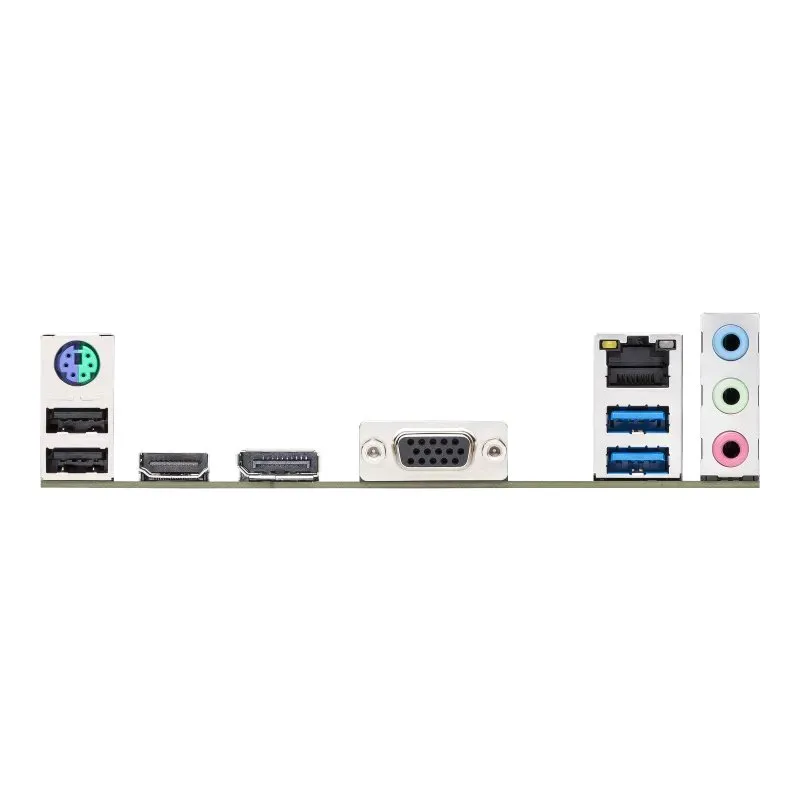

Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet port
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Audio	3x Audio jacks
Internal I/O Ports	Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Warranty Information
Manufacturing Warranty	3 years warranty

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard

The ASUS PRIME H610I-PLUS DDR5 is a compact and feature-rich Mini ITX motherboard designed for users seeking high performance in a small form factor. Based on the Intel H610 chipset, it supports the latest DDR5 memory technology, offering speeds up to 5600 MHz. Compatible with 14th, 13th, and 12th Gen Intel Core processors through its LGA 1700 socket, it provides a wide range of CPU options for various performance needs. The motherboard boasts an enhanced power solution with 5+1+1 DrMOS power stages, ensuring stable and efficient power delivery to the CPU and other critical components. Cooling is comprehensively managed through VRM and PCH heatsinks, complemented by Fan Xpert, ensuring the system stays cool under load. For connectivity, the motherboard includes a 32Gbps M.2 slot for high-speed storage solutions, Intel 1 Gb Ethernet for reliable network connectivity, and multiple USB 3.2 Gen 1 ports for fast data transfer and peripheral connectivity. Display options are versatile, with support for DisplayPort, HDMI, and D-Sub, catering to various monitor setups. Storage needs are met with SATA 6 Gbps ports, and additional peripheral connectivity is facilitated through a COM header and Mono-out header with Amp IC. The ASUS PRIME H610I-PLUS DDR5 also incorporates 5X Protection III, which includes multiple hardware safeguards to ensure all-around protection and durability, enhancing the longevity and reliability of the motherboard. This well-rounded motherboard combines cutting-edge technology with robust features, making it an excellent choice for building a compact yet powerful PC.

Reviews

What is the price of ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard in Bangladesh?

The latest price of ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard in Bangladesh is 17,500৳ You can buy the ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard at best price from our website or visit any of our showrooms.
